Track that can be the original to parallel tracks. More...

#include <C:/Trend/Development/Trax3/Code/trax/ParallelTrack.h>

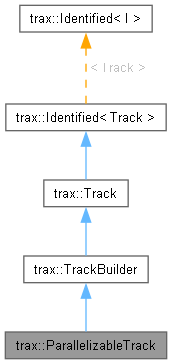

Inheritance diagram for trax::ParallelizableTrack:

[legend]

Classes
struct	Data

Public Member Functions
virtual std::shared_ptr< TrackBuilder >	AddParallel (const spat::Vector2D< Length > &shift, bool bTrackRelative)=0
	Adds a parallel to this track.
virtual void	RemoveParallel (const TrackBuilder &parallelTrack)=0
	Removes the parallel track with index idx.
virtual bool	IsParallel (const TrackBuilder &parallelTrack) const noexcept=0
virtual void	Clear ()=0
	Removes all parallel tracks.
virtual int	CountTracks () const =0
virtual int	ParallelIdx (const TrackBuilder &parallelTrack) const =0
virtual std::shared_ptr< TrackBuilder >	GetParallel (int idx) const =0
virtual const Data &	GetParallelData (int idx) const =0
virtual Length	ParallelParameterFrom (int idx, Length sOriginalParameter) const =0
virtual Length	OriginalParameterFrom (int idx, Length sParallelParameter) const =0
Public Member Functions inherited from trax::TrackBuilder
virtual const spat::Frame< Length, One > &	GetFrame () const noexcept=0
	Gets the pose of the track relative to its parent TrackCollection.
virtual const spat::Frame< Length, One > &	GetAbsoluteFrame () const noexcept=0
	Gets the frame relative to the Module, this track is attached to. I.e. the TrackCollection's transformation.
virtual void	Couple (std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > thisEnd, std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > othersEnd)=0
	Couple this track at thisend with pOtherTrack at othersend.
virtual void	DeCouple (EndType thisEnd=EndType::any, bool oneSided=false)=0
	Remove coupling from this end.
virtual void	Flip (bool flipAttached=false)=0
	Exchanges start and end of the track, but keeps geometry.
virtual void	CreateEndTransitionSignal (EndType atend)=0
	Creates an internal Signal at the end of the track, so that a SignalTarget receives a message if it enters the track.
virtual void	DestroyEndTransitionSignal (EndType atend)=0
	Destroys the internal transition Signal.
virtual void	SetFrame (const spat::Frame< Length, One > &frame) noexcept=0
	Sets the frame directly.
virtual void	SetFrame (const spat::Frame< Length, One > &start, Length s, bool bAllowTwistOffset=true)=0
	Sets the frame so that Transition(s,start) will give start.
virtual void	Attach (std::shared_ptr< const Curve > pCurve, common::Interval< Length > curveSegment={0_m,+infinite__length})=0
	Attaches a Curve to the track.
virtual void	Attach (std::pair< std::shared_ptr< const Curve >, common::Interval< Length > > curve)=0
	Attaches a Curve to the track.
virtual void	Attach (std::pair< std::unique_ptr< const Curve >, common::Interval< Length > > &curve)=0
	Attaches a Curve to the track.
virtual std::pair< std::shared_ptr< const Curve >, common::Interval< Length > >	DetachCurve () noexcept=0
	Detaches the Curve from the track.
virtual std::pair< std::shared_ptr< const Curve >, common::Interval< Length > >	GetCurve () const noexcept=0
virtual void	Attach (std::unique_ptr< RoadwayTwist > pTwist)=0
virtual std::unique_ptr< RoadwayTwist >	DetachTwist ()=0
	Detaches the current Twist from the track.
virtual RoadwayTwist &	GetTwist () const noexcept=0
virtual void	Attach (std::shared_ptr< Sensor > pSensor, const TrackLocation &tracklocation)=0
	Attaches a Sensor at the specified location to this track. If already attached, the Sensor will be detached from its previous location.
virtual bool	Attached (const Sensor &sensor, TrackLocation *pTrackLocation=nullptr) const =0
	Gets information about an attached Sensor.
virtual void	Detach (const Sensor &sensor) noexcept=0
	Detaches a Sensor from the track.
virtual std::shared_ptr< Sensor >	GetSensor (int idx) const noexcept=0
virtual int	CountSensors () const =0
virtual void	Attach (std::shared_ptr< Signal > pSignal, const common::Interval< Length > &trackRange)=0
	Attaches a Signal to the specified range to this track.
virtual void	Attach (std::shared_ptr< Signal > pSignal, const TrackLocation &location)=0
	Attaches a Signal to the specified location to this track.
virtual bool	Attached (const Signal &signal, TrackRange *pTrackRange=nullptr) const =0
	Gets information about an attached Signal.
virtual void	Detach (const Signal &signal)=0
	Detaches a Signal from the track and all adjacent tracks.
Public Member Functions inherited from trax::Track
virtual const char *	TypeName () const noexcept=0
virtual TrackType	GetTrackType () const noexcept=0
virtual std::shared_ptr< const Body >	GetBody () const noexcept=0
virtual bool	IsValid () const noexcept=0
virtual Length	GetLength () const noexcept=0
virtual common::Interval< Length >	Range () const noexcept=0
virtual bool	IsCoupled (EndType atend=EndType::any) const noexcept=0
virtual AnglePerLength	Curvature (Length s) const =0
virtual AnglePerLength	Torsion (Length s) const =0
virtual Angle	GetTwistValue (Length s) const =0
virtual AnglePerLength	GetTwistD1 (Length s) const =0
virtual bool	IsFlat () const noexcept=0
virtual spat::Vector< One >	LocalUp () const =0
	Gives the Curve's idiosyncratic up direction transformed by the track's frame. Some curves maintain some idea about where they have their upside, either because of their form (e.g Helix) or because it is extra defined (e.g. for Line). Some curves maintain no such notion (e.g. Cubic).
virtual void	TNBFrame (Length s, spat::Frame< Length, One > &frame) const =0
	Receives the TNB - Frame of the curve at the location.
virtual TrackEnd	TransitionEnd (EndType thisEnd) const noexcept=0
	Gives the Track coupled to this at the specified end.
virtual void	DoTrigger (const common::Interval< Length > &range, const Event &_event) const =0
virtual bool	DoSignal (const common::Interval< Length > &range, Orientation orientation, SignalTarget &signalTarget) const =0
virtual Signal *	GetSignal (const TrackLocation &loc) const noexcept=0
	Gets the first Signal in the direction given by loc.
virtual Connector *	GetConnector (EndType atend) const noexcept=0
	retreives a connector (e.g. a Switch) at the respective track end.
virtual Connector *	GetConnector (const Orientation &inDirection) const noexcept=0
	retrieves the next connector (e.g. a Switch) that can be found in the given direction.
virtual void	UserData (TrackUserData *pData) noexcept=0
	Sets a pointer to user provided data.
virtual TrackUserData *	UserData () const noexcept=0
virtual std::shared_ptr< const TrackBuilder >	This () const noexcept=0
	Gets a shared pointer to this.
virtual std::shared_ptr< TrackBuilder >	This () noexcept=0
virtual std::shared_ptr< const MovableTrack >	GetMovableTrack () const noexcept=0
virtual std::shared_ptr< MovableTrack >	GetMovableTrack () noexcept=0
virtual std::shared_ptr< const ParallelizableTrack >	GetParallelizableTrack () const noexcept=0
virtual std::shared_ptr< ParallelizableTrack >	GetParallelizableTrack () noexcept=0
virtual void	Transition (Length s, spat::Position< Length > &pos) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, spat::Vector< One > &tan) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, spat::VectorBundle< Length, One > &bundle) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, spat::VectorBundle2< Length, One > &bundle) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, spat::Frame< Length, One > &frame) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, TrackData< Real > &td, Real engine_meters_per_unit) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Reserve (common::Interval< Length > range, IDType forID)=0
	Reserves a parameter range on the track for a specified id.
virtual ReservationIterator	BeginReservations () const noexcept=0
virtual ReservationIterator	EndReservations () const noexcept=0
virtual void	DeleteReservation (common::Interval< Length > inRange, IDType forID=anyID) noexcept=0
	Deletes a reservation with specified ID, if it overlaps with the specified range.
virtual bool	IsReserved (common::Interval< Length > inRange, IDType forID=anyID) const noexcept=0
	Is here a reservation for the specified ID inside the range on the track?
virtual std::vector< Overlap >	Overlaps (IDType forID) const =0
	Finds overlapping areas for reservations.
Public Member Functions inherited from trax::Identified< Track >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Static Public Member Functions
static dclspc std::shared_ptr< ParallelizableTrack >	Make () noexcept
	Makes a ParallelizableTrack object.
Static Public Member Functions inherited from trax::TrackBuilder
static dclspc std::shared_ptr< TrackBuilder >	Make (TrackType type=TrackType::standard) noexcept
	Makes a standard Track object.

Additional Inherited Members
Public Types inherited from trax::Track
enum class	TrackType : char { unknown = -1 , none = 0 , standard , withGeoms , movable , movable_autoconnecting , parallel }
enum class	EndType : char { none = -1 , front = 0 , end = 1 , any }
	Designates one of the two ends of a track. More...
typedef std::pair< std::shared_ptr< Track >, EndType >	TrackEnd
typedef std::pair< std::shared_ptr< const Track >, const EndType >	cTrackEnd
using	Reservation = std::tuple<IDType,common::Interval<Length>>
	Reserves a parameter range on the track for a specified id.
using	ReservationIterator = std::vector<Reservation>::const_iterator
	Reserves a parameter range on the track for a specified id.

Detailed Description

Track that can be the original to parallel tracks.

Member Function Documentation

◆ AddParallel()

virtual std::shared_ptr< TrackBuilder > trax::ParallelizableTrack::AddParallel	(	const spat::Vector2D< Length > &	shift,
		bool	bTrackRelative )

pure virtual

Adds a parallel to this track.

Parameters

shift	the displacement of the parallel track.
bTrackRelative	Specifies whether the shift is meant relative to the track's twisted frame, or to a frame relative to the world's up direction.

Returns: A shared pointer to the newly created track

◆ Clear()

virtual void trax::ParallelizableTrack::Clear ( )

pure virtual

Removes all parallel tracks.

The call will also remove the tracks from any TrackCollection.

◆ CountTracks()

virtual int trax::ParallelizableTrack::CountTracks ( ) const

pure virtual

Returns: the number of parallel tracks.

◆ GetParallel()

virtual std::shared_ptr< TrackBuilder > trax::ParallelizableTrack::GetParallel ( int idx ) const

pure virtual

Returns: the parallel track with index idx or nullptr if idx is invalid.

◆ GetParallelData()

virtual const Data & trax::ParallelizableTrack::GetParallelData ( int idx ) const

pure virtual

Returns: a reference to the parallel's data for index idx.

Exceptions

std::invalid_argument if idx is out of range.

◆ IsParallel()

virtual bool trax::ParallelizableTrack::IsParallel ( const TrackBuilder & parallelTrack ) const

pure virtualnoexcept

Returns: true if the track is a parallel to this one. false if not.

◆ OriginalParameterFrom()

virtual Length trax::ParallelizableTrack::OriginalParameterFrom	(	int	idx,
		Length	sParallelParameter ) const

pure virtual

Returns: The parameter of the point on the original track, that corresponds with the point at sParallelParameter on the parallel track.

Exceptions

std::invalid_argument if idx is out of range.

◆ ParallelIdx()

virtual int trax::ParallelizableTrack::ParallelIdx ( const TrackBuilder & parallelTrack ) const

pure virtual

Returns: the index if the track is a parallel to this one. -1 if not.

◆ ParallelParameterFrom()

virtual Length trax::ParallelizableTrack::ParallelParameterFrom	(	int	idx,
		Length	sOriginalParameter ) const

pure virtual

Returns: The parameter of the point on the parallel track, that corresponds with the point at sOriginalParameter on the original track.

Exceptions

std::invalid_argument if idx is out of range.

◆ RemoveParallel()

virtual void trax::ParallelizableTrack::RemoveParallel ( const TrackBuilder & parallelTrack )

pure virtual

Removes the parallel track with index idx.

The call will also remove the track from any TrackCollection. It also invalidates all track indices bigger than the one for parallelTrack.

The documentation for this struct was generated from the following file:

C:/Trend/Development/Trax3/Code/trax/ParallelTrack.h

Classes

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ AddParallel()

◆ Clear()

◆ CountTracks()

◆ GetParallel()

◆ GetParallelData()

◆ IsParallel()

◆ OriginalParameterFrom()

◆ ParallelIdx()

◆ ParallelParameterFrom()

◆ RemoveParallel()
