spat::Vector< Valtype > Struct Template Reference

Implements a 3D - vector in cartesian coordinates. More...

#include <C:/Trend/Development/Trax3/Code/spat/Vector.h>

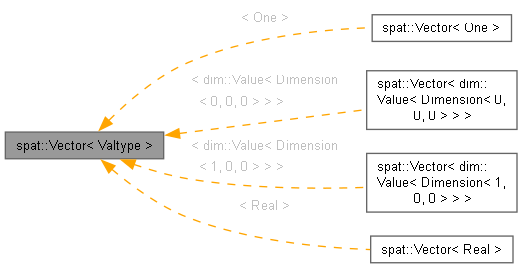

Inheritance diagram for spat::Vector< Valtype >:

Public Types
enum class	specials { null = -1 , ex = 0 , ey = 1 , ez = 2 }
	Identifiers for special vectors. More...
typedef Valtype	value_type
using	AngleType = decltype(Valtype{}/Valtype{})

Public Member Functions
Valtype *	ptr () noexcept
	Pointer accessor for direct copying.
const Valtype *	ptr () const noexcept
	Pointer accessor for direct copying.
Vector &	Init (specials s=specials::ex) noexcept
	Initializes the vector.
constexpr bool	Is (specials s) const noexcept
	Test the vector to mach a special vector exactly.
constexpr Valtype	Length () const noexcept
	Calculates the length of the vector.
auto	Normalize () noexcept -> decltype(Valtype{}/Valtype{})
	Normalizes the vector to length 1.
constexpr bool	IsNormal (Valtype epsilon_length=2 *std::numeric_limits< Valtype >::epsilon()) const noexcept
Vector &	Rotate (const Vector< AngleType > &r, AngleType angle) noexcept
	Rotate this vector around unit vector r with angle in radiants.
Vector &	Rotate (const Vector< AngleType > &r) noexcept
	Rotate this vector around r with angle r.Length() in radiants.
template<typename Valtype2>
constexpr Vector< Valtype >	ParallelProjection (const Vector< Valtype2 > &normal) const noexcept
	Part of this Vector which is parallel to normal.
template<typename Valtype2>
constexpr Vector< Valtype >	OrthogonalProjection (const Vector< Valtype2 > &normal) const noexcept
	Calculate part of this tVector wich is orthogonal to normal.
constexpr bool	Equals (const Vector &v, Valtype epsilon=Valtype{0}) const noexcept
	Comparison within some range.
Vector &	Round (int toDigit) noexcept
	Rounds the vectors values to a certain digit after the point.
template<typename Valtype2>
Vector< Valtype > &	operator= (const Valtype2 *pVal) noexcept
template<typename Valtype2>
Vector< Valtype > &	operator= (const Vector2D< Valtype2 > &vector) noexcept
Construction
Parameters dx cartesian x component. dy cartesian y component. dz cartesian z component. s One of the specials values. Vector will be initialized accordingly. p Position for explicit conversion. pVal Array of three values.
constexpr	Vector () noexcept=default
	Does not initialize the members.
constexpr	Vector (Valtype dx, Valtype dy, Valtype dz) noexcept
	Does not initialize the members.
constexpr	Vector (specials s) noexcept
	Does not initialize the members.
	Vector (const Position< Valtype > &p)=delete
	Conversions between Position and Vector shouldn't be necessary.
constexpr	Vector (const Vector2D< Valtype > &v2D) noexcept
	Does not initialize the members.
template<typename Valtype2>
	Vector (const Valtype2 *pVal) noexcept
	Does not initialize the members.
Assignment
Parameters pVal Array of three values. vector source vector
template<typename Valtype2>
Vector &	operator= (const Valtype2 *pVal) noexcept
template<typename Valtype2>
Vector &	operator= (const Vector2D< Valtype2 > &vector) noexcept
Subscripting.
Returns Reference to value.
const Valtype &	operator[] (size_t index) const
Valtype &	operator[] (size_t index)
AircraftPrincipalAxes
Calculate the vector as normal vector from Yaw and Pitch. If the dx,dy are small the yaw will be calculated to be zero. Parameters yaw The Yaw angle. The angle in the plane. pitch The Pitch angle. The angle vertical to a plane. epsilon length in x/y direction to ignore for yaw. Returns yaw, pitch, roll in a Position struct.
Vector &	AircraftPrincipalAxes (AngleType yaw, AngleType pitch)
Vector &	AircraftPrincipalAxes (const Position2D< AngleType > &angles)
Position2D< AngleType >	AircraftPrincipalAxes (Valtype epsilon=std::numeric_limits< Valtype >::epsilon()) const

Public Attributes
Valtype	dx
	cartesian x component.
Valtype	dy
	cartesian y component.
Valtype	dz
	cartesian z component.

Detailed Description

template<typename Valtype>
struct spat::Vector< Valtype >

Implements a 3D - vector in cartesian coordinates.

Specifies the coordinates of a direction in 3D space. For points, like e.g. vertices, use the Position type.

Member Enumeration Documentation

specials

template<typename Valtype>

enum class spat::Vector::specials

strong

Identifiers for special vectors.

Enumerator
null	Vector with all parameters zeroed.
ex	Unit vector in x-direction.
ey	Unit vector in y-direction.
ez	Unit vector in z-direction.

Member Function Documentation

Equals()

template<typename Valtype>

bool spat::Vector< Valtype >::Equals ( const Vector< Valtype > & v, Valtype epsilon = Valtype{0} ) const

constexprnoexcept

Comparison within some range.

The area within two vectors regarded as equal is a sphere with radius epsilon. In case of a unit vector epsilon equals the angle between the two vectors, as long as epsilon is small.

Parameters

v	Vector to compare with.
epsilon	Distance <= wich two vectors are regarded as equal.

Returns

True if positions are nearby each other, else false.

Init()

template<typename Valtype>

Vector< Valtype > & spat::Vector< Valtype >::Init ( specials s = specials::ex )

inlinenoexcept

Initializes the vector.

Parameters

s	Type of vector to initialize with.

Is()

template<typename Valtype>

bool spat::Vector< Valtype >::Is ( specials s ) const

constexprnoexcept

Test the vector to mach a special vector exactly.

Parameters

s	special type of vector to check.

IsNormal()

template<typename Valtype>

bool spat::Vector< Valtype >::IsNormal ( Valtype epsilon_length = 2*std::numeric_limits<Valtype>::epsilon() ) const

inlineconstexprnoexcept

Returns

true if the length of the vectr is 1 within the limits of epsilon.

Length()

template<typename Valtype>

Valtype spat::Vector< Valtype >::Length ( ) const

inlineconstexprnoexcept

Calculates the length of the vector.

Returns

Length of vector.

Normalize()

template<typename Valtype>

auto spat::Vector< Valtype >::Normalize ( ) ->decltype(Valtype{}/Valtype{})

inlinenoexcept

Normalizes the vector to length 1.

Returns

Previous length.

OrthogonalProjection()

template<typename Valtype>

template<typename Valtype2>

Vector< Valtype > spat::Vector< Valtype >::OrthogonalProjection ( const Vector< Valtype2 > & normal ) const

inlineconstexprnoexcept

Calculate part of this tVector wich is orthogonal to normal.

Parameters

normal

Reference vector to meassure this against. Must not be 0.

Returns

A vector orthogonal to normal.

ParallelProjection()

template<typename Valtype>

template<typename Valtype2>

Vector< Valtype > spat::Vector< Valtype >::ParallelProjection ( const Vector< Valtype2 > & normal ) const

inlineconstexprnoexcept

Part of this Vector which is parallel to normal.

Parameters

normal

Reference vector to meassure this against. Must not be 0.

Returns

A vector parallel to normal.

---

The documentation for this struct was generated from the following files:

• C:/Trend/Development/Trax3/Code/spat/Box.h
• C:/Trend/Development/Trax3/Code/spat/Vector.h
