spat::Vector2D< Valtype > Struct Template Reference

Implements a 2D - vector in cartesian coordinates. More...

#include <C:/Trend/Development/Trax3/Code/spat/Vector2D.h>

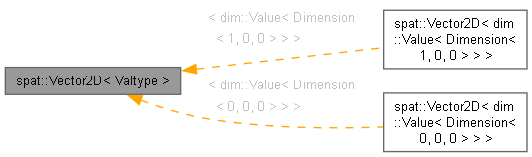

Inheritance diagram for spat::Vector2D< Valtype >:

Public Types
enum class	specials { null = -1 , ex = 0 , ey = 1 }
	Identifiers for special vectors. More...
typedef Valtype	value_type

Public Member Functions
Vector2D &	Init (specials s=specials::ex) noexcept
	Initializes the Vector2D.
constexpr bool	Is (specials s) const noexcept
	Test the Vector2D to mach a special Vector2D exactly.
constexpr Valtype	Length () const noexcept
	Calculates the length of the Vector2D.
auto	Normalize () noexcept -> decltype(Valtype{}/Valtype{})
template<typename Valtype2>
Vector2D &	Rotate (Valtype2 angle) noexcept
	Rotate this vector with angle in radiants.
constexpr Vector2D	ParallelProjection (const Vector2D &normal) const noexcept
	Part of this tVector wich is parallel to normal.
constexpr Vector2D	OrthogonalProjection (const Vector2D &normal) const noexcept
	Calculate part of this tVector wich is orthogonal to normal.
constexpr bool	Equals (const Vector2D &v, Valtype epsilon=0) const noexcept
	Comparison within some range. The area within two vectors regarded as equal is a sphere with radius epsilon.
template<typename Valtype2>
Vector2D< Valtype > &	operator= (const Vector< Valtype2 > &v) noexcept
template<typename Valtype2>
Vector2D< Valtype > &	Rotate (Valtype2 angle) noexcept
Construction
Parameters dx cartesian x component. dy cartesian y component. s p pVal
constexpr	Vector2D () noexcept=default
	Does not initialize the members.
constexpr	Vector2D (Valtype dx, Valtype dy) noexcept
	Does not initialize the members.
constexpr	Vector2D (specials s) noexcept
	Does not initialize the members.
	Vector2D (const Position2D< Valtype > &p) noexcept=delete
	Conversions between Position2D and Vector2D shouldn't be necessary.
constexpr	Vector2D (const Vector< Valtype > &v) noexcept
	Does not initialize the members.
template<typename Valtype2>
	Vector2D (const Valtype2 *pVal) noexcept
	Does not initialize the members.
Assignment
Parameters vector source vector
template<typename Valtype2>
Vector2D &	operator= (const Vector< Valtype2 > &vector) noexcept
Subscripting.
Returns Reference to value.
const Valtype &	operator[] (size_t index) const
Valtype &	operator[] (size_t index)

Public Attributes
Valtype	dx
	cartesian x component.
Valtype	dy
	cartesian y component.

Detailed Description

template<typename Valtype>
struct spat::Vector2D< Valtype >

Implements a 2D - vector in cartesian coordinates.

Specifies the coordinates of a direction in 2D space. For points, like e.g. vertices, use the Position2D type.

Member Enumeration Documentation

specials

template<typename Valtype>

enum class spat::Vector2D::specials

strong

Identifiers for special vectors.

Enumerator
null	Vector with all parameters zeroed.
ex	Unit vector in x-direction.
ey	Unit vector in y-direction.

Member Function Documentation

Equals()

template<typename Valtype>

bool spat::Vector2D< Valtype >::Equals ( const Vector2D< Valtype > & v, Valtype epsilon = 0 ) const

constexprnoexcept

Comparison within some range. The area within two vectors regarded as equal is a sphere with radius epsilon.

Parameters

v	Vector2D to compare with.
epsilon	Distance <= wich two vectors are regarded as equal.

Returns

True if positions are nearby each other, else false.

Init()

template<typename Valtype>

Vector2D< Valtype > & spat::Vector2D< Valtype >::Init ( specials s = specials::ex )

noexcept

Initializes the Vector2D.

Parameters

s	Type of Vector2D to initialize with.

Length()

template<typename Valtype>

Valtype spat::Vector2D< Valtype >::Length ( ) const

inlineconstexprnoexcept

Calculates the length of the Vector2D.

Returns

Length of Vector2D.

Normalize()

template<typename Valtype>

auto spat::Vector2D< Valtype >::Normalize ( ) ->decltype(Valtype{}/Valtype{})

inlinenoexcept

Normalizes the Vector2D to length 1.

Returns

Previous length.

OrthogonalProjection()

template<typename Valtype>

Vector2D< Valtype > spat::Vector2D< Valtype >::OrthogonalProjection ( const Vector2D< Valtype > & normal ) const

inlineconstexprnoexcept

Calculate part of this tVector wich is orthogonal to normal.

Parameters

normal

Reference vector to meassure this against. Must not be 0.

Returns

A vector orthogonal to normal.

ParallelProjection()

template<typename Valtype>

Vector2D< Valtype > spat::Vector2D< Valtype >::ParallelProjection ( const Vector2D< Valtype > & normal ) const

inlineconstexprnoexcept

Part of this tVector wich is parallel to normal.

Parameters

normal

Reference vector to meassure this against. Must not be 0.

Returns

A vector parallel to normal.

---

The documentation for this struct was generated from the following files:

• C:/Trend/Development/Trax3/Code/spat/Matrix.h
• C:/Trend/Development/Trax3/Code/spat/Vector2D.h
