spat::Position< Valtype > Struct Template Reference

Implements a 3D - position in cartesian coordinates. More...

#include <C:/Trend/Development/Trax3/Code/spat/Position.h>

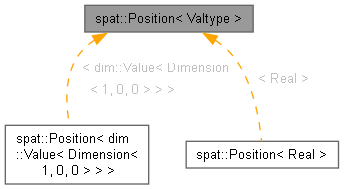

Inheritance diagram for spat::Position< Valtype >:

Public Types
typedef Valtype	value_type

Public Member Functions
Valtype *	ptr () noexcept
	Pointer accessor for direct copying.
const Valtype *	ptr () const noexcept
	Pointer accessor for direct copying.
Position &	Init () noexcept
	Initialisation to origin.
Position &	Transport (const Vector< Valtype > &v) noexcept
	Moves the position by v.
template<typename Valtype2>
Position &	Rotate (const VectorBundle< Valtype, Valtype2 > &axis) noexcept
	Rotates a position by axis (length of axis.T make angle in radints).
template<typename Valtype2>
Position &	Rotate (const VectorBundle< Valtype, Valtype2 > &axis, Valtype2 angle) noexcept
	Rotates a position by axis and angle in radiants.
constexpr bool	Equals (const Position &p, Valtype epsilon=Valtype{0}) const noexcept
	Comparison within some range. The area within two positions regarded as equal is a sphere with radius epsilon.
Position &	Round (int toDigit) noexcept
	Rounds the positions values to a certain digit after the point.
template<typename Valtype2>
Position< Valtype > &	operator= (const Valtype2 *pVal) noexcept
template<typename Valtype2>
Position< Valtype > &	Rotate (const VectorBundle< Valtype, Valtype2 > &axis) noexcept
template<typename Valtype2>
Position< Valtype > &	Rotate (const VectorBundle< Valtype, Valtype2 > &axis, Valtype2 angle) noexcept
Construction
Parameters x cartesian x coordinate. y cartesian y coordinate. z cartesian z coordinate. v Vector for explicit conversion. p2d initializes x, y. z gets set to zero. pVal Array of three values. sp Spherical coordinates will get transformed to cartesian.
constexpr	Position () noexcept=default
	Does not initialize the members.
constexpr	Position (Valtype x, Valtype y, Valtype z) noexcept
	Does not initialize the members.
	Position (const Vector< Valtype > &v)=delete
	Conversions between Vector and Position shouldn't be necessary and if needed anyhow explicitly specified.
template<typename Valtype2>
constexpr	Position (const VectorBundle< Valtype, Valtype2 > &b) noexcept
	Does not initialize the members.
constexpr	Position (const Position2D< Valtype > &p) noexcept
	Does not initialize the members.
template<typename Valtype2>
constexpr	Position (const PositionH< Valtype2 > &pos) noexcept
	Does not initialize the members.
template<typename Valtype2>
	Position (const Valtype2 *pVal) noexcept
	Does not initialize the members.
Assignment
Parameters p2d initializes x, y. z gets set to zero. pVal Array of three values. sp Spherical coordinates will get transformed to cartesian.
Position &	operator= (const Position2D< Valtype > &p2d) noexcept
template<typename Valtype2>
Position &	operator= (const Valtype2 *pVal) noexcept
Subscripting.
Returns Reference to value.
const Valtype &	operator[] (size_t index) const
Valtype &	operator[] (size_t index)

Public Attributes
Valtype	x
	cartesian x coordinate.
Valtype	y
	cartesian y coordinate.
Valtype	z
	cartesian z coordinate.

Detailed Description

template<typename Valtype>
struct spat::Position< Valtype >

Implements a 3D - position in cartesian coordinates.

Specifies the coordinates of a point in 3D space. For Vectors, like e.g. surface normals, use the Vector type.

Member Function Documentation

Equals()

template<typename Valtype>

bool spat::Position< Valtype >::Equals ( const Position< Valtype > & p, Valtype epsilon = Valtype{0} ) const

inlineconstexprnoexcept

Comparison within some range. The area within two positions regarded as equal is a sphere with radius epsilon.

Parameters

p	Position to compare to.
epsilon	Distance <= wich two positions are regarded as equal.

Rotate() [1/2]

template<typename Valtype>

template<typename Valtype2>

Position & spat::Position< Valtype >::Rotate ( const VectorBundle< Valtype, Valtype2 > & axis )

noexcept

Rotates a position by axis (length of axis.T make angle in radints).

Template Parameters

Valtype2

template parameter of axis.T

Parameters

axis	rotation axis

Rotate() [2/2]

template<typename Valtype>

template<typename Valtype2>

Position & spat::Position< Valtype >::Rotate ( const VectorBundle< Valtype, Valtype2 > & axis, Valtype2 angle )

noexcept

Rotates a position by axis and angle in radiants.

Template Parameters

Valtype2

template parameter of axis.T and angle

Parameters

axis	rotation axis
angle	in radiants

---

The documentation for this struct was generated from the following files:

• C:/Trend/Development/Trax3/Code/spat/Box.h
• C:/Trend/Development/Trax3/Code/spat/Position.h
