trax::Sensor Struct Reference

A Sensor can get attached to a track and be triggerd when a Location runs over it. More...

#include <C:/Trend/Development/Trax3/Code/trax/Sensor.h>

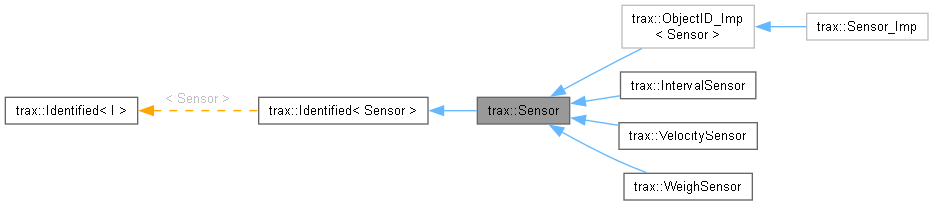

Inheritance diagram for trax::Sensor:

Public Member Functions
virtual const char *	TypeName () const noexcept=0
virtual void	Trigger (const Event &_event)=0
	Triggers this Sensor.
virtual TrackBuilder *	TrackAttached () const =0
virtual void	Attach (TrackBuilder *pTrackBuilder)=0
	Attach the pointer to the track to the sensor.
virtual Jack &	JackOnTrigger ()=0
	Gets a Jack that pulses its Plug if the sensor is triggering.
virtual void	RegisterSockets (SocketRegistry &modul)=0
	Registers all the Plugs with the module and supplies the Jacks with plug ids for connecting.
virtual void	UnregisterSockets (SocketRegistry &modul)=0
	Removes all references to Plugs and Jacks from the module.
Public Member Functions inherited from trax::Identified< Sensor >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Static Public Member Functions
static dclspc std::unique_ptr< Sensor >	Make () noexcept
	Makes a Sensor object that triggers on all events.

Detailed Description

A Sensor can get attached to a track and be triggerd when a Location runs over it.

Member Function Documentation

Attach()

virtual void trax::Sensor::Attach ( TrackBuilder * pTrackBuilder )

pure virtual

Attach the pointer to the track to the sensor.

This message is called during attachement and detachment of a sensor. Never call it directly; implement it for user sensors.

Implemented in trax::Sensor_Imp.

JackOnTrigger()

virtual Jack & trax::Sensor::JackOnTrigger ( )

pure virtual

Gets a Jack that pulses its Plug if the sensor is triggering.

Implemented in trax::Sensor_Imp.

RegisterSockets()

virtual void trax::Sensor::RegisterSockets ( SocketRegistry & modul )

pure virtual

Registers all the Plugs with the module and supplies the Jacks with plug ids for connecting.

Implemented in trax::Sensor_Imp.

TrackAttached()

virtual TrackBuilder * trax::Sensor::TrackAttached ( ) const

pure virtual

Returns

Pointer to the track this Sensor is attached to, or nullptr, if not attached.

Implemented in trax::Sensor_Imp.

Trigger()

virtual void trax::Sensor::Trigger ( const Event & _event )

pure virtual

Triggers this Sensor.

Triggering means to pulse a registered Socket if a match between the Event and the sensor's fiter settings is found.

Parameters

_event

An Event object that is used to filter wether the sensor should actually trigger.

Implemented in trax::Sensor_Imp.

TypeName()

virtual const char * trax::Sensor::TypeName ( ) const

pure virtualnoexcept

Returns

the name for the object type that implements this interface.

Implemented in trax::Sensor_Imp.

UnregisterSockets()

virtual void trax::Sensor::UnregisterSockets ( SocketRegistry & modul )

pure virtual

Removes all references to Plugs and Jacks from the module.

Implemented in trax::Sensor_Imp.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/Sensor.h
