trax::Plug Struct Reference

A Plug of some object can get plugged into a jack of some object, specific to a certain event. More...

#include <C:/Trend/Development/Trax3/Code/trax/Plug.h>

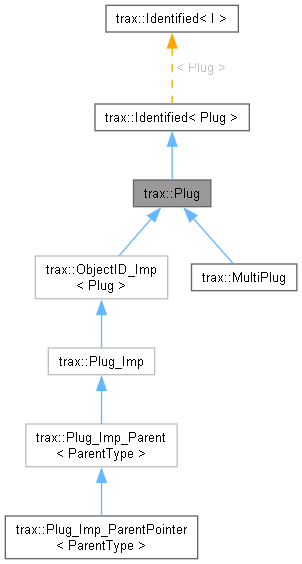

Inheritance diagram for trax::Plug:

Public Member Functions
virtual const char *	TypeName () const noexcept=0
virtual Jack *	Plugged () const noexcept=0
	Is this Plug already plugged into a jack?
virtual bool	IsCyclic () const noexcept=0
virtual const Plug &	Tail () const =0
	receives the tail (last element) of a Plug chain.
virtual Plug &	Tail ()=0
	receives the tail (last element) of a Plug chain.
virtual Jack &	JackOnPulse () noexcept=0
	Get a Jack that triggers a pulse if the Plug receives a pulse.
virtual const Jack &	JackOnPulse () const noexcept=0
	Get a Jack that triggers a pulse if the Plug receives a pulse.
virtual PlugEnumerator &	Parent () const noexcept=0
virtual void	Remove () noexcept=0
Public Member Functions inherited from trax::Identified< Plug >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Protected Member Functions
virtual void	Pulse (bool) noexcept
virtual void	Release () noexcept
virtual void	ConnectTo (Jack &) noexcept

Friends
class	Jack_Imp

Detailed Description

A Plug of some object can get plugged into a jack of some object, specific to a certain event.

The plug will receive a Pulse() call if that event occures. The pulse is always going from jack to plug. The plugs are provided by objects, too. These would take a pulse, received from a jack of another object as a trigger to perform a certain action. The Pulse() - method has no parameters! There is no meaning to a pulse and no message forewarded. All the 'meaning' of a pulse is laying in the connection of a specific plug to a specific jack.

Member Function Documentation

IsCyclic()

virtual bool trax::Plug::IsCyclic ( ) const

pure virtualnoexcept

Returns

true if it happens that the plug's jacks are connected in a cyclic manner, false otherwise.

Implemented in trax::Plug_Imp.

JackOnPulse() [1/2]

virtual const Jack & trax::Plug::JackOnPulse ( ) const

pure virtualnoexcept

Get a Jack that triggers a pulse if the Plug receives a pulse.

Implemented in trax::Plug_Imp.

JackOnPulse() [2/2]

virtual Jack & trax::Plug::JackOnPulse ( )

pure virtualnoexcept

Get a Jack that triggers a pulse if the Plug receives a pulse.

This can be used to cascade several Plugs to receive the pulse from one single Jack.

Implemented in trax::Plug_Imp.

Parent()

virtual PlugEnumerator & trax::Plug::Parent ( ) const

pure virtualnoexcept

Returns

a pointer to the owner of this plug.

Every object that provides plugs will implement this interface.

Implemented in trax::Plug_Imp.

Plugged()

virtual Jack * trax::Plug::Plugged ( ) const

pure virtualnoexcept

Is this Plug already plugged into a jack?

Returns

A pointer to the Jack this Plug is plugged to.

Implemented in trax::Plug_Imp.

Pulse()

virtual void trax::Plug::Pulse ( bool )

inlineprotectedvirtualnoexcept

Reimplemented in trax::Plug_Imp, and trax::Plug_Imp_ParentPointer< ParentType >.

Tail() [1/2]

virtual const Plug & trax::Plug::Tail ( ) const

pure virtual

receives the tail (last element) of a Plug chain.

Plugs provide themselves a Jack so they can get cascaded. The function receives the last element in this chain.

Returns

A Plug that is directly or indirectly inserted in this plug's jack and provides an empty Jack.

Exceptions

std::logic_error

if the connection happens to be cyclic, i.e., there is no empty jack.

Implemented in trax::Plug_Imp.

Tail() [2/2]

virtual Plug & trax::Plug::Tail ( )

pure virtual

receives the tail (last element) of a Plug chain.

Plugs provide themselves a Jack so they can get cascaded. The function receives the last element in this chain.

Returns

A Plug that is directly or indirectly inserted in this plug's jack and provides an empty Jack.

Exceptions

std::logic_error

if the connection happens to be cyclic, i.e., there is no empty jack.

Implemented in trax::Plug_Imp.

TypeName()

virtual const char * trax::Plug::TypeName ( ) const

pure virtualnoexcept

Returns

the name for the object type that implements this interface.

Implemented in trax::Plug_Imp.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/Plug.h
