trax::Identified< I > Struct Template Reference

Interface for identifying objects by ID or reference values. More...

#include <C:/Trend/Development/Trax3/Code/trax/Identified.h>

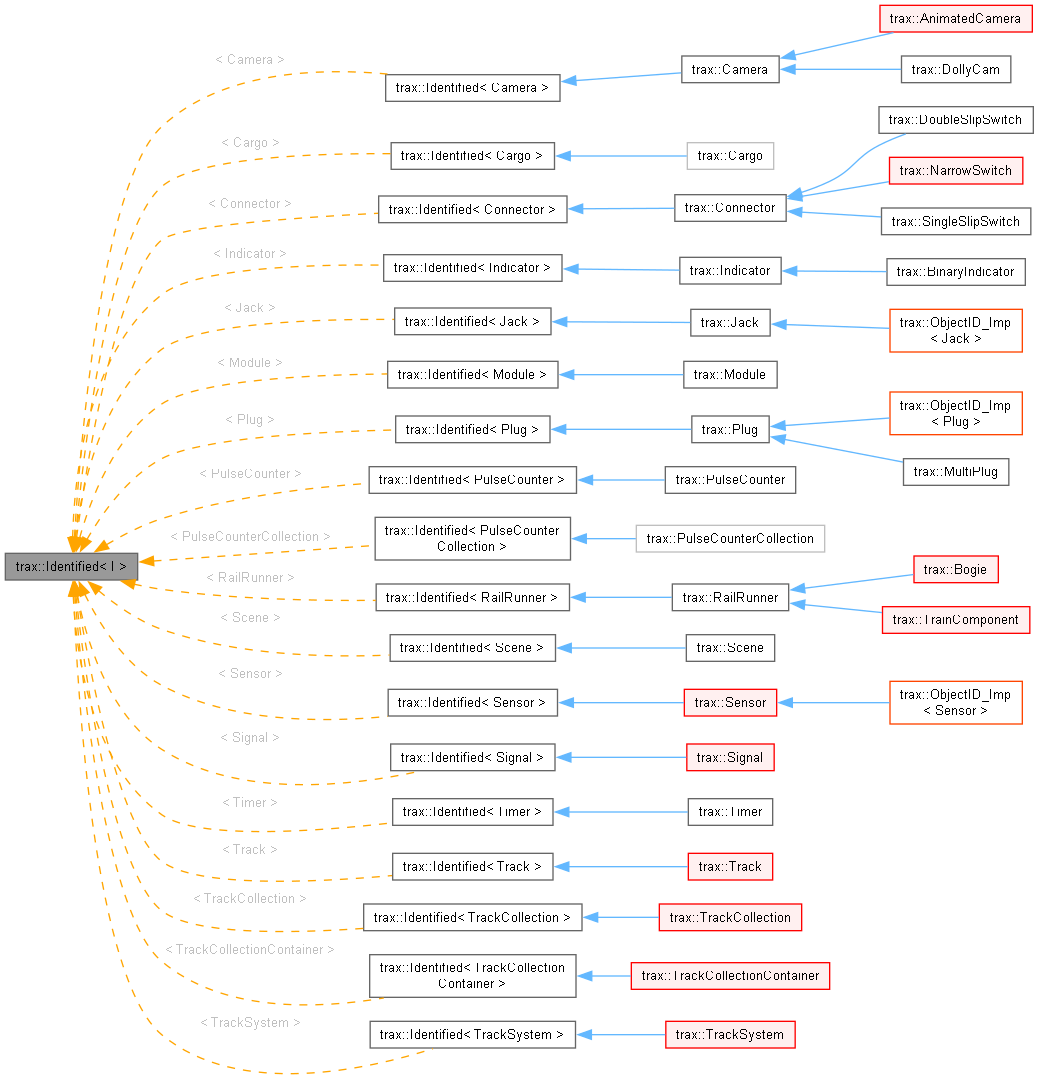

Inheritance diagram for trax::Identified< I >:

Public Member Functions
virtual const std::string &	Reference (const std::string &name) const =0
	Gets a reference that was set for this object by name.
virtual void	Reference (const std::string &name, const std::string &reference)=0
	Sets the reference for the object.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const =0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
virtual void	ID (IDType id) noexcept=0
	Sets the object's id.
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Protected Member Functions
	Identified (Identified &&)=default
Identified &	operator= (Identified &&)=default

Detailed Description

template<class I>
struct trax::Identified< I >

Interface for identifying objects by ID or reference values.

The template argument prevents that this becomes a common base.

Member Function Documentation

ID() [1/2]

template<class I>

virtual IDType trax::Identified< I >::ID ( ) const

pure virtualnoexcept

Returns

the object's id.

Implemented in trax::ObjectIDDecorator< Decorator< TrackCollection > >, trax::ObjectIDDecorator< Decorator< TrackCollectionContainer > >, trax::ObjectIDDecorator< Decorator< TrackSystem > >, trax::Plug_Imp, and trax::Sensor_Imp.

ID() [2/2]

template<class I>

virtual void trax::Identified< I >::ID ( IDType id )

pure virtualnoexcept

Sets the object's id.

Collections will typically set the id of an object added to them if id is not set. If the id of an object has a certain value, the collection will try to use that value but will fail if it is not unique.

Reference() [1/2]

template<class I>

virtual const std::string & trax::Identified< I >::Reference ( const std::string & name ) const

pure virtual

Gets a reference that was set for this object by name.

Parameters

name	Name of the reference.

Returns

a reference string for additional data to the object.

Implemented in trax::Plug_Imp, and trax::Sensor_Imp.

Reference() [2/2]

template<class I>

virtual void trax::Identified< I >::Reference ( const std::string & name, const std::string & reference )

pure virtual

Sets the reference for the object.

Parameters

name	Name of the reference.
reference	Reference string to be set.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/Identified.h
