trax::TrackCollection Struct Reference

Collection to hold a set of Track objects. More...

#include <C:/Trend/Development/Trax3/Code/trax/collections/TrackCollection.h>

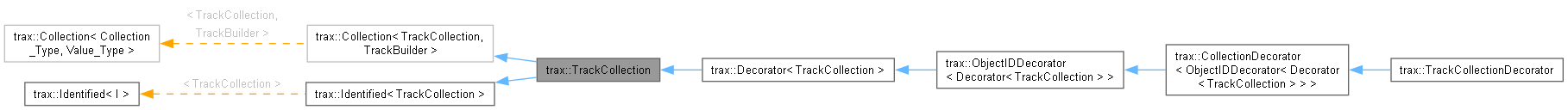

Inheritance diagram for trax::TrackCollection:

Public Member Functions
virtual void	SetFrame (const spat::Frame< Length, One > &frame) noexcept=0
	Sets the frame of references for this TrackCollection relative to the Module.
virtual const spat::Frame< Length, One > &	GetFrame () const noexcept=0
	Gets the frame of references for this TrackCollection relative to the Module.
Public Member Functions inherited from trax::Collection< TrackCollection, TrackBuilder >
virtual const char *	TypeName () const noexcept=0
virtual bool	IsValid () const noexcept=0
	Checks whether the elements in this collection are valid.
virtual IDType	Add (std::shared_ptr< TrackBuilder > pValue_Type)=0
	Adds an element to the container and returns its index in the container.
virtual IDType	AddRelaxed (std::shared_ptr< TrackBuilder > pTraxType)=0
	Adds an element to the container and returns its index in the container. Does not throw.
virtual bool	Remove (TrackBuilder *pValue_Type, bool zeroIDs=false)=0
	Removes an element from this container.
virtual int	Take (TrackCollection &collection_Type)=0
	Moves all the items from another container to this container.
virtual void	Clear ()=0
	Removes all the elements from this container.
virtual int	Count () const=0
virtual iterator	begin ()=0
virtual const_iterator	cbegin () const=0
virtual iterator	end ()=0
virtual const_iterator	cend () const=0
virtual std::shared_ptr< TrackBuilder >	GetFirst () const=0
virtual std::shared_ptr< TrackBuilder >	GetNext (const std::shared_ptr< TrackBuilder > &pValue_Type) const=0
virtual std::shared_ptr< TrackBuilder >	GetLast () const=0
virtual std::shared_ptr< TrackBuilder >	GetPrevious (const std::shared_ptr< TrackBuilder > &pValue_Type) const=0
virtual void	PushActive (IDType id)=0
	Pushes an element on the activety stack.
virtual void	PopActive ()=0
	Pops an element from the activity stack.
virtual std::shared_ptr< TrackBuilder >	GetActive () const=0
virtual void	ShiftIDs (int offset)=0
	Adds an offset to all ids.
virtual IDType	MaxID () const=0
virtual IDType	MinID () const=0
	Collection (const Collection &)=delete
Collection &	operator= (const Collection &)=delete
virtual std::shared_ptr< TrackBuilder >	Get (IDType id) const=0
virtual bool	IsMember (const value_type &item) const=0
Public Member Functions inherited from trax::Identified< TrackCollection >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Static Public Member Functions
static dclspc std::unique_ptr< TrackCollection >	Make () noexcept
	Makes a standard TrackCollection object.

Additional Inherited Members
Public Types inherited from trax::Collection< TrackCollection, TrackBuilder >
using	iterator
using	const_iterator
using	collection_type
using	value_type
Protected Member Functions inherited from trax::Collection< TrackCollection, TrackBuilder >
virtual void	SetDecorator (TrackCollection *pCollection_TypeDecorator)=0
Protected Attributes inherited from trax::Collection< TrackCollection, TrackBuilder >
friend	Decorator< Collection_Type >

Detailed Description

Collection to hold a set of Track objects.

Member Function Documentation

GetFrame()

virtual const spat::Frame< Length, One > & trax::TrackCollection::GetFrame ( ) const

pure virtualnoexcept

Gets the frame of references for this TrackCollection relative to the Module.

Implemented in trax::TrackCollectionDecorator.

SetFrame()

virtual void trax::TrackCollection::SetFrame ( const spat::Frame< Length, One > & frame )

pure virtualnoexcept

Sets the frame of references for this TrackCollection relative to the Module.

The tracks added to this collection will give Module relative coordinates on transition, so this frame is included in the calculations.

Implemented in trax::TrackCollectionDecorator.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/collections/TrackCollection.h
