A decorator for TrackCollection. More...

#include <C:/Trend/Development/Trax3/Code/trax/collections/TrackCollection.h>

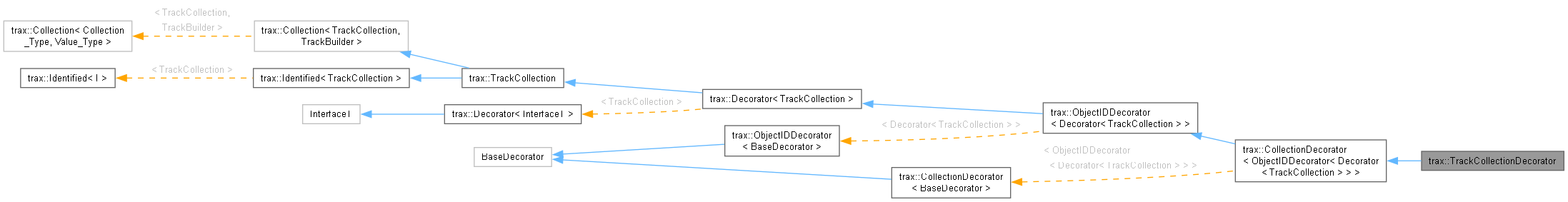

Inheritance diagram for trax::TrackCollectionDecorator:

[legend]

Public Types
typedef TrackCollection	ComponentType
	Type of the decoree.
Public Types inherited from trax::CollectionDecorator< ObjectIDDecorator< Decorator< TrackCollection > > >
typedef ObjectIDDecorator< Decorator< TrackCollection > >::InterfaceType	InterfaceType
typedef ObjectIDDecorator< Decorator< TrackCollection > >::collection_type	collection_type
typedef ObjectIDDecorator< Decorator< TrackCollection > >::value_type	value_type
Public Types inherited from trax::ObjectIDDecorator< Decorator< TrackCollection > >
typedef Decorator< TrackCollection >::InterfaceType	InterfaceType
	Type of the interface the decorator is decorating.
Public Types inherited from trax::Decorator< TrackCollection >
typedef TrackCollection	InterfaceType
	Type of the interface the decorator is decorating.
Public Types inherited from trax::Collection< TrackCollection, TrackBuilder >
using	iterator
using	const_iterator
using	collection_type
using	value_type

Public Member Functions
	TrackCollectionDecorator (std::shared_ptr< TrackCollection > pTrackCollection)
	Constructs the decorator.
void	SetFrame (const spat::Frame< Length, One > &frame) noexcept override
	Sets the frame of references for this TrackCollection relative to the Module.
const spat::Frame< Length, One > &	GetFrame () const noexcept override
	Gets the frame of references for this TrackCollection relative to the Module.
Public Member Functions inherited from trax::CollectionDecorator< ObjectIDDecorator< Decorator< TrackCollection > > >
	CollectionDecorator (std::shared_ptr< InterfaceType > pComponent)
	Decorator constructor.
const char *	TypeName () const noexcept override
IDType	Add (std::shared_ptr< value_type > pItem) override
IDType	AddRelaxed (std::shared_ptr< value_type > pItem) override
bool	Remove (value_type *pItem, bool zeroIDs=false) override
int	Take (collection_type &ct) override
void	Clear () override
int	Count () const override
collection_type::iterator	begin () override
collection_type::const_iterator	cbegin () const override
collection_type::iterator	end () override
collection_type::const_iterator	cend () const override
std::shared_ptr< value_type >	GetFirst () const override
std::shared_ptr< value_type >	GetNext (const std::shared_ptr< value_type > &pItem) const override
std::shared_ptr< value_type >	GetLast () const override
std::shared_ptr< value_type >	GetPrevious (const std::shared_ptr< value_type > &pItem) const override
std::shared_ptr< value_type >	Get (IDType id) const override
void	PushActive (IDType id) override
void	PopActive () override
std::shared_ptr< value_type >	GetActive () const override
bool	IsMember (const value_type &item) const override
void	ShiftIDs (int offset) override
IDType	MaxID () const override
IDType	MinID () const override
Public Member Functions inherited from trax::ObjectIDDecorator< Decorator< TrackCollection > >
	ObjectIDDecorator (std::shared_ptr< InterfaceType > pComponent)
	Decorator constructor.
const std::string &	Reference (const std::string &name) const override
const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const override
IDType	ID () const noexcept override
	ObjectIDDecorator member function forwarding.
Public Member Functions inherited from trax::Decorator< TrackCollection >
Decorator &	operator= (const Decorator &)=delete
InterfaceType *	Component () const noexcept
	Decorator member function forwarding.
Public Member Functions inherited from trax::Collection< TrackCollection, TrackBuilder >
virtual bool	IsValid () const noexcept=0
	Checks whether the elements in this collection are valid.
virtual IDType	Add (std::shared_ptr< TrackBuilder > pValue_Type)=0
	Adds an element to the container and returns its index in the container.
virtual IDType	AddRelaxed (std::shared_ptr< TrackBuilder > pTraxType)=0
	Adds an element to the container and returns its index in the container. Does not throw.
virtual bool	Remove (TrackBuilder *pValue_Type, bool zeroIDs=false)=0
	Removes an element from this container.
virtual int	Take (TrackCollection &collection_Type)=0
	Moves all the items from another container to this container.
virtual std::shared_ptr< TrackBuilder >	GetNext (const std::shared_ptr< TrackBuilder > &pValue_Type) const=0
virtual std::shared_ptr< TrackBuilder >	GetPrevious (const std::shared_ptr< TrackBuilder > &pValue_Type) const=0
	Collection (const Collection &)=delete
Collection &	operator= (const Collection &)=delete
virtual bool	IsMember (const value_type &item) const=0
Public Member Functions inherited from trax::Identified< TrackCollection >
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Additional Inherited Members
Static Public Member Functions inherited from trax::TrackCollection
static dclspc std::unique_ptr< TrackCollection >	Make () noexcept
	Makes a standard TrackCollection object.
Protected Member Functions inherited from trax::Decorator< TrackCollection >
void	SetDecorator (InterfaceType *pDecorator) noexcept override
Protected Attributes inherited from trax::Decorator< TrackCollection >
std::shared_ptr< InterfaceType >	m_pComponent
	Pointer to decorated object.
Protected Attributes inherited from trax::Collection< TrackCollection, TrackBuilder >
friend	Decorator< Collection_Type >

Detailed Description

A decorator for TrackCollection.

With trax decorators can get used to augment trax objects with additional behaviour and services. Derive your own class from the decorator and overwrite its methods. Create your decorator with the trax object and supply it to the library instead of the original object.

Constructor & Destructor Documentation

◆ TrackCollectionDecorator()

trax::TrackCollectionDecorator::TrackCollectionDecorator ( std::shared_ptr< TrackCollection > pTrackCollection )

inline

Constructs the decorator.

Parameters

pTrackCollection Pointer to object to decorate.

Member Function Documentation

◆ GetFrame()

const spat::Frame< Length, One > & trax::TrackCollectionDecorator::GetFrame ( ) const

inlineoverridevirtualnoexcept

Gets the frame of references for this TrackCollection relative to the Module.

Implements trax::TrackCollection.

◆ SetFrame()

void trax::TrackCollectionDecorator::SetFrame ( const spat::Frame< Length, One > & frame )

inlineoverridevirtualnoexcept

Sets the frame of references for this TrackCollection relative to the Module.

The tracks added to this collection will give Module relative coordinates on transition, so this frame is included in the calculations.

Implements trax::TrackCollection.

The documentation for this class was generated from the following file:

C:/Trend/Development/Trax3/Code/trax/collections/TrackCollection.h
