trax::Track Struct Reference

Interface for a track used to calculate 3D positions. More...

#include <C:/Trend/Development/Trax3/Code/trax/Track.h>

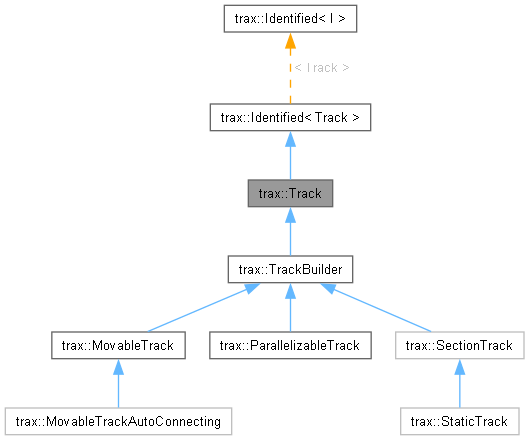

Inheritance diagram for trax::Track:

Classes
struct	End
	Designates an end at a specific track. More...
struct	Coupling
	Designates two track ends. Typically used for coupling relations. More...
struct	Overlap
	Overlapping data. More...

Public Types
enum class	TrackType : char {   unknown = -1 , none = 0 , standard , withGeoms ,   movable , movable_autoconnecting , parallel }
enum class	EndType : char { none = -1 , front = 0 , end = 1 , any }
	Designates one of the two ends of a track. More...
typedef std::pair< std::shared_ptr< Track >, EndType >	TrackEnd
typedef std::pair< std::shared_ptr< const Track >, const EndType >	cTrackEnd

Public Member Functions
virtual const char *	TypeName () const noexcept=0
virtual TrackType	GetTrackType () const noexcept=0
virtual std::shared_ptr< const Body >	GetBody () const noexcept=0
virtual bool	IsValid () const noexcept=0
virtual Length	GetLength () const noexcept=0
virtual common::Interval< Length >	Range () const noexcept=0
virtual bool	IsCoupled (EndType atend=EndType::any) const noexcept=0
virtual AnglePerLength	Curvature (Length s) const =0
virtual AnglePerLength	Torsion (Length s) const =0
virtual Angle	GetTwistValue (Length s) const =0
virtual AnglePerLength	GetTwistD1 (Length s) const =0
virtual bool	IsFlat () const noexcept=0
virtual spat::Vector< One >	LocalUp () const =0
	Gives the Curve's idiosyncratic up direction transformed by the track's frame. Some curves maintain some idea about where they have their upside, either because of their form (e.g Helix) or because it is extra defined (e.g. for Line). Some curves maintain no such notion (e.g. Cubic).
virtual void	TNBFrame (Length s, spat::Frame< Length, One > &frame) const =0
	Receives the TNB - Frame of the curve at the location.
virtual TrackEnd	TransitionEnd (EndType thisEnd) const noexcept=0
	Gives the Track coupled to this at the specified end.
virtual void	DoTrigger (const common::Interval< Length > &range, const Event &_event) const =0
virtual bool	DoSignal (const common::Interval< Length > &range, Orientation orientation, SignalTarget &signalTarget) const =0
virtual Signal *	GetSignal (const TrackLocation &loc) const noexcept=0
	Gets the first Signal in the direction given by loc.
virtual Connector *	GetConnector (EndType atend) const noexcept=0
	retreives a connector (e.g. a Switch) at the respective track end.
virtual Connector *	GetConnector (const Orientation &inDirection) const noexcept=0
	retrieves the next connector (e.g. a Switch) that can be found in the given direction.
virtual void	UserData (TrackUserData *pData) noexcept=0
	Sets a pointer to user provided data.
virtual TrackUserData *	UserData () const noexcept=0
virtual std::shared_ptr< const TrackBuilder >	This () const noexcept=0
	Gets a shared pointer to this.
virtual std::shared_ptr< TrackBuilder >	This () noexcept=0
virtual std::shared_ptr< const MovableTrack >	GetMovableTrack () const noexcept=0
virtual std::shared_ptr< MovableTrack >	GetMovableTrack () noexcept=0
virtual std::shared_ptr< const ParallelizableTrack >	GetParallelizableTrack () const noexcept=0
virtual std::shared_ptr< ParallelizableTrack >	GetParallelizableTrack () noexcept=0
Transition to Space
Gives geometrical data for a specific location along the track. The coordinates are relative to the global frame and take into accout all the Frame offset and the twist of the track. Parameters s Length along the track counted from front to get the spatial data for. The minimum valid value is 0, the maximum value is given by Length() otherwise throws an error. pos Position on the track at s. tan Tangent along the track at s. bundle Position and vectors along the track at s. frame TNB - frame along the track at s. td The full track data set in engine units. Used internally by trackjoints and trackfeeders. Exceptions std::logic_error if no proper curve is attached with the track. std::range_error if s is outside the [0,Length()] range.
virtual void	Transition (Length s, spat::Position< Length > &pos) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, spat::Vector< One > &tan) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, spat::VectorBundle< Length, One > &bundle) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, spat::VectorBundle2< Length, One > &bundle) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, spat::Frame< Length, One > &frame) const =0
	Gives information about the pose on the track at the specified parameter value.
virtual void	Transition (Length s, TrackData< Real > &td, Real engine_meters_per_unit) const =0
	Gives information about the pose on the track at the specified parameter value.
Public Member Functions inherited from trax::Identified< Track >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Reservation mechanism
Reservations are areas on a track that are marked as reserved for some id. They allow to detemine overlappings between different reservations, distinguished by IDs. A reservation interval's near value will be considered inside the reservation, the far value as being outside.
using	Reservation = std::tuple<IDType,common::Interval<Length>>
	Reserves a parameter range on the track for a specified id.
using	ReservationIterator = std::vector<Reservation>::const_iterator
	Reserves a parameter range on the track for a specified id.
virtual void	Reserve (common::Interval< Length > range, IDType forID)=0
	Reserves a parameter range on the track for a specified id.
virtual ReservationIterator	BeginReservations () const noexcept=0
virtual ReservationIterator	EndReservations () const noexcept=0
virtual void	DeleteReservation (common::Interval< Length > inRange, IDType forID=anyID) noexcept=0
	Deletes a reservation with specified ID, if it overlaps with the specified range.
virtual bool	IsReserved (common::Interval< Length > inRange, IDType forID=anyID) const noexcept=0
	Is here a reservation for the specified ID inside the range on the track?
virtual std::vector< Overlap >	Overlaps (IDType forID) const =0
	Finds overlapping areas for reservations.

Detailed Description

Interface for a track used to calculate 3D positions.

Trains use this kind of interfaces to calculate their positions in 3D

Member Typedef Documentation

Reservation

using trax::Track::Reservation = std::tuple<IDType,common::Interval<Length>>

Reserves a parameter range on the track for a specified id.

If the range is outside the track's parameter range, the reservation request will be forwarded to the connected tracks according to the active connections, as determined by switches.

Parameters

range	The range to reserve in parameter space. A zero range will count as no reservation at all; the reservations carry direction according to their normalized state. A range completely outside the track will throw an exception.
forID	An idintifier to be stored with the reservation. If the reservations are used for trains, the IDs of trains or Railrunners in a collection would make a good candidate for the IDs of reservations.

Exceptions

std::range_error

If the range lays completely outside the track.

ReservationIterator

using trax::Track::ReservationIterator = std::vector<Reservation>::const_iterator

Reserves a parameter range on the track for a specified id.

If the range is outside the track's parameter range, the reservation request will be forwarded to the connected tracks according to the active connections, as determined by switches.

Parameters

range	The range to reserve in parameter space. A zero range will count as no reservation at all; the reservations carry direction according to their normalized state. A range completely outside the track will throw an exception.
forID	An idintifier to be stored with the reservation. If the reservations are used for trains, the IDs of trains or Railrunners in a collection would make a good candidate for the IDs of reservations.

Exceptions

std::range_error

If the range lays completely outside the track.

Member Enumeration Documentation

EndType

enum class trax::Track::EndType : char

strong

Designates one of the two ends of a track.

Enumerator
front	Designates the front end.
end	Designates the far end.
any	Denotes the north or south end of a Railrunner.

Member Function Documentation

BeginReservations()

virtual ReservationIterator trax::Track::BeginReservations ( ) const

pure virtualnoexcept

Returns

begin iterator to the reservations on the track.

Curvature()

virtual AnglePerLength trax::Track::Curvature ( Length s ) const

pure virtual

Parameters

s	Parameter value 0 <= s <= Length()

Returns

The geometrical curvature at parameter value s.

Exceptions

std::logic_error	if no proper curve is attached with the track.
std::range_error	if s is outside the [0,Length()] range.

DeleteReservation()

virtual void trax::Track::DeleteReservation ( common::Interval< Length > inRange, IDType forID = anyID )

pure virtualnoexcept

Deletes a reservation with specified ID, if it overlaps with the specified range.

If the reservation transitions the track boundaries, the request will be forewarded to the connected tracks for that reservation. If a reservation overlaps inRange, it is deleted completely (not only the intersectional part).

Parameters

inRange	Range to test for.
forID	ID to delete a reservation for. If it is anyID all reservations in range will get deleted.

DoSignal()

virtual bool trax::Track::DoSignal ( const common::Interval< Length > & range, Orientation orientation, SignalTarget & signalTarget ) const

pure virtual

Receives the notifications in the range along the track.

Parameters

range	on the track to receive the notifications for.
orientation	Direction along the track to receive the signals for.
signalTarget	Target to receive the notifications.

Returns

true if the movement along the track should get calculated, false if this is supposed to stop, because the train was relocated by the Notify function.

DoTrigger()

virtual void trax::Track::DoTrigger ( const common::Interval< Length > & range, const Event & _event ) const

pure virtual

Triggers all sensors in the range in the order of their positioning along the track according to start and end of the range.

Only the sensors wich are parallel to the range orientation get triggered. Wether the sensor actually sends a pulse will depend from the match between the Event settings and the Effect filter of the sensor.

Parameters

range	Trackrange to trigger contacts in.
_event	An Event to match with the sensor's filter settings.

EndReservations()

virtual ReservationIterator trax::Track::EndReservations ( ) const

pure virtualnoexcept

Returns

end iterator to the reservations on the track.

GetBody()

virtual std::shared_ptr< const Body > trax::Track::GetBody ( ) const

pure virtualnoexcept

Returns

Returns the body a track is assigned to or nullptr.

Implemented in trax::MovableTrack.

GetConnector() [1/2]

virtual Connector * trax::Track::GetConnector ( const Orientation & inDirection ) const

pure virtualnoexcept

retrieves the next connector (e.g. a Switch) that can be found in the given direction.

Parameters

inDirection

direction relative to this track to search for a Connector.

Returns

A pointer to a Connector or nullptr if none could be found.

GetConnector() [2/2]

virtual Connector * trax::Track::GetConnector ( EndType atend ) const

pure virtualnoexcept

retreives a connector (e.g. a Switch) at the respective track end.

Returns

A pointer to the connector or nullptr if none is present.

GetLength()

virtual Length trax::Track::GetLength ( ) const

pure virtualnoexcept

Returns

the maximum valid parameter value of the track.

GetMovableTrack() [1/2]

virtual std::shared_ptr< const MovableTrack > trax::Track::GetMovableTrack ( ) const

pure virtualnoexcept

Returns

A shared pointer to the movable track interface or nullptr, if none.

GetMovableTrack() [2/2]

virtual std::shared_ptr< MovableTrack > trax::Track::GetMovableTrack ( )

pure virtualnoexcept

Returns

A shared pointer to the movable track interface or nullptr, if none.

GetParallelizableTrack() [1/2]

virtual std::shared_ptr< const ParallelizableTrack > trax::Track::GetParallelizableTrack ( ) const

pure virtualnoexcept

Returns

A shared pointer to the parallel track interface or nullptr, if none.

GetParallelizableTrack() [2/2]

virtual std::shared_ptr< ParallelizableTrack > trax::Track::GetParallelizableTrack ( )

pure virtualnoexcept

Returns

A shared pointer to the parallel track interface or nullptr, if none.

GetSignal()

virtual Signal * trax::Track::GetSignal ( const TrackLocation & loc ) const

pure virtualnoexcept

Gets the first Signal in the direction given by loc.

This transitions track borders.

Parameters

loc	The point from wich to search and the direction in wich to search.

Returns

A pointer to a Signal if found, nullptr otherwise.

GetTwistD1()

virtual AnglePerLength trax::Track::GetTwistD1 ( Length s ) const

pure virtual

Returns

The first derivative of the twist function at s that gets applied by the attached RoadwayTwist.

GetTwistValue()

virtual Angle trax::Track::GetTwistValue ( Length s ) const

pure virtual

Returns

The twist value at s that gets applied by the attached RoadwayTwist.

IsCoupled()

virtual bool trax::Track::IsCoupled ( EndType atend = EndType::any ) const

pure virtualnoexcept

Returns

true if the respective end is coupled to another track end.

IsFlat()

virtual bool trax::Track::IsFlat ( ) const

pure virtualnoexcept

Returns

true if it is guaranteed, that Torsion() will return 0_1Im for every s.

IsValid()

virtual bool trax::Track::IsValid ( ) const

pure virtualnoexcept

Tests wether a valid curve and twist are attached.

Returns

true if the track is able to deliver valid geometry.

LocalUp()

virtual spat::Vector< One > trax::Track::LocalUp ( ) const

pure virtual

Gives the Curve's idiosyncratic up direction transformed by the track's frame. Some curves maintain some idea about where they have their upside, either because of their form (e.g Helix) or because it is extra defined (e.g. for Line). Some curves maintain no such notion (e.g. Cubic).

Exceptions

std::runtime_error

if the Curve has no notion of up.

Returns

The Curve's up direction.

Overlaps()

virtual std::vector< Overlap > trax::Track::Overlaps ( IDType forID ) const

pure virtual

Finds overlapping areas for reservations.

A reservation for forID has to exist on the track, otherwise the result would always be an empty vector. The method will not self-overlap any reservation, but will deliver overlaps for different reservations even with the same id.

Exceptions

std::exception

if the overlaps could not get collected.

Range()

virtual common::Interval< Length > trax::Track::Range ( ) const

pure virtualnoexcept

Returns

the track's parameter range [0,Length()]

The range includes the last point of the interval.

Reserve()

virtual void trax::Track::Reserve ( common::Interval< Length > range, IDType forID )

pure virtual

Reserves a parameter range on the track for a specified id.

If the range is outside the track's parameter range, the reservation request will be forwarded to the connected tracks according to the active connections, as determined by switches.

Parameters

range	The range to reserve in parameter space. A zero range will count as no reservation at all; the reservations carry direction according to their normalized state. A range completely outside the track will throw an exception.
forID	An idintifier to be stored with the reservation. If the reservations are used for trains, the IDs of trains or Railrunners in a collection would make a good candidate for the IDs of reservations.

Exceptions

std::range_error

If the range lays completely outside the track.

This() [1/2]

virtual std::shared_ptr< const TrackBuilder > trax::Track::This ( ) const

pure virtualnoexcept

Gets a shared pointer to this.

Returns

A shared const pointer to the track interface.

This() [2/2]

virtual std::shared_ptr< TrackBuilder > trax::Track::This ( )

pure virtualnoexcept

Returns

A shared pointer to the track interface.

TNBFrame()

virtual void trax::Track::TNBFrame ( Length s, spat::Frame< Length, One > & frame ) const

pure virtual

Receives the TNB - Frame of the curve at the location.

The Frame received by the Transition() methods is aligned to Locations orientation on the tracks and a twisting of the line. For dynamic calculations the real geometry of the curve is needed.

Exceptions

std::logic_error	if no proper curve is attached with the track.
std::range_error	if s is outside the [0,Length()] range.

Torsion()

virtual AnglePerLength trax::Track::Torsion ( Length s ) const

pure virtual

Parameters

s	Parameter value 0 <= s <= Length()

Returns

The geometrical torsion including the first derivative of the twist (making up the total geometrical torsion) at parameter value s.

Exceptions

std::logic_error	if no proper curve is attached with trhe track.
std::range_error	if s is outside the [0,Length()] range.

TransitionEnd()

virtual TrackEnd trax::Track::TransitionEnd ( EndType thisEnd ) const

pure virtualnoexcept

Gives the Track coupled to this at the specified end.

Parameters

thisEnd

End of this track to get the coupled track for.

Returns

A shared pointer to the coupled track or a nullptr if no track is connected. If not nullptr, othersend will receive the type of end of the other track the coupling is existing for.

TypeName()

virtual const char * trax::Track::TypeName ( ) const

pure virtualnoexcept

Returns

the name for the object type that implements this interface.

UserData() [1/2]

virtual TrackUserData * trax::Track::UserData ( ) const

pure virtualnoexcept

Returns

User provided data.

UserData() [2/2]

virtual void trax::Track::UserData ( TrackUserData * pData )

pure virtualnoexcept

Sets a pointer to user provided data.

Define TrackUserData to specify your data types.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/Track.h
