common::Interval< Valtype > Struct Template Reference

An interval describes the area between two numbers. It is understood to contain the near one and exlude the far. More...

#include <C:/Trend/Development/Trax3/Code/common/Interval.h>

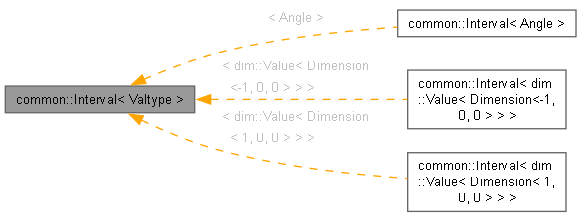

Inheritance diagram for common::Interval< Valtype >:

Public Member Functions
constexpr auto	Sign () const noexcept -> decltype(Valtype{}/Valtype{})
constexpr bool	Normal () const noexcept
	Is m_Near <= m_Far.
Interval &	Normalize () noexcept
	Make m_Near <= m_Far by flipping.
Interval &	Flip () noexcept
	swap near and far.
constexpr Valtype	Near () const noexcept
constexpr Valtype	Far () const noexcept
Interval &	Near (Valtype val) noexcept
	Sets the near value of this interval.
Interval &	Far (Valtype val) noexcept
	Sets the far value of this interval.
constexpr Valtype	Max () const noexcept
constexpr Valtype	Min () const noexcept
constexpr Valtype	Length () const noexcept
	Distance from m_Near to m_Far.
Interval &	Length (Valtype length) noexcept
	Sets the length of the interval by centering it around 0.
constexpr Valtype	Center () const noexcept
	gets the value centered in the interval.
Interval &	Union (const Interval &i1, const Interval &i2) noexcept
	Calculates the union of the two intervals.
Interval &	Union (const Interval &interval) noexcept
	Calculates the union of this and interval.
Interval &	Intersection (const Interval &intersected, const Interval &with) noexcept
	Calculates the intersection interval of i1 and i2.
Interval &	Intersection (const Interval &interval) noexcept
	Calculates the intersection interval of this and interval.
constexpr bool	Includes (Valtype val) const noexcept
constexpr bool	Includes (const Interval &interval) const noexcept
constexpr bool	Touches (Valtype val, Valtype epsilon=Valtype{0}) const noexcept
Valtype	Clip (Valtype &val) const noexcept
	Clips the value to the interval.
constexpr const Valtype &	Clip (const Valtype &val) const noexcept
Valtype	Wrap (Valtype &val) const noexcept
	Wraps the value to the interval.
Interval &	Expand (Valtype val) noexcept
	Expands the interval so that it touches (being included or laying on border) val.
Interval &	Inflate (Valtype dx) noexcept
	Extends the inteval by dx at each end.
Interval &	Deflate (Valtype dx) noexcept
	Shrinks the interval by dx at each end.
Interval &	Move (Valtype dx) noexcept
	Moves the interval by dx.
Interval &	ToParent (Interval &interval) const noexcept
	Understands interval as relative to this and transforms it to parent.
Interval &	FromParent (Interval &interval) const noexcept
	Understands interval as relative to parent and transforms it to this.
constexpr bool	Equals (const Interval &interval, Valtype epsilon=std::numeric_limits< Valtype >::epsilon()) const noexcept
	Comparison.
Interval &	Round (int toDigit) noexcept
	Rounds the inteval's values to a certain digit after the point.
Construction
Parameters val Set the interval at val with no extention nearval lower value of interval. farval lower value of interval
constexpr	Interval () noexcept=default
	Does not initialize the members.
constexpr	Interval (Valtype val) noexcept
	Does not initialize the members.
constexpr	Interval (Valtype nearval, Valtype farval) noexcept
	Does not initialize the members.
constexpr	Interval (const std::pair< Valtype, Valtype > &pair) noexcept
	Does not initialize the members.
template<typename Valtype2>
constexpr	Interval (const Interval< Valtype2 > &interval) noexcept
	Does not initialize the members.
Initialisation
Initializes the interval to origin.
Interval &	Init () noexcept
Interval &	Init (Valtype nearval, Valtype length) noexcept

Public Attributes
Valtype	m_Near
	The 'left' side of the interval; usually the smaller value.
Valtype	m_Far
	The 'right' side of the interval; usually the bigger value.

Detailed Description

template<typename Valtype>
struct common::Interval< Valtype >

An interval describes the area between two numbers. It is understood to contain the near one and exlude the far.

Member Function Documentation

Clip()

template<typename Valtype>

Valtype common::Interval< Valtype >::Clip ( Valtype & val ) const

inlinenoexcept

Clips the value to the interval.

Returns

The clipped value.

Equals()

template<typename Valtype>

bool common::Interval< Valtype >::Equals ( const Interval< Valtype > & interval, Valtype epsilon = std::numeric_limits<Valtype>::epsilon() ) const

inlineconstexprnoexcept

Comparison.

Parameters

interval	Interval to compare with.
epsilon	deviation margin.

Returns

true if the two Intervals are equal inside the given margin.

Expand()

template<typename Valtype>

Interval< Valtype > & common::Interval< Valtype >::Expand ( Valtype val )

inlinenoexcept

Expands the interval so that it touches (being included or laying on border) val.

If the value is allready included in the interval, no changes are made. If val becomes m_Far Includes() will not return the value as beeing included.

Far()

template<typename Valtype>

Valtype common::Interval< Valtype >::Far ( ) const

inlineconstexprnoexcept

Returns

The far value of this interval.

FromParent()

template<typename Valtype>

Interval< Valtype > & common::Interval< Valtype >::FromParent ( Interval< Valtype > & interval ) const

inlinenoexcept

Understands interval as relative to parent and transforms it to this.

Returns

transformed interval.

Includes() [1/2]

template<typename Valtype>

bool common::Interval< Valtype >::Includes ( const Interval< Valtype > & interval ) const

inlineconstexprnoexcept

Returns

True if interval is completely inbetween m_Near and m_Far.

Includes() [2/2]

template<typename Valtype>

bool common::Interval< Valtype >::Includes ( Valtype val ) const

inlineconstexprnoexcept

Returns

True if val is inbetween m_Near and m_Far. val == m_Near will return true, val == m_Far false.

Intersection() [1/2]

template<typename Valtype>

Interval< Valtype > & common::Interval< Valtype >::Intersection ( const Interval< Valtype > & intersected, const Interval< Valtype > & with )

inlinenoexcept

Calculates the intersection interval of i1 and i2.

The normal state will be that of intersected; if these rects are not in touch, the resulting interval will be {0,0}.

Intersection() [2/2]

template<typename Valtype>

Interval< Valtype > & common::Interval< Valtype >::Intersection ( const Interval< Valtype > & interval )

inlinenoexcept

Calculates the intersection interval of this and interval.

The normal state will be that of this; if these rects are not in touch, the resulting interval will be {0,0}.

Max()

template<typename Valtype>

Valtype common::Interval< Valtype >::Max ( ) const

inlineconstexprnoexcept

Returns

The maximum of the two limiting values.

Min()

template<typename Valtype>

Valtype common::Interval< Valtype >::Min ( ) const

inlineconstexprnoexcept

Returns

The minimum of the two limiting values.

Near()

template<typename Valtype>

Valtype common::Interval< Valtype >::Near ( ) const

inlineconstexprnoexcept

Returns

The near value of this interval.

Sign()

template<typename Valtype>

auto common::Interval< Valtype >::Sign ( ) const->decltype(Valtype{}/Valtype{})

inlineconstexprnoexcept

Returns

1 if the interval is normal, -1 elsewise.

ToParent()

template<typename Valtype>

Interval< Valtype > & common::Interval< Valtype >::ToParent ( Interval< Valtype > & interval ) const

inlinenoexcept

Understands interval as relative to this and transforms it to parent.

Returns

transformed interval.

Touches()

template<typename Valtype>

bool common::Interval< Valtype >::Touches ( Valtype val, Valtype epsilon = Valtype{0} ) const

inlineconstexprnoexcept

Returns

True if val is inbetween m_Near and m_Far. val == m_Near-epsilon and val == m_Far+epsilon will return true.

Wrap()

template<typename Valtype>

Valtype common::Interval< Valtype >::Wrap ( Valtype & val ) const

inlinenoexcept

Wraps the value to the interval.

Returns

The wrapped value.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/common/Interval.h
