trax::Signal Struct Reference

A Signal is positioned along a track and is submitted to a Train if it runs over it. More...

#include <C:/Trend/Development/Trax3/Code/trax/Signal.h>

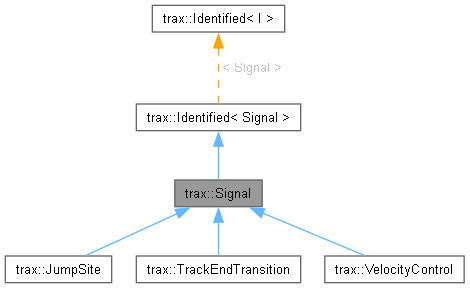

Inheritance diagram for trax::Signal:

Public Types
enum class	Status {   none = -1 , stop = 0 , clear = 1 , slow ,   velocity0 = stop , velocity1 = clear , velocity2 = slow , velocity3 ,   velocity4 , velocity5 , velocity6 , velocity7 ,   velocity8 , velocity9 , velocity10 , velocity11 ,   velocity12 , velocityMax = velocity12 , caution , doors_open ,   doors_close , uncouple , lights_on , jump ,   count , toggle , change }
	Various Signal status settings.

Public Member Functions
virtual const char *	TypeName () const noexcept=0
virtual Status	Set (Status status, bool pulse=true)=0
	Set the Signal's setting.
virtual void	Toggle (bool pulse=true)=0
	Sets the signal state to the next setting.
virtual Status	Get () const =0
	Get the Signal's setting.
virtual int	CountStatus () const =0
	Gets the number of signal status the signal provides.
virtual void	Attach (TrackBuilder *pTrackBuilder) noexcept=0
	Attaches the Signal to a TrackBuilder.
virtual TrackBuilder *	TrackAttached () const =0
virtual void	GetTrackRange (TrackRange &trackRange) const =0
	Gets the range on the track on wich the signal is effective.
virtual Location	GetLocation () const =0
	Creates a Location for the signals reference point on the tracks.
virtual MultiPlug &	PlugToToggle ()=0
virtual Jack &	JackOnChange ()=0
virtual Jack &	JackOn (Status status)=0
	Gets a Jack that pulses its Plug if the specified Status is set.
virtual Jack &	JackOnChangeTo (Status status)=0
	Gets a Jack that pulses its Plug if the specified Status is set and was not set before.
virtual MultiPlug &	PlugTo (Status status)=0
	Gets a Plug that switches to the specified Status.
virtual void	RegisterSockets (SocketRegistry &modul)=0
	Registers all the Plugs with the module and supplies the Jacks with plug ids for connecting.
virtual void	UnregisterSockets (SocketRegistry &modul)=0
	Removes all references to Plugs and Jacks from the module.
Public Member Functions inherited from trax::Identified< Signal >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Detailed Description

A Signal is positioned along a track and is submitted to a Train if it runs over it.

All messages that count potentially for all trains should be implemented as Signals.

Member Function Documentation

GetLocation()

virtual Location trax::Signal::GetLocation ( ) const

pure virtual

Creates a Location for the signals reference point on the tracks.

This would be the Far() value of the range it is registered with.

Returns

A location on the track.

JackOnChange()

virtual Jack & trax::Signal::JackOnChange ( )

pure virtual

Returns

A Jack that pulses its Plug if the connector setting is changed.

PlugToToggle()

virtual MultiPlug & trax::Signal::PlugToToggle ( )

pure virtual

Returns

A Plug to trigger the toggle method.

Set()

virtual Status trax::Signal::Set ( Status status, bool pulse = true )

pure virtual

Set the Signal's setting.

Parameters

status	Status to set the signal to.
pulse	True if the action shall pulse a plug.

Returns

The previous setting.

Toggle()

virtual void trax::Signal::Toggle ( bool pulse = true )

pure virtual

Sets the signal state to the next setting.

Parameters

pulse

True if the action shall pulse a plug.

TrackAttached()

virtual TrackBuilder * trax::Signal::TrackAttached ( ) const

pure virtual

Returns

Pointer to the track this Signal is attached to, or nullptr, if not attached.

TypeName()

virtual const char * trax::Signal::TypeName ( ) const

pure virtualnoexcept

Returns

the name for the object type that implements this interface.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/Signal.h
