A WheelFrame is a Bogie that hosts Wheelsets and a TrackJoint and therefore can directly get attached to a track. It also is responsible for managing a TractionForceCharacteristic and feeding the TrackJoint with data. More...

#include <C:/Trend/Development/Trax3/Code/trax/rigid/trains/WheelFrame.h>

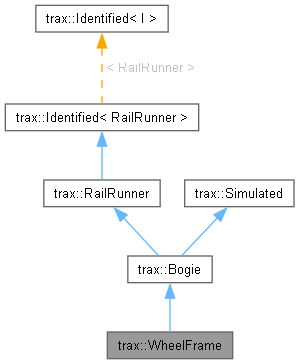

Inheritance diagram for trax::WheelFrame:

[legend]

Classes
struct	Event

Public Member Functions
virtual void	Limits (const TrackJointLimits &wfl)=0
	Sets all the limits for this wheelframe.
virtual const TrackJointLimits &	Limits () const noexcept=0
virtual std::shared_ptr< const TractionForceCharacteristic >	SetTractionForceCharacteristic (std::shared_ptr< const TractionForceCharacteristic > pCharacteristic)=0
	applies a TractionForceCharacteristic to the thrust calculations.
virtual std::shared_ptr< const TractionForceCharacteristic >	GetTractionForceCharacteristic () const =0
virtual void	EnableDerailing (bool bEnable=true) noexcept=0
	A WheelFrame might derail during the simulation, if the stress of forces gets big enough. This switches this possibility on or off.
virtual bool	IsDerailingEnabled () const noexcept=0
virtual int	Attach (const Wheelset &ws)=0
	Attaches a Wheelset to this WheelFrame.
virtual void	DetachAllWheelsets ()=0
	Removes all the Wheelsets.
virtual int	CntWheelsets () const noexcept=0
	Gets the number of Wheelsets attached directly to this WheelFrame.
virtual const Wheelset &	GetWheelset (int idx) const =0
	Gets the Wheelset denoted by idx.
virtual Jack &	JackOnRail () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame gets railed on a track.
virtual Jack &	JackOnDerail () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame derails.
virtual Jack &	JackOnRollingStart () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame starts to roll.
virtual Jack &	JackOnRollingStop () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame stops to roll.
virtual Jack &	JackOnMotorActive () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame's motor gets activated in order to reach the target velocity.
virtual Jack &	JackOnMotorInactive () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame's motor gets deactivated.
virtual Jack &	JackOnBrakeActive () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame's brake gets activated in order to reach the target velocity.
virtual Jack &	JackOnBrakeInactive () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame's brake gets deactivated.
virtual Jack &	JackOnTrackTransition () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame passes the connection between two tracks.
virtual Jack &	JackOnStartTilting () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame starts tilting.
virtual Jack &	JackOnStopTilting () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame starts tilting.
virtual void	Attach (std::shared_ptr< Bogie > pChildBogie, EndType atEnd, const spat::Frame< Length, One > &swivelPose)=0
virtual void	Attach (std::shared_ptr< Bogie > pChildBogie, EndType atEnd)=0
Anchor
Gets or sets the local anchor that gets aligned to the track by the track joint. The frame in local coordinates relative to the WheelFrame's body frame, which will get aligned to the track. If the WheelFrame becomes railed in anti direction on a track, this anchor will get flipped. See also RailRunner::GetGlobalAnchor()
virtual void	Anchor (const spat::Frame< Length, One > &anchor) noexcept=0
virtual spat::Frame< Length, One >	Anchor () const noexcept=0
virtual spat::Frame< Length, One >	UnflippedAnchor () const noexcept=0
Public Member Functions inherited from trax::Bogie
virtual std::shared_ptr< Bogie >	ThisBogie () const noexcept=0
	Gets a shared pointer to this.
virtual Gestalt &	GetGestalt () const noexcept=0
virtual RollingStock *	GetRollingStock () const noexcept=0
virtual std::pair< std::shared_ptr< Bogie >, spat::Frame< Length, One > >	GetChild (EndType atEnd) const noexcept=0
	Gets the a pointer to a child bogie and the pose relative to this Bogie, were the swivel axis is running through the Bin vector.
virtual std::pair< std::shared_ptr< Bogie >, spat::Frame< Length, One > >	GetParent (EndType atEnd=EndType::any) const noexcept=0
	Gets the a pointer to a parent bogie and the pose relative to this Bogie, were the swivel axis is running through the Bin vector.
virtual std::shared_ptr< Bogie >	GetFirst () const noexcept=0
	Gets the first bogie in the rolling stock.
virtual std::shared_ptr< Bogie >	GetNext () const noexcept=0
	Gets the next bogie in the rolling stock.
virtual std::shared_ptr< Bogie >	GetPrevious () const noexcept=0
	Gets the previous bogie in the rolling stock.
virtual std::shared_ptr< Bogie >	GetLast () const noexcept=0
	Gets the last bogie in the rolling stock.
virtual void	Detach (EndType atEnd=EndType::all) noexcept=0
	Detaches a bogie from its parent(s).
virtual bool	Couple (EndType end, Bogie &with, EndType withEnd, bool btriggerPulses=true) noexcept=0
	Couples this Bogie with another at the respective ends.
virtual std::pair< std::shared_ptr< Bogie >, EndType >	GetCoupledBogie (EndType end) const noexcept=0
	Get the coupled Bogie.
virtual void	SetCouplingProps (EndType atEnd, const CouplingProps &props)=0
	Sets the coupling properties.
virtual CouplingProps	GetCouplingProps (EndType atEnd) const noexcept=0
	Gets the coupling properties.
virtual spat::Sphere< Length >	GetCoupling (EndType end) const noexcept=0
virtual void	SetCouplingHeight (EndType end, Length height)=0
	Sets the height of the coupling over the track.
virtual bool	BreakCoupling (EndType atEnd, bool btriggerPulses=true) noexcept=0
	Breaks (not uncouples) the coupling at the enoted end.
virtual Jack &	JackOnMotorStart () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner's motor starts, i.e. if the thrust is set to nonzero value.
virtual Jack &	JackOnMotorStop () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner's motor stops, i.e. if the thrust is set to zero.
virtual Jack &	JackOnBrakeApply () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame's brakes are applied, i.e. if the braking value is set to nonzero.
virtual Jack &	JackOnBrakeRelease () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame's brakes are released, i.e. if the braking value is set to zero.
virtual Jack &	JackOnCouplingForceLimitExceeded (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings experiences a force greater than the maximum coupling force.
virtual Jack &	JackOnNorthSwivelBendingIn () noexcept=0
	Gets a Jack that pulses its Plug if the Bogie's hinge, that connects it to its north child, is bending against its natural turning direction about more than pi/64.
virtual Jack &	JackOnNorthSwivelBendingOut () noexcept=0
	Gets a Jack that pulses its Plug if the Bogie's hinge, that connects it to its north child, is returning from its bending against its natural turning direction.
virtual Jack &	JackOnSouthSwivelBendingIn () noexcept=0
	Gets a Jack that pulses its Plug if the Bogie's hinge, that connects it to its south child, is bending against its natural turning direction about more than pi/64.
virtual Jack &	JackOnSouthSwivelBendingOut () noexcept=0
	Gets a Jack that pulses its Plug if the Bogie's hinge, that connects it to its south child, is returning from its bending against its natural turning direction.
Public Member Functions inherited from trax::RailRunner
virtual const char *	TypeName () const noexcept=0
virtual std::shared_ptr< RailRunner >	This () const noexcept=0
	Gets a shared pointer to this.
virtual bool	IsValid () const noexcept=0
virtual void	Rail (const Location &location, bool bMoveTo=true)=0
	Attaches this RailRunner onto the specified track location.
virtual Location	GetLocation () const noexcept=0
	Gets the track location were the RailRunner is railed.
virtual void	DeRail () noexcept=0
	Take the RailRunner from the track.
virtual bool	IsRailed () const noexcept=0
	Is the RailRunner on a track?
virtual spat::Frame< Length, One >	GetGlobalAnchor () const =0
	Gets the global anchor of the RailRunner.
virtual void	ResetToGlobalAnchor (const spat::Frame< Length, One > &anchorPose)=0
	Sets the position of the RailRunner so that its global anchor alignes to the given global pose.
virtual void	SetVelocity (Velocity velocity)=0
	Sets the velocity of this RailRunner along the track.
virtual Velocity	GetVelocity () const =0
virtual void	TargetVelocity (Velocity velocity)=0
	Sets the target velocity to aim for by using the supplied Thrust() and Brake() settings.
virtual Velocity	TargetVelocity () const noexcept=0
virtual EndType	TargetDirection () const noexcept=0
	Gets the principle direction of movement according to the sign of the target velocity.
virtual Power	MaximumPowerOutput () const noexcept=0
virtual Power	CurrentPowerOutput () const noexcept=0
virtual Velocity	MaximumVelocity () const noexcept=0
virtual void	Thrust (One byfactor)=0
	Sets the fraction of the maximum thrust to apply in order to reach the target velocity specified by TargetVelocity().
virtual One	Thrust () const noexcept=0
	Gets the fraction of the maximum thrust applied.
virtual void	ThrustAbsolute (Force thrust)=0
	Sets the thrust as absolute force values. If the value exceeds MaxThrust() it get clipped.
virtual Force	ThrustAbsolute () const noexcept=0
virtual void	Brake (One byfactor)=0
	Sets the fraction of the maximum braking to apply in order to reach a zero velocity.
virtual One	Brake () const noexcept=0
	Gets the fraction of the maximum braking applied.
virtual void	BrakeAbsolute (Force brake)=0
	Sets the brake as absolute force value. If the value exceeds MaxBrake() it gets clipped.
virtual Force	BrakeAbsolute () const noexcept=0
virtual Force	MaxBrake () const noexcept=0
	Gets the maximal available braking. This value is determined by the properties of the Wheelsets attached to WheelFrames wich in turn are attached to a bogie.
virtual void	ActivateCoupling (EndType end)=0
	Activates the coupling at the respective end of the RailRunner.
virtual void	DeactivateCoupling (EndType end)=0
	Deactivates the coupling at the respective end of the RailRunner.
virtual bool	IsActivated (EndType end) const noexcept=0
virtual bool	Uncouple (EndType end=EndType::all, bool btriggerPulses=true) noexcept=0
	Uncouples the RailRunner at the specified end.
virtual bool	IsCoupled (EndType end=EndType::any) const noexcept=0
	Is the coupling coupled?
virtual Length	GetCouplingHeight (EndType end) const noexcept=0
	Gets the height of the coupling over the track.
virtual Jack &	JackOnCouple (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get coupled.
virtual Jack &	JackOnUnCouple (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get uncoupled or breaks.
virtual Jack &	JackOnCouplingActivated (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get activated.
virtual Jack &	JackOnCouplingDeactivated (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get deactivated.
virtual void	UserData (RailRunnerUserData *pData) noexcept=0
	Sets a pointer to user provided data.
virtual RailRunnerUserData *	UserData () const noexcept=0
virtual Force	MaxThrust () const noexcept=0
virtual Force	MaxThrust (Velocity velocity) const noexcept=0
Public Member Functions inherited from trax::Identified< RailRunner >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete
Public Member Functions inherited from trax::Simulated
virtual bool	Start (Scene &scene)=0
	Called if the simulation is started.
virtual void	Idle ()=0
	Called during the simulation calculations, to perform tasks foreign to the physical simulation.
virtual void	Update (Time dt=fixed_timestep)=0
	Called to update the simulated object after the simuation step finishes.
virtual void	Pause () noexcept=0
	Called if the simulation is paused.
virtual void	Resume () noexcept=0
	Called if the simulation is resumed after pause.
virtual void	Stop () noexcept=0
	Called if the simulation is stopped.

Static Public Member Functions
static dclspc std::shared_ptr< WheelFrame >	Make (Scene &scene, std::shared_ptr< Gestalt > pGestalt=nullptr) noexcept
	Makes a WheelFrame object.
Static Public Member Functions inherited from trax::Bogie
static dclspc std::shared_ptr< Bogie >	Make (Scene &scene, std::shared_ptr< Gestalt > pGestalt=nullptr) noexcept
	Makes a Bogie object.

Additional Inherited Members
Public Types inherited from trax::RailRunner
enum class	EndType : char { none = 0 , north , south , any , all }
	Types of the RailRunner's end's. More...

Detailed Description

A WheelFrame is a Bogie that hosts Wheelsets and a TrackJoint and therefore can directly get attached to a track. It also is responsible for managing a TractionForceCharacteristic and feeding the TrackJoint with data.

Member Function Documentation

◆ Anchor() [1/2]

virtual spat::Frame< Length, One > trax::WheelFrame::Anchor ( ) const

pure virtualnoexcept

Returns: The local anchor actually in use.

◆ Anchor() [2/2]

virtual void trax::WheelFrame::Anchor ( const spat::Frame< Length, One > & anchor )

pure virtualnoexcept

Parameters

anchor Orthogonal frame, describing the anchor in body relative coordinates.

◆ Attach() [1/3]

virtual int trax::WheelFrame::Attach ( const Wheelset & ws )

pure virtual

Attaches a Wheelset to this WheelFrame.

Returns: The index of the attached Wheelset.

Exceptions

std::logic_error	If the WheelFrame is railed
std::invalid_argument	for inavild Wheelset parameters.

◆ Attach() [2/3]

virtual void trax::Bogie::Attach	(	std::shared_ptr< Bogie >	pChildBogie,
		EndType	atEnd )

virtual

Parameters

pChildBogie	Pointer to a Bogie to get attached.
atEnd	The end of this Bogie to attach the child Bogie to.

Exceptions

std::runtime_error if the child Bogie is already attached to a parent at the respective slot or there is already a child bogie attached to this parent Bogie in the respective slot. Also attaching a child and parent twice would count as an error. Also if one of the Bogies is already member of a RollingStock the exception is thrown.

Implements trax::Bogie.

◆ Attach() [3/3]

virtual void trax::Bogie::Attach	(	std::shared_ptr< Bogie >	pChildBogie,
		EndType	atEnd,
		const spat::Frame< Length, One > &	swivelPose )

virtual

Parameters

pChildBogie	Pointer to a Bogie to get attached.
atEnd	The end of this Bogie to attach the child Bogie to.
swivelPose	The pose relative to this Bogie's Body frame through whiches Bin vector the hinge axis will run. It defaults to the child Bogie's Anchor position or the center of its two child swivels.

Exceptions

std::runtime_error if the child Bogie is already attached to a parent at the respective slot or there is already a child bogie attached to this parent Bogie in the respective slot. Also attaching a child and parent twice would count as an error. Also if one of the Bogies is already member of a RollingStock the exception is thrown.

Implements trax::Bogie.

◆ GetTractionForceCharacteristic()

virtual std::shared_ptr< const TractionForceCharacteristic > trax::WheelFrame::GetTractionForceCharacteristic ( ) const

pure virtual

Returns: A pointer to the actually applied characteristic

◆ GetWheelset()

virtual const Wheelset & trax::WheelFrame::GetWheelset ( int idx ) const

pure virtual

Gets the Wheelset denoted by idx.

Parameters

idx	Index of the Wheelset 0 <= idx < CntWheelsets()

◆ IsDerailingEnabled()

virtual bool trax::WheelFrame::IsDerailingEnabled ( ) const

pure virtualnoexcept

Returns: true if the derailing feature is enabled.

◆ Limits()

virtual const TrackJointLimits & trax::WheelFrame::Limits ( ) const

pure virtualnoexcept

Returns: A reference to the WheelFrames Limits.

◆ Make()

dclspc std::shared_ptr< WheelFrame > trax::WheelFrame::Make	(	Scene &	scene,
		std::shared_ptr< Gestalt >	pGestalt = nullptr )

staticnoexcept

Makes a WheelFrame object.

Parameters

scene	The scene to insert the WheelFrame into.
pGestalt	The Gestalt to use. If no Gestalt is given one is automatically created.

◆ SetTractionForceCharacteristic()

virtual std::shared_ptr< const TractionForceCharacteristic > trax::WheelFrame::SetTractionForceCharacteristic ( std::shared_ptr< const TractionForceCharacteristic > pCharacteristic )

pure virtual

applies a TractionForceCharacteristic to the thrust calculations.

The default is a characteristic wich will allways be 1.

Parameters

pCharacteristic Pointer to functor.

Returns: the old value or nullptr if the default was set.

◆ UnflippedAnchor()

virtual spat::Frame< Length, One > trax::WheelFrame::UnflippedAnchor ( ) const

pure virtualnoexcept

Returns: The unflipped local anchor.

Exceptions

std::runtime_error if the wheelframe is not railed.

The documentation for this struct was generated from the following file:

C:/Trend/Development/Trax3/Code/trax/rigid/trains/WheelFrame.h

Classes

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ Anchor() [1/2]

◆ Anchor() [2/2]

◆ Attach() [1/3]

◆ Attach() [2/3]

◆ Attach() [3/3]

◆ GetTractionForceCharacteristic()

◆ GetWheelset()

◆ IsDerailingEnabled()

◆ Limits()

◆ Make()

◆ SetTractionForceCharacteristic()

◆ UnflippedAnchor()
