A Bogie is a RailRunner that can be attached to another Bogie by a swivel and can be coupled to another Bogie by a coupling. More...

#include <C:/Trend/Development/Trax3/Code/trax/rigid/trains/Bogie.h>

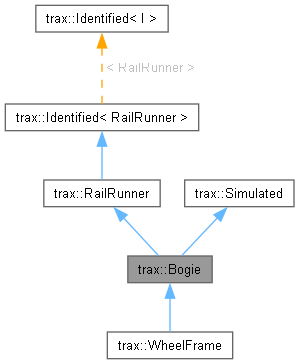

Inheritance diagram for trax::Bogie:

[legend]

Classes
struct	CouplingProps
	Describing data of a coupling. More...

Public Member Functions
virtual std::shared_ptr< Bogie >	ThisBogie () const noexcept=0
	Gets a shared pointer to this.
virtual Gestalt &	GetGestalt () const noexcept=0
virtual RollingStock *	GetRollingStock () const noexcept=0
virtual std::pair< std::shared_ptr< Bogie >, spat::Frame< Length, One > >	GetChild (EndType atEnd) const noexcept=0
	Gets the a pointer to a child bogie and the pose relative to this Bogie, were the swivel axis is running through the Bin vector.
virtual std::pair< std::shared_ptr< Bogie >, spat::Frame< Length, One > >	GetParent (EndType atEnd=EndType::any) const noexcept=0
	Gets the a pointer to a parent bogie and the pose relative to this Bogie, were the swivel axis is running through the Bin vector.
virtual std::shared_ptr< Bogie >	GetFirst () const noexcept=0
	Gets the first bogie in the rolling stock.
virtual std::shared_ptr< Bogie >	GetNext () const noexcept=0
	Gets the next bogie in the rolling stock.
virtual std::shared_ptr< Bogie >	GetPrevious () const noexcept=0
	Gets the previous bogie in the rolling stock.
virtual std::shared_ptr< Bogie >	GetLast () const noexcept=0
	Gets the last bogie in the rolling stock.
virtual void	Detach (EndType atEnd=EndType::all) noexcept=0
	Detaches a bogie from its parent(s).
virtual bool	Couple (EndType end, Bogie &with, EndType withEnd, bool btriggerPulses=true) noexcept=0
	Couples this Bogie with another at the respective ends.
virtual std::pair< std::shared_ptr< Bogie >, EndType >	GetCoupledBogie (EndType end) const noexcept=0
	Get the coupled Bogie.
virtual void	SetCouplingProps (EndType atEnd, const CouplingProps &props)=0
	Sets the coupling properties.
virtual CouplingProps	GetCouplingProps (EndType atEnd) const noexcept=0
	Gets the coupling properties.
virtual spat::Sphere< Length >	GetCoupling (EndType end) const noexcept=0
virtual void	SetCouplingHeight (EndType end, Length height)=0
	Sets the height of the coupling over the track.
virtual bool	BreakCoupling (EndType atEnd, bool btriggerPulses=true) noexcept=0
	Breaks (not uncouples) the coupling at the enoted end.
virtual Jack &	JackOnMotorStart () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner's motor starts, i.e. if the thrust is set to nonzero value.
virtual Jack &	JackOnMotorStop () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner's motor stops, i.e. if the thrust is set to zero.
virtual Jack &	JackOnBrakeApply () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame's brakes are applied, i.e. if the braking value is set to nonzero.
virtual Jack &	JackOnBrakeRelease () noexcept=0
	Gets a Jack that pulses its Plug if the WheelFrame's brakes are released, i.e. if the braking value is set to zero.
virtual Jack &	JackOnCouplingForceLimitExceeded (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings experiences a force greater than the maximum coupling force.
virtual Jack &	JackOnNorthSwivelBendingIn () noexcept=0
	Gets a Jack that pulses its Plug if the Bogie's hinge, that connects it to its north child, is bending against its natural turning direction about more than pi/64.
virtual Jack &	JackOnNorthSwivelBendingOut () noexcept=0
	Gets a Jack that pulses its Plug if the Bogie's hinge, that connects it to its north child, is returning from its bending against its natural turning direction.
virtual Jack &	JackOnSouthSwivelBendingIn () noexcept=0
	Gets a Jack that pulses its Plug if the Bogie's hinge, that connects it to its south child, is bending against its natural turning direction about more than pi/64.
virtual Jack &	JackOnSouthSwivelBendingOut () noexcept=0
	Gets a Jack that pulses its Plug if the Bogie's hinge, that connects it to its south child, is returning from its bending against its natural turning direction.
Attachement
Attaches a Bogie by a swivel as a child to this Bogie. There are two child bogies per parent bogie max. It is possible to attach a Bogie to more than one parent as is the case for Jacobs bogies. Seen from a rolling stock a child bogie at the edge will always be connected with its innermost parent slot (i.e. north_child get assigned to south_parent and vice versa).
virtual void	Attach (std::shared_ptr< Bogie > pChildBogie, EndType atEnd, const spat::Frame< Length, One > &swivelPose)=0
virtual void	Attach (std::shared_ptr< Bogie > pChildBogie, EndType atEnd)=0
Public Member Functions inherited from trax::RailRunner
virtual const char *	TypeName () const noexcept=0
virtual std::shared_ptr< RailRunner >	This () const noexcept=0
	Gets a shared pointer to this.
virtual bool	IsValid () const noexcept=0
virtual void	Rail (const Location &location, bool bMoveTo=true)=0
	Attaches this RailRunner onto the specified track location.
virtual Location	GetLocation () const noexcept=0
	Gets the track location were the RailRunner is railed.
virtual void	DeRail () noexcept=0
	Take the RailRunner from the track.
virtual bool	IsRailed () const noexcept=0
	Is the RailRunner on a track?
virtual spat::Frame< Length, One >	GetGlobalAnchor () const =0
	Gets the global anchor of the RailRunner.
virtual void	ResetToGlobalAnchor (const spat::Frame< Length, One > &anchorPose)=0
	Sets the position of the RailRunner so that its global anchor alignes to the given global pose.
virtual void	SetVelocity (Velocity velocity)=0
	Sets the velocity of this RailRunner along the track.
virtual Velocity	GetVelocity () const =0
virtual void	TargetVelocity (Velocity velocity)=0
	Sets the target velocity to aim for by using the supplied Thrust() and Brake() settings.
virtual Velocity	TargetVelocity () const noexcept=0
virtual EndType	TargetDirection () const noexcept=0
	Gets the principle direction of movement according to the sign of the target velocity.
virtual Power	MaximumPowerOutput () const noexcept=0
virtual Power	CurrentPowerOutput () const noexcept=0
virtual Velocity	MaximumVelocity () const noexcept=0
virtual void	Thrust (One byfactor)=0
	Sets the fraction of the maximum thrust to apply in order to reach the target velocity specified by TargetVelocity().
virtual One	Thrust () const noexcept=0
	Gets the fraction of the maximum thrust applied.
virtual void	ThrustAbsolute (Force thrust)=0
	Sets the thrust as absolute force values. If the value exceeds MaxThrust() it get clipped.
virtual Force	ThrustAbsolute () const noexcept=0
virtual void	Brake (One byfactor)=0
	Sets the fraction of the maximum braking to apply in order to reach a zero velocity.
virtual One	Brake () const noexcept=0
	Gets the fraction of the maximum braking applied.
virtual void	BrakeAbsolute (Force brake)=0
	Sets the brake as absolute force value. If the value exceeds MaxBrake() it gets clipped.
virtual Force	BrakeAbsolute () const noexcept=0
virtual Force	MaxBrake () const noexcept=0
	Gets the maximal available braking. This value is determined by the properties of the Wheelsets attached to WheelFrames wich in turn are attached to a bogie.
virtual void	ActivateCoupling (EndType end)=0
	Activates the coupling at the respective end of the RailRunner.
virtual void	DeactivateCoupling (EndType end)=0
	Deactivates the coupling at the respective end of the RailRunner.
virtual bool	IsActivated (EndType end) const noexcept=0
virtual bool	Uncouple (EndType end=EndType::all, bool btriggerPulses=true) noexcept=0
	Uncouples the RailRunner at the specified end.
virtual bool	IsCoupled (EndType end=EndType::any) const noexcept=0
	Is the coupling coupled?
virtual Length	GetCouplingHeight (EndType end) const noexcept=0
	Gets the height of the coupling over the track.
virtual Jack &	JackOnCouple (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get coupled.
virtual Jack &	JackOnUnCouple (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get uncoupled or breaks.
virtual Jack &	JackOnCouplingActivated (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get activated.
virtual Jack &	JackOnCouplingDeactivated (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get deactivated.
virtual void	UserData (RailRunnerUserData *pData) noexcept=0
	Sets a pointer to user provided data.
virtual RailRunnerUserData *	UserData () const noexcept=0
virtual Force	MaxThrust () const noexcept=0
virtual Force	MaxThrust (Velocity velocity) const noexcept=0
Public Member Functions inherited from trax::Identified< RailRunner >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete
Public Member Functions inherited from trax::Simulated
virtual bool	Start (Scene &scene)=0
	Called if the simulation is started.
virtual void	Idle ()=0
	Called during the simulation calculations, to perform tasks foreign to the physical simulation.
virtual void	Update (Time dt=fixed_timestep)=0
	Called to update the simulated object after the simuation step finishes.
virtual void	Pause () noexcept=0
	Called if the simulation is paused.
virtual void	Resume () noexcept=0
	Called if the simulation is resumed after pause.
virtual void	Stop () noexcept=0
	Called if the simulation is stopped.

Static Public Member Functions
static dclspc std::shared_ptr< Bogie >	Make (Scene &scene, std::shared_ptr< Gestalt > pGestalt=nullptr) noexcept
	Makes a Bogie object.

Additional Inherited Members
Public Types inherited from trax::RailRunner
enum class	EndType : char { none = 0 , north , south , any , all }
	Types of the RailRunner's end's. More...

Detailed Description

A Bogie is a RailRunner that can be attached to another Bogie by a swivel and can be coupled to another Bogie by a coupling.

///  <-- north              south -->
///
///          |        |
///       [      B       ]
///    |    |          |    |
///   [     A    ] [   C     ]
/// _____O__O__O_____O__O__O______________
///
/// '|' are the north and south swivel hinges (some of them not connected).
///

The north and south parent/child slots are populated in the order along the track. So the north child bogie would have been connected by its south parent slot and the other way around. As a rule north and south and parent and child connects respectively; all other combinations are not allowed. In reality there are configurations with three bogies, sharing one parent, e.g. SBB Re 6/6, which carries a Bo'Bo'Bo' configuration, but the center child bogie is not a Bogie in our sense, since it is not rotatable, but shifts aside. These wheels would be attached to the parent.

Member Function Documentation

◆ Attach() [1/2]

virtual void trax::Bogie::Attach	(	std::shared_ptr< Bogie >	pChildBogie,
		EndType	atEnd )

pure virtual

Parameters

pChildBogie	Pointer to a Bogie to get attached.
atEnd	The end of this Bogie to attach the child Bogie to.

Exceptions

std::runtime_error if the child Bogie is already attached to a parent at the respective slot or there is already a child bogie attached to this parent Bogie in the respective slot. Also attaching a child and parent twice would count as an error. Also if one of the Bogies is already member of a RollingStock the exception is thrown.

Implemented in trax::WheelFrame.

◆ Attach() [2/2]

virtual void trax::Bogie::Attach	(	std::shared_ptr< Bogie >	pChildBogie,
		EndType	atEnd,
		const spat::Frame< Length, One > &	swivelPose )

pure virtual

Parameters

pChildBogie	Pointer to a Bogie to get attached.
atEnd	The end of this Bogie to attach the child Bogie to.
swivelPose	The pose relative to this Bogie's Body frame through whiches Bin vector the hinge axis will run. It defaults to the child Bogie's Anchor position or the center of its two child swivels.

Exceptions

std::runtime_error if the child Bogie is already attached to a parent at the respective slot or there is already a child bogie attached to this parent Bogie in the respective slot. Also attaching a child and parent twice would count as an error. Also if one of the Bogies is already member of a RollingStock the exception is thrown.

Implemented in trax::WheelFrame.

◆ BreakCoupling()

virtual bool trax::Bogie::BreakCoupling	(	EndType	atEnd,
		bool	btriggerPulses = true )

pure virtualnoexcept

Breaks (not uncouples) the coupling at the enoted end.

Same as uncouple but sends ForceLimitExceeded pulse as if the coupling would have actually broken due to overstrech.

Parameters

atEnd	Coupling to break.
btriggerPulses	If true the respective jacks are pulsing.

Returns: True if a coupling was defined and actually coupled.

◆ Couple()

virtual bool trax::Bogie::Couple	(	EndType	end,
		Bogie &	with,
		EndType	withEnd,
		bool	btriggerPulses = true )

pure virtualnoexcept

Couples this Bogie with another at the respective ends.

It doesn't matter, wether the two couplings are near each other or not. The coupling will try to maintain the actual distance of the two Bogies's ends. The coupling attempt will fail if the two Bogies are already coupled (with different partners or the same parters at different ends) or if one of the couplings is deactivated. An coupling attempt will also fail, when two couplings wear different coupling type indices.

See also: Bogie::CouplingProps.

Parameters

end	End of this Bogie.
with	Other Bogie.
withEnd	Other Bogie's end to couple with.
btriggerPulses	If true the respective JackOnCouple jacks are pulsing.

Returns: true if a new coupling was established or the two Bogies were already properly coupled.

◆ GetChild()

virtual std::pair< std::shared_ptr< Bogie >, spat::Frame< Length, One > > trax::Bogie::GetChild ( EndType atEnd ) const

pure virtualnoexcept

Gets the a pointer to a child bogie and the pose relative to this Bogie, were the swivel axis is running through the Bin vector.

Parameters

atEnd The child on the north or south end of this Bogie.

Returns: The north or the south child bogie and the relative swivel position.

◆ GetCoupledBogie()

virtual std::pair< std::shared_ptr< Bogie >, EndType > trax::Bogie::GetCoupledBogie ( EndType end ) const

pure virtualnoexcept

Get the coupled Bogie.

Parameters

end	End type of this Bogie.

Returns: A pointer to the other Bogie coupled at end, or
nullptr if none and the other Bogie's end type.

◆ GetNext()

virtual std::shared_ptr< Bogie > trax::Bogie::GetNext ( ) const

pure virtualnoexcept

Gets the next bogie in the rolling stock.

The bogies of an bogie arrangement form a unique order along the track.

◆ GetParent()

virtual std::pair< std::shared_ptr< Bogie >, spat::Frame< Length, One > > trax::Bogie::GetParent ( EndType atEnd = EndType::any ) const

pure virtualnoexcept

Gets the a pointer to a parent bogie and the
pose relative to this Bogie, were the swivel axis is running through the Bin vector.

Parameters

atEnd The parent on the north or south end of this Bogie.

Returns: The north or the south parent bogie and the relative swivel position.

◆ GetPrevious()

virtual std::shared_ptr< Bogie > trax::Bogie::GetPrevious ( ) const

pure virtualnoexcept

Gets the previous bogie in the rolling stock.

The bogies of an bogie arrangement form a unique order along the track.

◆ GetRollingStock()

virtual RollingStock * trax::Bogie::GetRollingStock ( ) const

pure virtualnoexcept

Returns: The RollingStock this Bogie is member of or nullptr if none.

◆ Make()

dclspc std::shared_ptr< Bogie > trax::Bogie::Make	(	Scene &	scene,
		std::shared_ptr< Gestalt >	pGestalt = nullptr )

staticnoexcept

Makes a Bogie object.

Parameters

scene	The scene to put the Bogie into.
pGestalt	The Gestalt to use. If no Gestalt is given one is automatically created.

◆ SetCouplingHeight()

virtual void trax::Bogie::SetCouplingHeight	(	EndType	end,
		Length	height )

pure virtual

Sets the height of the coupling over the track.

This changes the CouplingProps::Position of the coupling.

Parameters

end	End of this TrainComponent to set the coupling height for.
height	The height of the coupling over the track.

Exceptions

std::runtime_error if the coupling is already coupled or the Bogie neither is a WheelFrame nor has a northern child WheelFrame.

◆ SetCouplingProps()

virtual void trax::Bogie::SetCouplingProps	(	EndType	atEnd,
		const CouplingProps &	props )

pure virtual

Sets the coupling properties.

Exceptions

std::runtime_error if the coupling is already coupled.

The documentation for this struct was generated from the following file:

C:/Trend/Development/Trax3/Code/trax/rigid/trains/Bogie.h

Classes

Public Member Functions

Static Public Member Functions

Additional Inherited Members

Detailed Description

Member Function Documentation

◆ Attach() [1/2]

◆ Attach() [2/2]

◆ BreakCoupling()

◆ Couple()

◆ GetChild()

◆ GetCoupledBogie()

◆ GetNext()

◆ GetParent()

◆ GetPrevious()

◆ GetRollingStock()

◆ Make()

◆ SetCouplingHeight()

◆ SetCouplingProps()
