A RollingStock is a RailRunner that manages one or more connected Bogies. More...

#include <C:/Trend/Development/Trax3/Code/trax/rigid/trains/RollingStock.h>

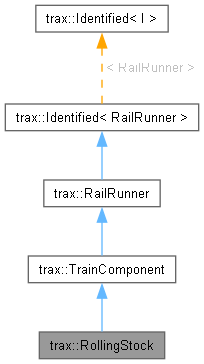

Inheritance diagram for trax::RollingStock:

[legend]

Public Member Functions
virtual std::shared_ptr< RollingStock >	ThisRollingStock () const noexcept=0
	Gets a shared pointer to this.
virtual bool	Attach (Bogie &bogie) noexcept=0
	Attaches a configured Bogie arrangement to the RollingStock.
virtual int	GetNumberOfBogies () const noexcept=0
virtual Bogie &	GetBogie (int idx) const =0
	Gets the Bogie with index number idx.
virtual int	GetNumberOfTopmostParents () const noexcept=0
virtual Bogie &	GetTopmostParent (int idx=0) const =0
	Gets the topmost parent Bogie.
virtual int	GetNumberOfWheelFrames () const noexcept=0
virtual WheelFrame &	GetWheelFrame (int idx) const =0
	Gets the WheelFrame at index, counting from north to south.
virtual std::pair< std::shared_ptr< RollingStock >, EndType >	GetCoupledRollingStock (EndType end) const noexcept=0
	Get the coupled RollingStock.
virtual Jack &	JackOnHoot () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner's Hoot() member is called.
virtual Jack &	JackOnSteam () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner's Steam() member is called.
Public Member Functions inherited from trax::TrainComponent
virtual std::shared_ptr< TrainComponent >	ThisTrainComponent () const noexcept=0
	Gets a shared pointer to this.
virtual Train *	GetTrain () const noexcept=0
virtual Orientation	GetOrientation () const noexcept=0
virtual std::pair< Train *, Orientation >	GetTopmostTrain () const noexcept=0
virtual bool	IsFinal () const noexcept=0
virtual bool	IsParent (const Train &train) const noexcept=0
virtual void	Rail (const Location &location, bool bMoveTo, DistanceType distance)=0
	Rails this TrainComponent at the given location.
virtual void	ResetToGlobalAnchor (const spat::Frame< Length, One > &anchorPose, DistanceType distance)=0
virtual bool	Couple (EndType end, TrainComponent &with, EndType withEnd, bool btriggerPulses=true) noexcept=0
	Couples this TrainComponent with another at the respective ends.
virtual std::pair< std::shared_ptr< TrainComponent >, EndType >	GetCoupledTrainComponent (EndType end) const noexcept=0
	Get the coupled TrainComponent.
virtual Length	GetCouplingLength (EndType end, DistanceType distance=DistanceType::max) const noexcept=0
	Gets the length of the coupling from TrainComponent edge to TrainComponent edge.
virtual Length	GetOverhang (EndType end, DistanceType distance=DistanceType::actual) const noexcept=0
	Gets the distances from the track location (i.e. global anchor) to the north or south tip of the RailRunner.
virtual Length	GetLength (DistanceType distance=DistanceType::actual) const noexcept=0
	Gets the total length of this RailRunner.
virtual Mass	GetTotalMass () const noexcept=0
virtual Jack &	JackOnRail () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner gets railed on a track.
virtual Jack &	JackOnDerail () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner derails.
virtual void	Rail (const Location &location, bool bMoveTo=true)=0
	Attaches this RailRunner onto the specified track location.
virtual void	ResetToGlobalAnchor (const spat::Frame< Length, One > &anchorPose)=0
	Sets the position of the RailRunner so that its global anchor alignes to the given global pose.
virtual std::pair< Bogie &, EndType >	GetTipAt (EndType end)=0
virtual std::pair< const Bogie &, EndType >	GetTipAt (EndType end) const =0
Public Member Functions inherited from trax::RailRunner
virtual const char *	TypeName () const noexcept=0
virtual std::shared_ptr< RailRunner >	This () const noexcept=0
	Gets a shared pointer to this.
virtual bool	IsValid () const noexcept=0
virtual Location	GetLocation () const noexcept=0
	Gets the track location were the RailRunner is railed.
virtual void	DeRail () noexcept=0
	Take the RailRunner from the track.
virtual bool	IsRailed () const noexcept=0
	Is the RailRunner on a track?
virtual spat::Frame< Length, One >	GetGlobalAnchor () const =0
	Gets the global anchor of the RailRunner.
virtual void	SetVelocity (Velocity velocity)=0
	Sets the velocity of this RailRunner along the track.
virtual Velocity	GetVelocity () const =0
virtual void	TargetVelocity (Velocity velocity)=0
	Sets the target velocity to aim for by using the supplied Thrust() and Brake() settings.
virtual Velocity	TargetVelocity () const noexcept=0
virtual EndType	TargetDirection () const noexcept=0
	Gets the principle direction of movement according to the sign of the target velocity.
virtual Power	MaximumPowerOutput () const noexcept=0
virtual Power	CurrentPowerOutput () const noexcept=0
virtual Velocity	MaximumVelocity () const noexcept=0
virtual void	Thrust (One byfactor)=0
	Sets the fraction of the maximum thrust to apply in order to reach the target velocity specified by TargetVelocity().
virtual One	Thrust () const noexcept=0
	Gets the fraction of the maximum thrust applied.
virtual void	ThrustAbsolute (Force thrust)=0
	Sets the thrust as absolute force values. If the value exceeds MaxThrust() it get clipped.
virtual Force	ThrustAbsolute () const noexcept=0
virtual void	Brake (One byfactor)=0
	Sets the fraction of the maximum braking to apply in order to reach a zero velocity.
virtual One	Brake () const noexcept=0
	Gets the fraction of the maximum braking applied.
virtual void	BrakeAbsolute (Force brake)=0
	Sets the brake as absolute force value. If the value exceeds MaxBrake() it gets clipped.
virtual Force	BrakeAbsolute () const noexcept=0
virtual Force	MaxBrake () const noexcept=0
	Gets the maximal available braking. This value is determined by the properties of the Wheelsets attached to WheelFrames wich in turn are attached to a bogie.
virtual void	ActivateCoupling (EndType end)=0
	Activates the coupling at the respective end of the RailRunner.
virtual void	DeactivateCoupling (EndType end)=0
	Deactivates the coupling at the respective end of the RailRunner.
virtual bool	IsActivated (EndType end) const noexcept=0
virtual bool	Uncouple (EndType end=EndType::all, bool btriggerPulses=true) noexcept=0
	Uncouples the RailRunner at the specified end.
virtual bool	IsCoupled (EndType end=EndType::any) const noexcept=0
	Is the coupling coupled?
virtual Length	GetCouplingHeight (EndType end) const noexcept=0
	Gets the height of the coupling over the track.
virtual Jack &	JackOnCouple (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get coupled.
virtual Jack &	JackOnUnCouple (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get uncoupled or breaks.
virtual Jack &	JackOnCouplingActivated (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get activated.
virtual Jack &	JackOnCouplingDeactivated (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get deactivated.
virtual void	UserData (RailRunnerUserData *pData) noexcept=0
	Sets a pointer to user provided data.
virtual RailRunnerUserData *	UserData () const noexcept=0
virtual Force	MaxThrust () const noexcept=0
virtual Force	MaxThrust (Velocity velocity) const noexcept=0
Public Member Functions inherited from trax::Identified< RailRunner >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Static Public Member Functions
static dclspc std::shared_ptr< RollingStock >	Make () noexcept
	Makes a RollingStock object.

Additional Inherited Members
Public Types inherited from trax::TrainComponent
enum class	DistanceType { actual , min , max , half }
Public Types inherited from trax::RailRunner
enum class	EndType : char { none = 0 , north , south , any , all }
	Types of the RailRunner's end's. More...
Protected Member Functions inherited from trax::TrainComponent
virtual void	SetTrain (Train *pTrain) noexcept=0
virtual void	SetOrientation (Orientation orientation) noexcept=0

Detailed Description

A RollingStock is a RailRunner that manages one or more connected Bogies.

Member Function Documentation

◆ Attach()

virtual bool trax::RollingStock::Attach ( Bogie & bogie )

pure virtualnoexcept

Attaches a configured Bogie arrangement to the RollingStock.

It is only necessarry to call this method once; from a bogie arrangement, any Bogie can be taken, to make the whole arrangement be managed by the RollingStock. The Bogie arrangement is expected to be build after the rules

See also: Bogie. The couplings should be properly positioned (or canceled by index < 0) to make geometrical values like length calculatable.

Parameters

bogie The Bogie arrangement to be managed by the RollingStock. Any Bogie out of the arrangement will do here.

Returns: true if the Bogie arrangement was successfully attached.

◆ GetBogie()

virtual Bogie & trax::RollingStock::GetBogie ( int idx ) const

pure virtual

Gets the Bogie with index number idx.

The idx count from north to south.

Parameters

idx	The index of the Bogie. 0 is the northernmost of several Bogies.

Exceptions

std::out_of_range if idx is negative or idx >= GetNumberOfBogies().

◆ GetCoupledRollingStock()

virtual std::pair< std::shared_ptr< RollingStock >, EndType > trax::RollingStock::GetCoupledRollingStock ( EndType end ) const

pure virtualnoexcept

Get the coupled RollingStock.

Parameters

end	End type of this RollingStock.

Returns: A pointer to the other RollingStock coupled at end, or
nullptr if none and the other RollingStock's end type.

◆ GetNumberOfBogies()

virtual int trax::RollingStock::GetNumberOfBogies ( ) const

pure virtualnoexcept

Returns: The number of bogies.

◆ GetNumberOfTopmostParents()

virtual int trax::RollingStock::GetNumberOfTopmostParents ( ) const

pure virtualnoexcept

Returns: The number of topmost parents.

◆ GetNumberOfWheelFrames()

virtual int trax::RollingStock::GetNumberOfWheelFrames ( ) const

pure virtualnoexcept

Returns: The number of WheelFrames.

◆ GetTopmostParent()

virtual Bogie & trax::RollingStock::GetTopmostParent ( int idx = 0 ) const

pure virtual

Gets the topmost parent Bogie.

For rolling stock with jakobs bogies there can be more than one parent Bogie.

Parameters

idx	The index of the parent Bogie. 0 is the northernmost of several top level Bogies.

Exceptions

std::out_of_range if idx is negative or idx >= GetNumberOfParents().

◆ GetWheelFrame()

virtual WheelFrame & trax::RollingStock::GetWheelFrame ( int idx ) const

pure virtual

Gets the WheelFrame at index, counting from north to south.

Parameters

idx	The index of the WheelFrame. 0 is the northernmost.

Exceptions

std::out_of_range if idx is negative or idx >= GetNumberOfWheelFrame().

The documentation for this struct was generated from the following file:

C:/Trend/Development/Trax3/Code/trax/rigid/trains/RollingStock.h
