A TrainComponent is a part of a Train. More...

#include <C:/Trend/Development/Trax3/Code/trax/rigid/trains/TrainComponent.h>

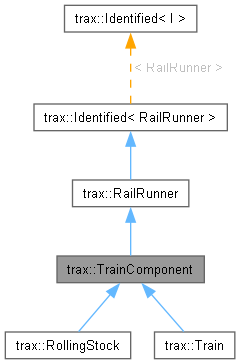

Inheritance diagram for trax::TrainComponent:

[legend]

Classes
struct	Coupling
	Structure describing a coupling between two TrainComponents. More...

Public Types
enum class	DistanceType { actual , min , max , half }
Public Types inherited from trax::RailRunner
enum class	EndType : char { none = 0 , north , south , any , all }
	Types of the RailRunner's end's. More...

Public Member Functions
virtual std::shared_ptr< TrainComponent >	ThisTrainComponent () const noexcept=0
	Gets a shared pointer to this.
virtual Train *	GetTrain () const noexcept=0
virtual Orientation	GetOrientation () const noexcept=0
virtual std::pair< Train *, Orientation >	GetTopmostTrain () const noexcept=0
virtual bool	IsFinal () const noexcept=0
virtual bool	IsParent (const Train &train) const noexcept=0
virtual void	Rail (const Location &location, bool bMoveTo, DistanceType distance)=0
	Rails this TrainComponent at the given location.
virtual void	ResetToGlobalAnchor (const spat::Frame< Length, One > &anchorPose, DistanceType distance)=0
virtual bool	Couple (EndType end, TrainComponent &with, EndType withEnd, bool btriggerPulses=true) noexcept=0
	Couples this TrainComponent with another at the respective ends.
virtual std::pair< std::shared_ptr< TrainComponent >, EndType >	GetCoupledTrainComponent (EndType end) const noexcept=0
	Get the coupled TrainComponent.
virtual Length	GetCouplingLength (EndType end, DistanceType distance=DistanceType::max) const noexcept=0
	Gets the length of the coupling from TrainComponent edge to TrainComponent edge.
virtual Length	GetOverhang (EndType end, DistanceType distance=DistanceType::actual) const noexcept=0
	Gets the distances from the track location (i.e. global anchor) to the north or south tip of the RailRunner.
virtual Length	GetLength (DistanceType distance=DistanceType::actual) const noexcept=0
	Gets the total length of this RailRunner.
virtual Mass	GetTotalMass () const noexcept=0
virtual Jack &	JackOnRail () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner gets railed on a track.
virtual Jack &	JackOnDerail () noexcept=0
	Gets a Jack that pulses its Plug if the RailRunner derails.
virtual void	Rail (const Location &location, bool bMoveTo=true)=0
	Attaches this RailRunner onto the specified track location.
virtual void	ResetToGlobalAnchor (const spat::Frame< Length, One > &anchorPose)=0
	Sets the position of the RailRunner so that its global anchor alignes to the given global pose.
Train Tip
Gets a reference to the Bogie which makes the outmost tip of this RailRunner. For a RollingStock and a Train it would get the Bogie with the coupling that reaches out the furthest in the denoted direction.
virtual std::pair< Bogie &, EndType >	GetTipAt (EndType end)=0
virtual std::pair< const Bogie &, EndType >	GetTipAt (EndType end) const =0
Public Member Functions inherited from trax::RailRunner
virtual const char *	TypeName () const noexcept=0
virtual std::shared_ptr< RailRunner >	This () const noexcept=0
	Gets a shared pointer to this.
virtual bool	IsValid () const noexcept=0
virtual Location	GetLocation () const noexcept=0
	Gets the track location were the RailRunner is railed.
virtual void	DeRail () noexcept=0
	Take the RailRunner from the track.
virtual bool	IsRailed () const noexcept=0
	Is the RailRunner on a track?
virtual spat::Frame< Length, One >	GetGlobalAnchor () const =0
	Gets the global anchor of the RailRunner.
virtual void	SetVelocity (Velocity velocity)=0
	Sets the velocity of this RailRunner along the track.
virtual Velocity	GetVelocity () const =0
virtual void	TargetVelocity (Velocity velocity)=0
	Sets the target velocity to aim for by using the supplied Thrust() and Brake() settings.
virtual Velocity	TargetVelocity () const noexcept=0
virtual EndType	TargetDirection () const noexcept=0
	Gets the principle direction of movement according to the sign of the target velocity.
virtual Power	MaximumPowerOutput () const noexcept=0
virtual Power	CurrentPowerOutput () const noexcept=0
virtual Velocity	MaximumVelocity () const noexcept=0
virtual void	Thrust (One byfactor)=0
	Sets the fraction of the maximum thrust to apply in order to reach the target velocity specified by TargetVelocity().
virtual One	Thrust () const noexcept=0
	Gets the fraction of the maximum thrust applied.
virtual void	ThrustAbsolute (Force thrust)=0
	Sets the thrust as absolute force values. If the value exceeds MaxThrust() it get clipped.
virtual Force	ThrustAbsolute () const noexcept=0
virtual void	Brake (One byfactor)=0
	Sets the fraction of the maximum braking to apply in order to reach a zero velocity.
virtual One	Brake () const noexcept=0
	Gets the fraction of the maximum braking applied.
virtual void	BrakeAbsolute (Force brake)=0
	Sets the brake as absolute force value. If the value exceeds MaxBrake() it gets clipped.
virtual Force	BrakeAbsolute () const noexcept=0
virtual Force	MaxBrake () const noexcept=0
	Gets the maximal available braking. This value is determined by the properties of the Wheelsets attached to WheelFrames wich in turn are attached to a bogie.
virtual void	ActivateCoupling (EndType end)=0
	Activates the coupling at the respective end of the RailRunner.
virtual void	DeactivateCoupling (EndType end)=0
	Deactivates the coupling at the respective end of the RailRunner.
virtual bool	IsActivated (EndType end) const noexcept=0
virtual bool	Uncouple (EndType end=EndType::all, bool btriggerPulses=true) noexcept=0
	Uncouples the RailRunner at the specified end.
virtual bool	IsCoupled (EndType end=EndType::any) const noexcept=0
	Is the coupling coupled?
virtual Length	GetCouplingHeight (EndType end) const noexcept=0
	Gets the height of the coupling over the track.
virtual Jack &	JackOnCouple (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get coupled.
virtual Jack &	JackOnUnCouple (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get uncoupled or breaks.
virtual Jack &	JackOnCouplingActivated (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get activated.
virtual Jack &	JackOnCouplingDeactivated (EndType end)=0
	Gets a Jack that pulses its Plug if one (or any) of the RailRunner's outmost couplings get deactivated.
virtual void	UserData (RailRunnerUserData *pData) noexcept=0
	Sets a pointer to user provided data.
virtual RailRunnerUserData *	UserData () const noexcept=0
virtual Force	MaxThrust () const noexcept=0
virtual Force	MaxThrust (Velocity velocity) const noexcept=0
Public Member Functions inherited from trax::Identified< RailRunner >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Protected Member Functions
virtual void	SetTrain (Train *pTrain) noexcept=0
virtual void	SetOrientation (Orientation orientation) noexcept=0

Friends
class	Train_Imp

Detailed Description

A TrainComponent is a part of a Train.

Member Function Documentation

◆ Couple()

virtual bool trax::TrainComponent::Couple	(	EndType	end,
		TrainComponent &	with,
		EndType	withEnd,
		bool	btriggerPulses = true )

pure virtualnoexcept

Couples this TrainComponent with another at the respective ends.

It doesn't matter, wether the two couplings are near each other or not. The coupling will try to maintain the actual distance of the two TrainComponent's ends. The coupling attempt will fail if the two TrainComponent are already coupled (with different partners or the same parters at different ends) or if one of the couplings is deactivated. An coupling attempt will also fail, when two couplings wear different coupling type indices.

See also: Bogie::CouplingProps.

Parameters

end	End of this TrainComponent.
with	Other TrainComponent.
withEnd	Other TrainComponent's end to couple with.
btriggerPulses	If true the respective JackOnCouple jacks are pulsing.

Returns: true if a new coupling was established or the two TrainComponent were already properly coupled.

Implemented in trax::Train.

◆ GetCoupledTrainComponent()

virtual std::pair< std::shared_ptr< TrainComponent >, EndType > trax::TrainComponent::GetCoupledTrainComponent ( EndType end ) const

pure virtualnoexcept

Get the coupled TrainComponent.

The coupled train component is the parent to the Bogie coupled at this TrainComponent's tip Bogie, that is topmost in its hierarchy of TrainComponents, but not also a parent to this TrainComponent.

Parameters

end	End type of this TrainComponent.

Returns: A pointer to the other TrainComponent coupled at end, or
nullptr if none and the other TrainComponent's end type.

◆ GetCouplingLength()

virtual Length trax::TrainComponent::GetCouplingLength	(	EndType	end,
		DistanceType	distance = DistanceType::max ) const

pure virtualnoexcept

Gets the length of the coupling from TrainComponent edge to TrainComponent edge.

This is the length of the coupling, not the distance between the two TrainComponents. It is the sum of the two radii of the couplings trigger spheres; or 0_m if not coupled.

Parameters

end	End of this TrainComponent to get the coupling length for.
distance	The type of the data of the coupling to get the length for.

Returns: The length of the coupling at the denoted end.

◆ GetLength()

virtual Length trax::TrainComponent::GetLength ( DistanceType distance = DistanceType::actual ) const

pure virtualnoexcept

Gets the total length of this RailRunner.

Returns: the sum of the two overhangs.

◆ GetOrientation()

virtual Orientation trax::TrainComponent::GetOrientation ( ) const

pure virtualnoexcept

Returns: the orientation of this component in the Train.

◆ GetOverhang()

virtual Length trax::TrainComponent::GetOverhang	(	EndType	end,
		DistanceType	distance = DistanceType::actual ) const

pure virtualnoexcept

Gets the distances from the track location (i.e. global anchor) to the north or south tip of the RailRunner.

The tip of a RailRunner is at the outmost coupling position.

Returns: southern overhang.

◆ GetTipAt() [1/2]

virtual std::pair< const Bogie &, EndType > trax::TrainComponent::GetTipAt ( EndType end ) const

pure virtual

Parameters

end	Denotes the Railrunner's end to search for the outmost Bogie.

Exceptions

std::invalid_argument if end is none.

Returns: The Bogie at the tip, and the end type of the coupling at the tip.

◆ GetTipAt() [2/2]

virtual std::pair< Bogie &, EndType > trax::TrainComponent::GetTipAt ( EndType end )

pure virtual

Parameters

end	Denotes the Railrunner's end to search for the outmost Bogie.

Exceptions

std::invalid_argument if end is none.

Returns: The Bogie at the tip, and the end type of the coupling at the tip.

◆ GetTopmostTrain()

virtual std::pair< Train *, Orientation > trax::TrainComponent::GetTopmostTrain ( ) const

pure virtualnoexcept

Returns: The topmost parent Train in the TrainComponent hierarchy and this components orientation relative to it.

◆ GetTotalMass()

virtual Mass trax::TrainComponent::GetTotalMass ( ) const

pure virtualnoexcept

Returns: the total mass of this TrainComponent.

◆ GetTrain()

virtual Train * trax::TrainComponent::GetTrain ( ) const

pure virtualnoexcept

Returns: the train this component belongs to.

◆ IsFinal()

virtual bool trax::TrainComponent::IsFinal ( ) const

pure virtualnoexcept

Returns: true if this can not hold TrainComponents itself.

◆ IsParent()

virtual bool trax::TrainComponent::IsParent ( const Train & train ) const

pure virtualnoexcept

Returns: true if train is a direct or indirect parent train of this component.

◆ Rail() [1/2]

virtual void trax::TrainComponent::Rail	(	const Location &	location,
		bool	bMoveTo,
		DistanceType	distance )

pure virtual

Rails this TrainComponent at the given location.

If bMoveTo is true, the TrainComponent will be moved to the location, the internal distances of coupled components are resolved by 'distance' if this happens to be a Train.

◆ Rail() [2/2]

virtual void trax::RailRunner::Rail	(	const Location &	location,
		bool	bMoveTo = true )

virtual

Attaches this RailRunner onto the specified track location.

The trackjoints of the WheelFrames will be attached to the track at locations that might differ from location, depending in the RailRunners definition of its location on the tracks. If a WheelFrame gets railed, in this railing process, its JackOnRail will pulse. If some railing is present already it gets overriden.

Parameters

location	The location to rail this RailRunner. If railing is successful this location will be returned by GetLocation().
bMoveTo	If true the RailRunner will be moved to the transitional 3D pose of location, prior to railing. If this is a Train, the actual coupling distances will be respected. See

See also: TrainComponent::Rail for details.

Exceptions

std::out_of_range	if a dead end is encountered on the track system.
std::logic_error	If there are no suitable WheelFrame children in the RailRunner to rail.
std::invalid_argument	If location is not on a track.
std::out_of_range	If the railrunner would end up off the track system.
std::logic_error	If the present configuration does not allow railing.

Implements trax::RailRunner.

◆ ResetToGlobalAnchor()

virtual void trax::RailRunner::ResetToGlobalAnchor ( const spat::Frame< Length, One > & anchorPose )

virtual

Sets the position of the RailRunner so that its global anchor alignes to the given global pose.

The whole RailRunner will be moved so the assigned anchor alignes with the given global pose. This can be used to relocate the RailRunner when not railed.

Parameters

anchorPose The pose to align the global anchor with.

Exceptions

std::logic_error if there is no privilged anchor.

Implements trax::RailRunner.

The documentation for this struct was generated from the following file:

C:/Trend/Development/Trax3/Code/trax/rigid/trains/TrainComponent.h

Classes

Public Types

Public Member Functions

Protected Member Functions

Friends

Detailed Description

Member Function Documentation

◆ Couple()

◆ GetCoupledTrainComponent()

◆ GetCouplingLength()

◆ GetLength()

◆ GetOrientation()

◆ GetOverhang()

◆ GetTipAt() [1/2]

◆ GetTipAt() [2/2]

◆ GetTopmostTrain()

◆ GetTotalMass()

◆ GetTrain()

◆ IsFinal()

◆ IsParent()

◆ Rail() [1/2]

◆ Rail() [2/2]

◆ ResetToGlobalAnchor()
