trax::AnimatedCamera Struct Reference

Interface for movable cameras. More...

#include <C:/Trend/Development/Trax3/Code/trax/rigid/modules/Camera.h>

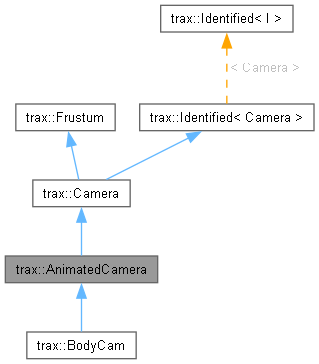

Inheritance diagram for trax::AnimatedCamera:

Public Member Functions
virtual void	AttachTo (std::shared_ptr< Module > pModule)=0
	If attached to a module, the camera will stay on top of the terrain and will not penetrate geoms in the scene.
virtual std::shared_ptr< Module >	GetModule () const =0
virtual std::vector< GeomList * >	OverlapQuery (unsigned int filterflags) const =0
virtual GeomList *	OverlapQueryAny (unsigned int filterflags) const =0
virtual void	Update ()=0
	Updates the camera by the fixed time step.
virtual void	StepBack ()=0
	Reverts the last positional change done by Update().
virtual void	Stop ()=0
	Stops any animated inertial movement of the camera.
virtual void	Reset ()=0
	Resets the position of the camera.
virtual void	MaximumLinearVelocity (Velocity maxVelocity)=0
	Sets a maximum velocity that will not be exceeded.
virtual Velocity	MaximumLinearVelocity () const =0
virtual void	SetVelocity (const spat::Vector< Velocity > &velocity)=0
	Set the camera velocity directly.
virtual void	SetVelocity (const spat::Vector< Velocity > &linearVelocity, const spat::Vector< AngularVelocity > &rotationalVelocity)=0
virtual void	RotationalVelocity (const spat::Vector< AngularVelocity > &rotvel)=0
	Set the rotational velocity directly.
virtual Camera &	operator= (const Camera &camera)=0
Controller Input
Call these functions to provide the (scaled) input from the camera controller. call these functions with the input gotten from the controllers like keyboard, mouse or joystick. The linear controller values are added to the linear velocities of the camera.
virtual void	ControllerTranslateX (Velocity dx)=0
virtual void	ControllerTranslateY (Velocity dy)=0
virtual void	ControllerTranslateZ (Velocity dz)=0
virtual void	ControllerRotateX (AngularVelocity dx)=0
virtual void	ControllerRotateY (AngularVelocity dy)=0
virtual void	ControllerRotateZ (AngularVelocity dz)=0
Damping
Attenuation of movement
virtual void	DampingTranslate (Real damping)=0
virtual Real	DampingTranslate () const =0
virtual void	DampingRotate (Real damping)=0
virtual Real	DampingRotate () const =0
Public Member Functions inherited from trax::Camera
virtual const char *	TypeName () const noexcept=0
virtual CameraType	GetType () const =0
virtual void	SetFrame (const spat::Frame< Length, One > &frame)=0
	Sets position and orientation (pose) in global coordinates.
virtual spat::Vector< Velocity >	GetVelocity () const =0
	Gets the current velocity.
virtual void	EyePoint (const spat::Position< Length > &eyePoint)=0
	Sets the camera to look at eyePoint.
virtual spat::Position< Length >	EyePoint () const =0
virtual void	Up (const spat::Vector< One > &up)=0
virtual spat::Vector< One >	Up () const =0
virtual void	LookAt (const spat::Position< Length > &lookAtPoint)=0
virtual spat::Position< Length >	LookAt () const =0
virtual bool	InFrustum (const spat::Position< Length > &position) const =0
virtual const spat::Frame< Length, One > &	GetFrame () const =0
virtual spat::Frame< Length, One > &	GetFrame ()=0
Public Member Functions inherited from trax::Frustum
virtual void	SetFromFofy (Angle fovy=default_fovy, One aspect=default_aspect, Length zn=default_nearPlane, Length zf=default_farPlane)=0
virtual void	SetFromDimensions (Length width, Length height, Length zn=default_nearPlane, Length zf=default_farPlane)=0
virtual void	PlaneDistances (const common::Interval< Length > &planes)=0
virtual Length	NearPlaneDistance () const =0
virtual Length	FarPlaneDistance () const =0
virtual void	Width (Length width)=0
virtual Length	Width () const =0
virtual void	Height (Length height)=0
virtual Length	Height () const =0
virtual void	Fovy (Angle fovy)=0
	The Field Of View angle in radiants.
virtual Angle	Fovy () const =0
virtual void	AspectRatio (One aspect)=0
virtual One	AspectRatio () const =0
virtual void	ProjectionMatrix (const spat::Transformation< Real > &projection)=0
virtual const spat::Transformation< Real > &	ProjectionMatrix () const =0
virtual spat::Transformation< Real > &	ProjectionMatrix ()=0
	Frustum (const Frustum &)=delete
	Frustum (Frustum &&)=delete
Frustum &	operator= (const Frustum &)=delete
Frustum &	operator= (Frustum &&)=delete
Public Member Functions inherited from trax::Identified< Camera >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Additional Inherited Members
Static Public Member Functions inherited from trax::Camera
static dclspc std::unique_ptr< Camera >	Make (CameraType type=CameraType::cam_basic) noexcept
	Makes a Camera object.
Static Public Attributes inherited from trax::Frustum
static const Angle	default_fovy
static const One	default_aspect
static const Length	default_nearPlane
static const Length	default_farPlane

Detailed Description

Interface for movable cameras.

Member Function Documentation

AttachTo()

virtual void trax::AnimatedCamera::AttachTo ( std::shared_ptr< Module > pModule )

pure virtual

If attached to a module, the camera will stay on top of the terrain and will not penetrate geoms in the scene.

Implemented in trax::BodyCam.

GetModule()

virtual std::shared_ptr< Module > trax::AnimatedCamera::GetModule ( ) const

pure virtual

Returns

the Module this camera is attached to.

MaximumLinearVelocity()

virtual void trax::AnimatedCamera::MaximumLinearVelocity ( Velocity maxVelocity )

pure virtual

Sets a maximum velocity that will not be exceeded.

Parameters

maxVelocity

A value in the range [0,+infinite]. The default is +infinite.

operator=()

virtual Camera & trax::Camera::operator= ( const Camera & camera )

virtual

Implements trax::Camera.

Update()

virtual void trax::AnimatedCamera::Update ( )

pure virtual

Updates the camera by the fixed time step.

Call this function once per simulation step.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/rigid/modules/Camera.h
