A switch that is connecting one narrow end to three outgoing track ends. More...

#include <C:/Trend/Development/Trax3/Code/trax/Switch.h>

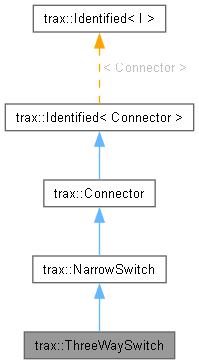

Inheritance diagram for trax::ThreeWaySwitch:

[legend]

Public Member Functions
virtual void	DivergedTrack1 (std::shared_ptr< TrackBuilder > pDivergedTrack1, Track::EndType trackEnd)=0
	Occupies the slot for the diverged track.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	DivergedTrack1 () const =0
virtual void	ClearDivergedTrack1 ()=0
	Clears the slot for the diverged1 track.
virtual void	DivergedTrack2 (std::shared_ptr< TrackBuilder > pDivergedTrack2, Track::EndType trackEnd)=0
	Occupies the slot for the diverged track.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	DivergedTrack2 () const =0
virtual void	ClearDivergedTrack2 ()=0
	Clears the slot for the diverged2 track.
virtual void	SwapStraightWithDiverged ()=0
	Swaps the straight and the diverged track.
virtual void	SwapStraightWithDiverged2 ()=0
	Swaps the straight and the diverged2 track.
virtual void	SwapDivergedWithDiverged2 ()=0
	Swaps the diverged and the diverged2 track.
virtual bool	IsNormal () const =0
	Returns true, if the straight track lies in the middle of the two diverging tracks and the first diverging track is on its left.
virtual bool	Normalize ()=0
	Rearranges the outgoing tracks if this switch is not normal.
virtual Status	StatusToLeft () const =0
virtual Status	StatusToMiddle () const =0
virtual Status	StatusToRight () const =0
virtual Jack &	JackOnBranch1 () noexcept=0
	Gets a Jack that pulses its Plug if the switch is set to branch.
virtual MultiPlug &	PlugToBranch1 () noexcept=0
	Gets a Plug that sets the switch to branch.
virtual Jack &	JackOnBranch2 () noexcept=0
	Gets a Jack that pulses its Plug if the switch is set to branch.
virtual MultiPlug &	PlugToBranch2 () noexcept=0
	Gets a Plug that sets the switch to branch.
Public Member Functions inherited from trax::NarrowSwitch
virtual Status	Set (Status to, bool pulse=true)=0
	Turns the switch to the specified setting.
virtual Status	Get () const =0
	Gets the setting of the switch.
virtual void	NarrowTrack (std::shared_ptr< TrackBuilder > pNarrowTrack, Track::EndType trackEnd)=0
	Occupies the slot for the narrow track.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	NarrowTrack () const =0
virtual void	ClearNarrowTrack ()=0
	Clears the slot for the narrow track.
virtual void	StraightTrack (std::shared_ptr< TrackBuilder > pStaightTrack, Track::EndType trackEnd)=0
	Occupies the slot for the straight track.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	StraightTrack () const =0
virtual void	ClearStraightTrack ()=0
	Clears the slot for the straight track.
virtual void	DivergedTrack (int divTrackID, std::shared_ptr< TrackBuilder > pDivergedTrack, Track::EndType trackEnd)=0
	Occupies the slot for the diverging track.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	DivergedTrack (int divTrackID) const =0
virtual void	ClearDivergedTrack (int divTrackID)=0
	Clears the slot for the straight track.
virtual int	CntDivergedTracks () const =0
virtual Location	Bifurcation () const =0
	Gets a track Location object right at the bifurcation point of the switch with a foreward direction aiming towards the branching tracks.
virtual Jack &	JackOnGo () noexcept=0
	Gets a Jack that pulses its Plug if the switch is set to go.
virtual MultiPlug &	PlugToGo () noexcept=0
	Gets a Plug that sets the switch to go.
virtual Jack &	JackOn (Status status)=0
	Gets a Jack that pulses its Plug if the specified Status is set.
virtual MultiPlug &	PlugTo (Status status)=0
	Gets a Plug that switches to the specified Status.
virtual Jack &	JackOnDivergedTrack (int divTrackID)=0
	Gets a Jack that pulses its Plug if the switch is set to the branching track.
virtual MultiPlug &	PlugToDivergedTrack (int divTrackID)=0
	Gets a Plug that sets the switch to the outgoing track.
virtual void	Set (const Track &trackA, Track::EndType trackendA, const Track &trackB, Track::EndType trackendB, bool pulse=true)=0
	Sets the Connector to the setting that connects the two track ends.
Public Member Functions inherited from trax::Connector
virtual ConnectorType	GetConnectorType () const noexcept=0
virtual const char *	TypeName () const noexcept=0
virtual bool	IsValid () const noexcept=0
	Checks whether the connector is valid.
virtual void	Toggle (bool pulse=true)=0
	Sets the connector to the next setting.
virtual void	Disconnect ()=0
	Disconnects all track ends from each other.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	Slot (int slot) const noexcept=0
virtual int	Slot (const Track &track, Track::EndType trackend) const =0
virtual int	CntSlots () const noexcept=0
virtual void	SwapSlots (int slotA, int slotB)=0
	Exchanges the content of the two slots.
virtual bool	IsComplete () const =0
virtual bool	Check (std::ostream &os, Length e_distance=epsilon__length, Angle e_kink=epsilon__angle, Angle e_twist=epsilon__angle) const noexcept=0
	Checks the connector for consistency.
virtual void	Clear (int slot)=0
	clears the slot with index slot.
virtual void	Clear ()=0
	Releases all the tracks from the slots.
virtual void	GetCenter (spat::Frame< Length, One > &center) const =0
	Gets the center of the tracks the connector is connecting.
virtual MultiPlug &	PlugToToggle () noexcept=0
virtual const MultiPlug &	PlugToToggle () const noexcept=0
virtual Jack &	JackOnChange () noexcept=0
virtual const Jack &	JackOnChange () const noexcept=0
virtual void	RegisterSockets (SocketRegistry &modul)=0
	Registers all the Plugs with the module and supplies the Jacks with plug ids for connecting.
virtual void	UnregisterSockets (SocketRegistry &modul)=0
	Removes all references to Plugs and Jacks from the module.
virtual void	UserData (ConnectorUserData *pData) noexcept=0
	Sets a pointer to user provided data.
virtual ConnectorUserData *	UserData () const noexcept=0
virtual int	Slot (int slot, std::shared_ptr< TrackBuilder > pTrack, Track::EndType trackend, bool connectAnonymous=false)=0
	Populates a slot with a tracks end.
virtual int	Slot (std::shared_ptr< TrackBuilder > pTrack, Track::EndType trackend, bool connectAnonymous=false)=0
	Populates the slot with the smallest ID that is still unpopulated.
Public Member Functions inherited from trax::Identified< Connector >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Static Public Member Functions
static dclspc std::unique_ptr< ThreeWaySwitch >	Make () noexcept
	Makes a standard ThreeWaySwitch object.
Static Public Member Functions inherited from trax::NarrowSwitch
static dclspc std::unique_ptr< NarrowSwitch >	Make (unsigned char numBranches) noexcept
	Makes a standard NarrowSwitch object.

Static Public Attributes
static constexpr char	slot_count = 4
static constexpr char	status_count = 3
static constexpr char	branch_count = 2

Additional Inherited Members
Public Types inherited from trax::NarrowSwitch
enum	SlotNames : char { slot_none = -1 , slot_0 = 0 , slot_1 , slot_2 , slot_3 , slot_4 , slot_5 , slot_N = 125 , maxSlots }
enum class	Status : char { none = -1 , go , branch = 1 , branch1 = 1 , branch2 = 2 , branch3 = 3 , branch4 = 4 , bramch5 = 5 , branchN = 124 , maxBranches = 124 , toggle , change , empty }
	Status. More...

Detailed Description

A switch that is connecting one narrow end to three outgoing track ends.

Member Function Documentation

◆ DivergedTrack1() [1/2]

virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trax::ThreeWaySwitch::DivergedTrack1 ( ) const

pure virtual

Returns: the track and the end type in the diverged slot.

◆ DivergedTrack1() [2/2]

virtual void trax::ThreeWaySwitch::DivergedTrack1	(	std::shared_ptr< TrackBuilder >	pDivergedTrack1,
		Track::EndType	trackEnd )

pure virtual

Occupies the slot for the diverged track.

The diverged track is the branching track of a switch.

Parameters

pDivergedTrack1	Shared pointer to track.
trackEnd	End of track to connect.

◆ DivergedTrack2() [1/2]

virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trax::ThreeWaySwitch::DivergedTrack2 ( ) const

pure virtual

Returns: the track and the end type in the diverged slot.

◆ DivergedTrack2() [2/2]

virtual void trax::ThreeWaySwitch::DivergedTrack2	(	std::shared_ptr< TrackBuilder >	pDivergedTrack2,
		Track::EndType	trackEnd )

pure virtual

Occupies the slot for the diverged track.

The diverged track is the branching track of a switch.

Parameters

pDivergedTrack2	Shared pointer to track.
trackEnd	End of track to connect.

◆ IsNormal()

virtual bool trax::ThreeWaySwitch::IsNormal ( ) const

pure virtual

Returns true, if the straight track lies in the middle of the two diverging tracks and the first diverging track is on its left.

Use Normalize() to make a switch normal. The test is done by the track locations at the minimum length of the three outgoing tracks.

◆ Normalize()

virtual bool trax::ThreeWaySwitch::Normalize ( )

pure virtual

Rearranges the outgoing tracks if this switch is not normal.

Returns: True if the track was normal at in the first palce.

◆ StatusToLeft()

virtual Status trax::ThreeWaySwitch::StatusToLeft ( ) const

pure virtual

Returns: the status that would lead over the left outgoing track.

◆ StatusToMiddle()

virtual Status trax::ThreeWaySwitch::StatusToMiddle ( ) const

pure virtual

Returns: the status that would lead over the middle outgoing track.

◆ StatusToRight()

virtual Status trax::ThreeWaySwitch::StatusToRight ( ) const

pure virtual

Returns: the status that would lead over the right outgoing track.

The documentation for this struct was generated from the following file:

C:/Trend/Development/Trax3/Code/trax/Switch.h
