Common interface for switch types that maintain an incomming (narrow) track, an outgoing straight track and an arbitrary number of outgoing diverging tracks. More...

#include <C:/Trend/Development/Trax3/Code/trax/Switch.h>

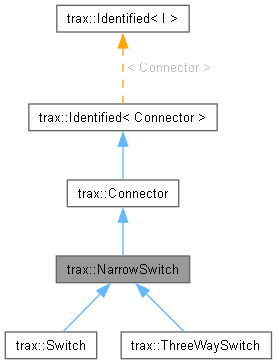

Inheritance diagram for trax::NarrowSwitch:

[legend]

Public Types
enum	SlotNames : char { slot_none = -1 , slot_0 = 0 , slot_1 , slot_2 , slot_3 , slot_4 , slot_5 , slot_N = 125 , maxSlots }
enum class	Status : char { none = -1 , go , branch = 1 , branch1 = 1 , branch2 = 2 , branch3 = 3 , branch4 = 4 , bramch5 = 5 , branchN = 124 , maxBranches = 124 , toggle , change , empty }
	Status. More...

Public Member Functions
virtual Status	Set (Status to, bool pulse=true)=0
	Turns the switch to the specified setting.
virtual Status	Get () const =0
	Gets the setting of the switch.
virtual void	NarrowTrack (std::shared_ptr< TrackBuilder > pNarrowTrack, Track::EndType trackEnd)=0
	Occupies the slot for the narrow track.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	NarrowTrack () const =0
virtual void	ClearNarrowTrack ()=0
	Clears the slot for the narrow track.
virtual void	StraightTrack (std::shared_ptr< TrackBuilder > pStaightTrack, Track::EndType trackEnd)=0
	Occupies the slot for the straight track.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	StraightTrack () const =0
virtual void	ClearStraightTrack ()=0
	Clears the slot for the straight track.
virtual void	DivergedTrack (int divTrackID, std::shared_ptr< TrackBuilder > pDivergedTrack, Track::EndType trackEnd)=0
	Occupies the slot for the diverging track.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	DivergedTrack (int divTrackID) const =0
virtual void	ClearDivergedTrack (int divTrackID)=0
	Clears the slot for the straight track.
virtual int	CntDivergedTracks () const =0
virtual Location	Bifurcation () const =0
	Gets a track Location object right at the bifurcation point of the switch with a foreward direction aiming towards the branching tracks.
virtual Jack &	JackOnGo () noexcept=0
	Gets a Jack that pulses its Plug if the switch is set to go.
virtual MultiPlug &	PlugToGo () noexcept=0
	Gets a Plug that sets the switch to go.
virtual Jack &	JackOn (Status status)=0
	Gets a Jack that pulses its Plug if the specified Status is set.
virtual MultiPlug &	PlugTo (Status status)=0
	Gets a Plug that switches to the specified Status.
virtual Jack &	JackOnDivergedTrack (int divTrackID)=0
	Gets a Jack that pulses its Plug if the switch is set to the branching track.
virtual MultiPlug &	PlugToDivergedTrack (int divTrackID)=0
	Gets a Plug that sets the switch to the outgoing track.
virtual void	Set (const Track &trackA, Track::EndType trackendA, const Track &trackB, Track::EndType trackendB, bool pulse=true)=0
	Sets the Connector to the setting that connects the two track ends.
Public Member Functions inherited from trax::Connector
virtual ConnectorType	GetConnectorType () const noexcept=0
virtual const char *	TypeName () const noexcept=0
virtual bool	IsValid () const noexcept=0
	Checks whether the connector is valid.
virtual void	Toggle (bool pulse=true)=0
	Sets the connector to the next setting.
virtual void	Disconnect ()=0
	Disconnects all track ends from each other.
virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType >	Slot (int slot) const noexcept=0
virtual int	Slot (const Track &track, Track::EndType trackend) const =0
virtual int	CntSlots () const noexcept=0
virtual void	SwapSlots (int slotA, int slotB)=0
	Exchanges the content of the two slots.
virtual bool	IsComplete () const =0
virtual bool	Check (std::ostream &os, Length e_distance=epsilon__length, Angle e_kink=epsilon__angle, Angle e_twist=epsilon__angle) const noexcept=0
	Checks the connector for consistency.
virtual void	Clear (int slot)=0
	clears the slot with index slot.
virtual void	Clear ()=0
	Releases all the tracks from the slots.
virtual void	GetCenter (spat::Frame< Length, One > &center) const =0
	Gets the center of the tracks the connector is connecting.
virtual MultiPlug &	PlugToToggle () noexcept=0
virtual const MultiPlug &	PlugToToggle () const noexcept=0
virtual Jack &	JackOnChange () noexcept=0
virtual const Jack &	JackOnChange () const noexcept=0
virtual void	RegisterSockets (SocketRegistry &modul)=0
	Registers all the Plugs with the module and supplies the Jacks with plug ids for connecting.
virtual void	UnregisterSockets (SocketRegistry &modul)=0
	Removes all references to Plugs and Jacks from the module.
virtual void	UserData (ConnectorUserData *pData) noexcept=0
	Sets a pointer to user provided data.
virtual ConnectorUserData *	UserData () const noexcept=0
virtual int	Slot (int slot, std::shared_ptr< TrackBuilder > pTrack, Track::EndType trackend, bool connectAnonymous=false)=0
	Populates a slot with a tracks end.
virtual int	Slot (std::shared_ptr< TrackBuilder > pTrack, Track::EndType trackend, bool connectAnonymous=false)=0
	Populates the slot with the smallest ID that is still unpopulated.
Public Member Functions inherited from trax::Identified< Connector >
virtual const std::string &	Reference (const std::string &name) const=0
	Gets a reference that was set for this object by name.
virtual const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const=0
	Searches for all reference names that countain namePart as substring in the name.
virtual IDType	ID () const noexcept=0
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Static Public Member Functions
static dclspc std::unique_ptr< NarrowSwitch >	Make (unsigned char numBranches) noexcept
	Makes a standard NarrowSwitch object.

Detailed Description

Common interface for switch types that maintain an incomming (narrow) track, an outgoing straight track and an arbitrary number of outgoing diverging tracks.

Member Enumeration Documentation

◆ SlotNames

enum trax::NarrowSwitch::SlotNames : char

Enumerator
slot_0	narrow track
slot_1	straight track
slot_2	first diverging track
slot_3	second diverging track
slot_4	third diverging track
slot_5	fourth diverging track
slot_N	Nth diverging track.

◆ Status

enum class trax::NarrowSwitch::Status : char

strong

Status.

Enumerator
go	go over straight track
branch	go over first diverging track
branch1	go over first diverging track
branch2	go over second diverging track
toggle	toggle the switch
empty	set to first empty from go over branch1 to CntDivergedTracks()

Member Function Documentation

◆ ClearDivergedTrack()

virtual void trax::NarrowSwitch::ClearDivergedTrack ( int divTrackID )

pure virtual

Clears the slot for the straight track.

Implemented in trax::Switch.

◆ CntDivergedTracks()

virtual int trax::NarrowSwitch::CntDivergedTracks ( ) const

pure virtual

Returns: The number of diverging tracks. This does not include the outgoing straight track.

◆ DivergedTrack() [1/2]

virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trax::NarrowSwitch::DivergedTrack ( int divTrackID ) const

pure virtual

Returns: the track and the end type in the straight slot.

Implemented in trax::Switch.

◆ DivergedTrack() [2/2]

virtual void trax::NarrowSwitch::DivergedTrack	(	int	divTrackID,
		std::shared_ptr< TrackBuilder >	pDivergedTrack,
		Track::EndType	trackEnd )

pure virtual

Occupies the slot for the diverging track.

The diverging track is the branching track of a switch.

Parameters

divTrackID	zero based id of the diverging track to set.
pDivergedTrack	Shared pointer to track.
trackEnd	End of track to connect.

Implemented in trax::Switch.

◆ NarrowTrack() [1/2]

virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trax::NarrowSwitch::NarrowTrack ( ) const

pure virtual

Returns: the track and the end type in the narrow slot.

◆ NarrowTrack() [2/2]

virtual void trax::NarrowSwitch::NarrowTrack	(	std::shared_ptr< TrackBuilder >	pNarrowTrack,
		Track::EndType	trackEnd )

pure virtual

Occupies the slot for the narrow track.

The narrow track is the incomming track of a switch.

Parameters

pNarrowTrack	Shared pointer to track.
trackEnd	End of track to connect.

◆ Set() [1/2]

virtual void trax::Connector::Set	(	const Track &	trackA,
		Track::EndType	trackendA,
		const Track &	trackB,
		Track::EndType	trackendB,
		bool	pulse = true )

virtual

Sets the Connector to the setting that connects the two track ends.

Exceptions

std::invalid_argument	if one of the two track ends is not in a slot.
std::logic_error,if	the two ends can not get connected by the Connector.

Implements trax::Connector.

◆ Set() [2/2]

virtual Status trax::NarrowSwitch::Set	(	Status	to,
		bool	pulse = true )

pure virtual

Turns the switch to the specified setting.

Returns: The previous status of the switch.

◆ StraightTrack() [1/2]

virtual std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trax::NarrowSwitch::StraightTrack ( ) const

pure virtual

Returns: the track and the end type in the straight slot.

◆ StraightTrack() [2/2]

virtual void trax::NarrowSwitch::StraightTrack	(	std::shared_ptr< TrackBuilder >	pStaightTrack,
		Track::EndType	trackEnd )

pure virtual

Occupies the slot for the straight track.

The straight track is the go through track of a switch.

Parameters

pStaightTrack	Shared pointer to track.
trackEnd	End of track to connect.

The documentation for this struct was generated from the following file:

C:/Trend/Development/Trax3/Code/trax/Switch.h
