trax::TrackSystemDecorator Class Reference

A decorator for TrackSystems. More...

#include <C:/Trend/Development/Trax3/Code/trax/collections/TrackSystem.h>

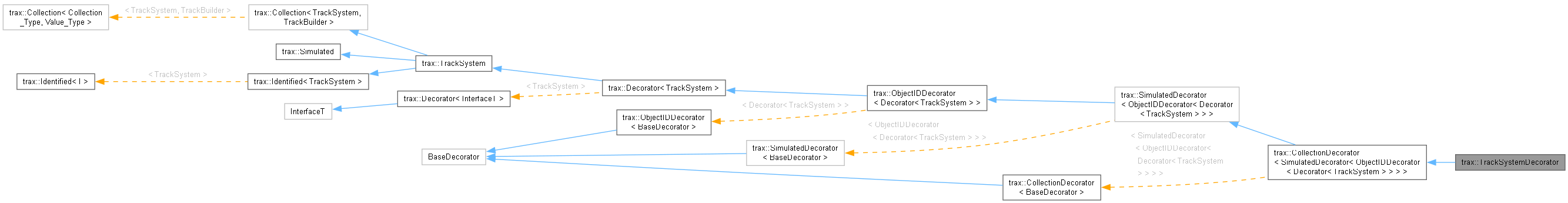

Inheritance diagram for trax::TrackSystemDecorator:

Public Types
typedef TrackSystem	ComponentType
	Type of the decoree.
Public Types inherited from trax::CollectionDecorator< SimulatedDecorator< ObjectIDDecorator< Decorator< TrackSystem > > > >
typedef SimulatedDecorator< ObjectIDDecorator< Decorator< TrackSystem > > >::InterfaceType	InterfaceType
typedef SimulatedDecorator< ObjectIDDecorator< Decorator< TrackSystem > > >::collection_type	collection_type
typedef SimulatedDecorator< ObjectIDDecorator< Decorator< TrackSystem > > >::value_type	value_type
Public Types inherited from trax::SimulatedDecorator< ObjectIDDecorator< Decorator< TrackSystem > > >
typedef ObjectIDDecorator< Decorator< TrackSystem > >::InterfaceType	InterfaceType
	Type of the interface the decorator is decorating.
Public Types inherited from trax::ObjectIDDecorator< Decorator< TrackSystem > >
typedef Decorator< TrackSystem >::InterfaceType	InterfaceType
	Type of the interface the decorator is decorating.
Public Types inherited from trax::Decorator< TrackSystem >
typedef TrackSystem	InterfaceType
	Type of the interface the decorator is decorating.
Public Types inherited from trax::Collection< TrackSystem, TrackBuilder >
using	iterator
using	const_iterator
using	collection_type
using	value_type

Public Member Functions
	TrackSystemDecorator (std::shared_ptr< TrackSystem > pTrackSystem)
	Constructs the decorator.
Forwarding
TrackSystem member function forwarding.
std::shared_ptr< TrackSystem >	This () const noexcept override
	Gets a shared pointer to this.
IDType	CreateCollection (IDType id=0) override
	Creates a TrackCollection with the supplied id.
void	RemoveCollection (IDType id) override
	Removes the TrackCollection with the specified id.
void	SetCollectionFrame (IDType id, const spat::Frame< Length, One > &frame) override
	Sets the frame of reference for a TrackCollection.
const spat::Frame< Length, One > &	GetCollectionFrame (IDType id) const override
	Gets the frame of reference for a TrackCollection.
IDType	SetActiveCollection (IDType id) override
	Sets a TrackCollection to be the active one.
IDType	GetActiveCollection () const override
std::shared_ptr< TrackCollectionContainer >	GetCollectionContainer () const override
std::shared_ptr< TrackCollectionContainer >	SetTrackCollectionContainer (std::shared_ptr< TrackCollectionContainer > pTrackCollectionContainer) override
std::shared_ptr< ConnectorCollection >	SetConnectorCollection (std::shared_ptr< ConnectorCollection > pConnectorCollection) override
	Attaches a ConnectorCollection to the track system.
ConnectorCollection *	GetConnectorCollection () const override
void	Couple (std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trackEnd1, std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trackEnd2) const override
void	Couple (const Track::Coupling &coupling, bool bUncoupledOnly=false) const override
std::shared_ptr< Sensor >	GetSensor (IDType id, TrackLocation *pTrackLocation) const override
Length	CalculateGapSize (const Track::End &theOne, const Track::End &theOther) const override
std::vector< Track::End >	GetUncoupledIn (const spat::Sphere< Length > &area) const override
	Searches for a free, uncoupled track end in the area.
void	Connection (Track::Coupling &coupling) const override
	Completes the coupling.
void	Connection (const Track::End &end, Track::End &coupled) const override
void	Connection (const Track::Coupling &couplings, Track::Coupling &active) const override
	Writes the coupled tracks data of the trackends in couplings to active.
void	DeCoupleAll () override
	Uncouples all the Tracks in the TrackSystem from each other.
Public Member Functions inherited from trax::CollectionDecorator< SimulatedDecorator< ObjectIDDecorator< Decorator< TrackSystem > > > >
	CollectionDecorator (std::shared_ptr< InterfaceType > pComponent)
	Decorator constructor.
const char *	TypeName () const noexcept override
IDType	Add (std::shared_ptr< value_type > pItem) override
IDType	AddRelaxed (std::shared_ptr< value_type > pItem) override
bool	Remove (value_type *pItem, bool zeroIDs=false) override
int	Take (collection_type &ct) override
void	Clear () override
int	Count () const override
collection_type::iterator	begin () override
collection_type::const_iterator	cbegin () const override
collection_type::iterator	end () override
collection_type::const_iterator	cend () const override
std::shared_ptr< value_type >	GetFirst () const override
std::shared_ptr< value_type >	GetNext (const std::shared_ptr< value_type > &pItem) const override
std::shared_ptr< value_type >	GetLast () const override
std::shared_ptr< value_type >	GetPrevious (const std::shared_ptr< value_type > &pItem) const override
std::shared_ptr< value_type >	Get (IDType id) const override
void	PushActive (IDType id) override
void	PopActive () override
std::shared_ptr< value_type >	GetActive () const override
bool	IsMember (const value_type &item) const override
void	ShiftIDs (int offset) override
IDType	MaxID () const override
IDType	MinID () const override
Public Member Functions inherited from trax::SimulatedDecorator< ObjectIDDecorator< Decorator< TrackSystem > > >
	SimulatedDecorator (std::shared_ptr< InterfaceType > pComponent)
	Decorator constructor.
bool	Start (Scene &scene) override
void	Idle () override
void	Update (Time dt) override
void	Pause () noexcept override
void	Resume () noexcept override
void	Stop () noexcept override
Public Member Functions inherited from trax::ObjectIDDecorator< Decorator< TrackSystem > >
	ObjectIDDecorator (std::shared_ptr< InterfaceType > pComponent)
	Decorator constructor.
const std::string &	Reference (const std::string &name) const override
const std::vector< char const * > &	ReferenceNames (const std::string &namePart) const override
IDType	ID () const noexcept override
	ObjectIDDecorator member function forwarding.
Public Member Functions inherited from trax::Decorator< TrackSystem >
Decorator &	operator= (const Decorator &)=delete
InterfaceType *	Component () const noexcept
	Decorator member function forwarding.
Public Member Functions inherited from trax::TrackSystem
virtual void	CoupleAll (Length maxDistance=1_m, Angle maxKink=pi, bool bSilent=true)=0
	Couples all open ends in the track system, if they are closer than maxDistance.
Public Member Functions inherited from trax::Collection< TrackSystem, TrackBuilder >
virtual bool	IsValid () const noexcept=0
	Checks whether the elements in this collection are valid.
virtual IDType	Add (std::shared_ptr< TrackBuilder > pValue_Type)=0
	Adds an element to the container and returns its index in the container.
virtual IDType	AddRelaxed (std::shared_ptr< TrackBuilder > pTraxType)=0
	Adds an element to the container and returns its index in the container. Does not throw.
virtual bool	Remove (TrackBuilder *pValue_Type, bool zeroIDs=false)=0
	Removes an element from this container.
virtual int	Take (TrackSystem &collection_Type)=0
	Moves all the items from another container to this container.
virtual std::shared_ptr< TrackBuilder >	GetNext (const std::shared_ptr< TrackBuilder > &pValue_Type) const=0
virtual std::shared_ptr< TrackBuilder >	GetPrevious (const std::shared_ptr< TrackBuilder > &pValue_Type) const=0
	Collection (const Collection &)=delete
Collection &	operator= (const Collection &)=delete
virtual bool	IsMember (const value_type &item) const=0
Public Member Functions inherited from trax::Identified< TrackSystem >
	Identified (const Identified &)=delete
Identified &	operator= (const Identified &)=delete

Additional Inherited Members
Static Public Member Functions inherited from trax::TrackSystem
static dclspc std::shared_ptr< TrackSystem >	Make () noexcept
	Makes a standard TrackSystem object.
static dclspc std::shared_ptr< TrackSystem >	Make (std::unique_ptr< TrackCollectionContainer > pTrackCollectionContainer) noexcept
static dclspc std::shared_ptr< TrackSystem >	Make (std::unique_ptr< TrackCollectionContainer > pTrackCollectionContainer, std::unique_ptr< ConnectorCollection > pConnectorCollection) noexcept
Protected Member Functions inherited from trax::Decorator< TrackSystem >
void	SetDecorator (InterfaceType *pDecorator) noexcept override
Protected Attributes inherited from trax::Decorator< TrackSystem >
std::shared_ptr< InterfaceType >	m_pComponent
	Pointer to decorated object.
Protected Attributes inherited from trax::Collection< TrackSystem, TrackBuilder >
friend	Decorator< Collection_Type >

Detailed Description

A decorator for TrackSystems.

With trax decorators can get used to augment trax objects with additional behaviour and services. Derive your own class from the decorator and overwrite its methods. Create your decorator with the trax object and supply it to the library instead of the original object. In case of a track system one might build e.g. graphics data for a track that gets added to a TrackSystem and destroy it if the track gets removed.

Constructor & Destructor Documentation

TrackSystemDecorator()

trax::TrackSystemDecorator::TrackSystemDecorator ( std::shared_ptr< TrackSystem > pTrackSystem )

inline

Constructs the decorator.

Parameters

pTrackSystem

Pointer to object to decorate.

Member Function Documentation

CalculateGapSize()

Length trax::TrackSystemDecorator::CalculateGapSize ( const Track::End & theOne, const Track::End & theOther ) const

inlineoverridevirtual

Returns

the distance between the two track ends.

Implements trax::TrackSystem.

Connection() [1/3]

void trax::TrackSystemDecorator::Connection ( const Track::Coupling & couplings, Track::Coupling & active ) const

inlineoverridevirtual

Writes the coupled tracks data of the trackends in couplings to active.

Parameters

couplings	Two track ends.
active	Coupled track end data for the track ends in couplings.

Implements trax::TrackSystem.

Connection() [2/3]

void trax::TrackSystemDecorator::Connection ( const Track::End & end, Track::End & coupled ) const

inlineoverridevirtual

Implements trax::TrackSystem.

Connection() [3/3]

void trax::TrackSystemDecorator::Connection ( Track::Coupling & coupling ) const

inlineoverridevirtual

Completes the coupling.

Parameters

coupling

A track coupling with one of its track ids set to 0. This will be completed by the correct connection.

Implements trax::TrackSystem.

Couple() [1/2]

void trax::TrackSystemDecorator::Couple ( const Track::Coupling & coupling, bool bUncoupledOnly = false ) const

inlineoverridevirtual

Implements trax::TrackSystem.

Couple() [2/2]

void trax::TrackSystemDecorator::Couple ( std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trackEnd1, std::pair< std::shared_ptr< TrackBuilder >, Track::EndType > trackEnd2 ) const

inlineoverridevirtual

Implements trax::TrackSystem.

CreateCollection()

IDType trax::TrackSystemDecorator::CreateCollection ( IDType id = 0 )

inlineoverridevirtual

Creates a TrackCollection with the supplied id.

Parameters

id	id for the new TrackCollection or 0 if one should be made automatically.

Returns

id of the new TrackCollection.

Implements trax::TrackSystem.

DeCoupleAll()

void trax::TrackSystemDecorator::DeCoupleAll ( )

inlineoverridevirtual

Uncouples all the Tracks in the TrackSystem from each other.

This is needed since the coupled tracks hold shared pointer to each other.

Implements trax::TrackSystem.

GetActiveCollection()

IDType trax::TrackSystemDecorator::GetActiveCollection ( ) const

inlineoverridevirtual

Returns

The id of the active TrackCollection.

Implements trax::TrackSystem.

GetCollectionContainer()

std::shared_ptr< TrackCollectionContainer > trax::TrackSystemDecorator::GetCollectionContainer ( ) const

inlineoverridevirtual

Returns

A pointer to the TrackCollectionContainer object that holds the TrackCollection objects.

Implements trax::TrackSystem.

GetCollectionFrame()

const spat::Frame< Length, One > & trax::TrackSystemDecorator::GetCollectionFrame ( IDType id ) const

inlineoverridevirtual

Gets the frame of reference for a TrackCollection.

Implements trax::TrackSystem.

GetConnectorCollection()

ConnectorCollection * trax::TrackSystemDecorator::GetConnectorCollection ( ) const

inlineoverridevirtual

Returns

A pointer to the ConnectorCollection attached to this TrackSystem.

Implements trax::TrackSystem.

GetSensor()

std::shared_ptr< Sensor > trax::TrackSystemDecorator::GetSensor ( IDType id, TrackLocation * pTrackLocation ) const

inlineoverridevirtual

Returns

a pointer to the sensor with the respective id.

Implements trax::TrackSystem.

GetUncoupledIn()

std::vector< Track::End > trax::TrackSystemDecorator::GetUncoupledIn ( const spat::Sphere< Length > & area ) const

inlineoverridevirtual

Searches for a free, uncoupled track end in the area.

Implements trax::TrackSystem.

RemoveCollection()

void trax::TrackSystemDecorator::RemoveCollection ( IDType id )

inlineoverridevirtual

Removes the TrackCollection with the specified id.

Parameters

id	of the TrackCollection to remove.

Implements trax::TrackSystem.

SetActiveCollection()

IDType trax::TrackSystemDecorator::SetActiveCollection ( IDType id )

inlineoverridevirtual

Sets a TrackCollection to be the active one.

Implements trax::TrackSystem.

SetCollectionFrame()

void trax::TrackSystemDecorator::SetCollectionFrame ( IDType id, const spat::Frame< Length, One > & frame )

inlineoverridevirtual

Sets the frame of reference for a TrackCollection.

Implements trax::TrackSystem.

SetConnectorCollection()

std::shared_ptr< ConnectorCollection > trax::TrackSystemDecorator::SetConnectorCollection ( std::shared_ptr< ConnectorCollection > pConnectorCollection )

inlineoverridevirtual

Attaches a ConnectorCollection to the track system.

Returns

The old attached connector collection.

Implements trax::TrackSystem.

SetTrackCollectionContainer()

std::shared_ptr< TrackCollectionContainer > trax::TrackSystemDecorator::SetTrackCollectionContainer ( std::shared_ptr< TrackCollectionContainer > pTrackCollectionContainer )

inlineoverridevirtual

Implements trax::TrackSystem.

This()

std::shared_ptr< TrackSystem > trax::TrackSystemDecorator::This ( ) const

inlineoverridevirtualnoexcept

Gets a shared pointer to this.

Implements trax::TrackSystem.

---

The documentation for this class was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/collections/TrackSystem.h
