trax::TrackPainter Class Reference

Base class for painting tracks as a series of short straight pieces. More...

#include <C:/Trend/Development/Trax3/Code/trax/TrackPainter.h>

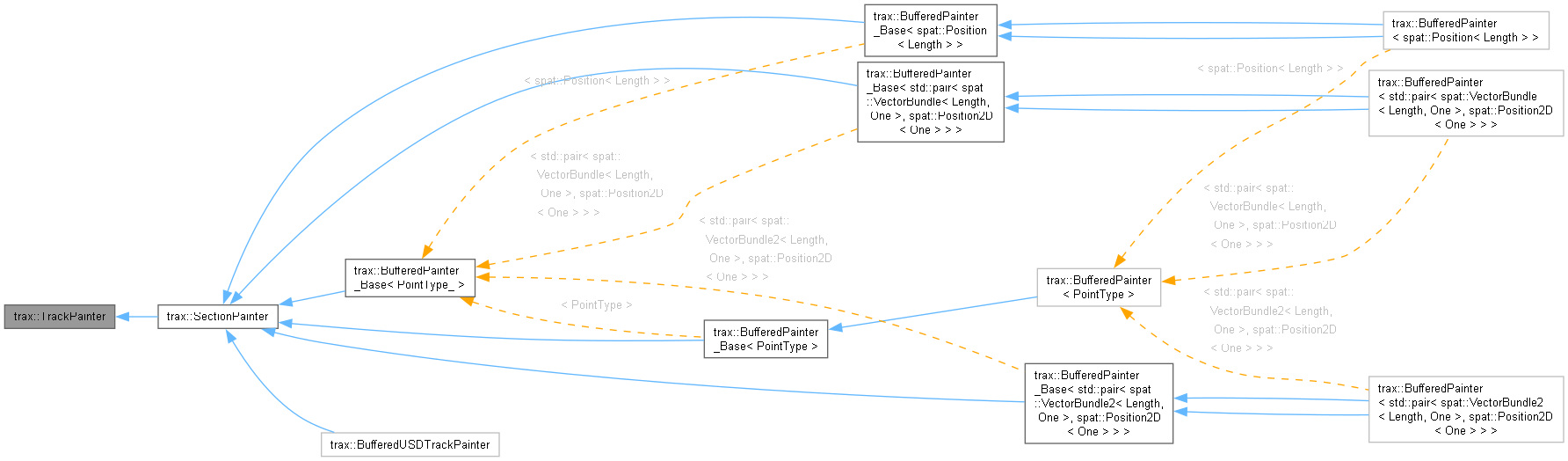

Inheritance diagram for trax::TrackPainter:

Public Types
enum	Mode {   mode_none = 0x00 , mode_leftHandedFaces = 0x01 , mode_constantSegmentLength = 0x02 , mode_SegmentLength = 0x04 ,   mode_checkedSegmentLength = 0x04 , mode_totallycheckedSegmentLength = 0x08 , mode_ignoreCuvesTorsion = 0x10 , mode_localFrame = 0x20 ,   mode_startFrame = 0x40 , mode_default = mode_none }

Public Member Functions
TrackPainter &	operator= (const TrackPainter &)=default
TrackPainter &	operator= (TrackPainter &&)=default
TrackPainter &	operator() (const SectionTrack &track)
int	GetMode () const noexcept
int	GetCountSegments () const noexcept
Construction
Creates the track painter. To make for a constant segment length, have segmentLimits.Near() == segmentLimits.Far(), this will save some computations, but will probabably not give the most efficent mesh to render. Parameters segmentLimits The minimum and maximum segment length to deliver. The last segment returned might be shorter, to go to the track's end. e Distance failure that is assumed not to matter visibly. Exceptions std::invalid_argument See also Segment, Segment_Checked
dclspc	TrackPainter (int mode, common::Interval< Length > segmentLimits={epsilon__length, plausible_maximum_length}, Length e=epsilon__length)
dclspc	TrackPainter (const TrackPainter &)=default
dclspc	TrackPainter (TrackPainter &&)=default
dclspc Length	Paint (const TrackBuilder &track, const Section &section, Length offset=0_m)
	Paints the track.

Protected Member Functions
virtual void	StartPaint (const spat::Frame< Length, One > &, Length, const Section &)
	Gets called once on rendering startup before all PaintSegment() calls.
virtual void	PaintSegment (const spat::Frame< Length, One > &rFrame, Length segmentLength, const Section &)=0
	This gets called once per segment to paint a segment of the track.
virtual void	EndPaint (const spat::Frame< Length, One > &)
	Gets called once on rendering end after all PaintSegment() calls.

Detailed Description

Base class for painting tracks as a series of short straight pieces.

Member Enumeration Documentation

Mode

enum trax::TrackPainter::Mode

Enumerator
mode_leftHandedFaces	Produces triangles according to the left hand rule. Default it is the right hand rule.
mode_constantSegmentLength	Uses segmentLimits.Far() as segment length.
mode_SegmentLength	Checks each segment at its starting point. The default.
mode_checkedSegmentLength	Checks the end point of the segment, shrinks if necessary. Use it if the curvature changes much inside the segmentLimits.Far() distance.
mode_totallycheckedSegmentLength	Checks every point of the segment with respect to the segmentLimits.Near() grid. Use it if sudden curves might occure inside the segmentLimits.Far() distance.
mode_ignoreCuvesTorsion	Ignores the curves torsion (but not the track's twist) for segment calculations.
mode_localFrame	Paints the track in it's local frame of reference. To get global coordinates, the tracks's transformations have to be applied to the geometric data.
mode_startFrame	Paints the track around it's start frame. The first segment will start at {0,0,0} with it's tangent heading towards {1,0,0}.

Member Function Documentation

GetCountSegments()

int trax::TrackPainter::GetCountSegments ( ) const

inlinenoexcept

Returns

The number of segments from the track last painted.

GetMode()

int trax::TrackPainter::GetMode ( ) const

inlinenoexcept

Returns

The mode setting adjusted on constructor call.

Paint()

dclspc Length trax::TrackPainter::Paint	(	const TrackBuilder &	track,
		const Section &	section,
		Length	offset = 0_m )

Paints the track.

For reaching the track's end, the last segment might be shorter than what would serve the limits given.

Parameters

track	The track to paint.
section	The section to be used for painting.
offset	If connected tracks are painted, it can be usefull to supply the return value of a connected track's painting call here. This can be used to adjust texture coordinates for example.

Returns

track.GetLength() + offset

PaintSegment()

virtual void trax::TrackPainter::PaintSegment ( const spat::Frame< Length, One > & rFrame, Length segmentLength, const Section &  )

protectedpure virtual

This gets called once per segment to paint a segment of the track.

Parameters

rFrame	Position and orientation at the end of the segment to paint.
segmentLength	Length of the segment. This value migh vary from call to call.

Implemented in trax::SectionPainter.

StartPaint()

virtual void trax::TrackPainter::StartPaint ( const spat::Frame< Length, One > & , Length , const Section &  )

inlineprotectedvirtual

Gets called once on rendering startup before all PaintSegment() calls.

Reimplemented in trax::BufferedPainter_Base< PointType_ >, trax::BufferedPainter_Base< PointType >, trax::BufferedPainter_Base< spat::Position< Length > >, trax::BufferedPainter_Base< std::pair< spat::VectorBundle2< Length, One >, spat::Position2D< One > > >, trax::BufferedPainter_Base< std::pair< spat::VectorBundle< Length, One >, spat::Position2D< One > > >, trax::BufferedUSDTrackPainter, and trax::SectionPainter.

---

The documentation for this class was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/TrackPainter.h
