trax::SignalCollection Struct Reference

Collection to hold a set of Signal objects. More...

#include <C:/Trend/Development/Trax3/Code/trax/collections/SignalCollection.h>

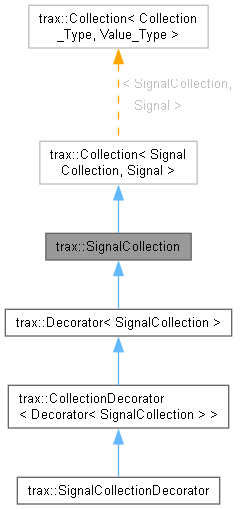

Inheritance diagram for trax::SignalCollection:

Static Public Member Functions
static dclspc std::unique_ptr< SignalCollection >	Make () noexcept
	Makes a SignalCollection object.

Additional Inherited Members
Public Types inherited from trax::Collection< SignalCollection, Signal >
using	iterator
using	const_iterator
using	collection_type
using	value_type
Public Member Functions inherited from trax::Collection< SignalCollection, Signal >
virtual const char *	TypeName () const noexcept=0
virtual bool	IsValid () const noexcept=0
	Checks whether the elements in this collection are valid.
virtual IDType	Add (std::shared_ptr< Signal > pValue_Type)=0
	Adds an element to the container and returns its index in the container.
virtual IDType	AddRelaxed (std::shared_ptr< Signal > pTraxType)=0
	Adds an element to the container and returns its index in the container. Does not throw.
virtual bool	Remove (Signal *pValue_Type, bool zeroIDs=false)=0
	Removes an element from this container.
virtual int	Take (SignalCollection &collection_Type)=0
	Moves all the items from another container to this container.
virtual void	Clear ()=0
	Removes all the elements from this container.
virtual int	Count () const=0
virtual iterator	begin ()=0
virtual const_iterator	cbegin () const=0
virtual iterator	end ()=0
virtual const_iterator	cend () const=0
virtual std::shared_ptr< Signal >	GetFirst () const=0
virtual std::shared_ptr< Signal >	GetNext (const std::shared_ptr< Signal > &pValue_Type) const=0
virtual std::shared_ptr< Signal >	GetLast () const=0
virtual std::shared_ptr< Signal >	GetPrevious (const std::shared_ptr< Signal > &pValue_Type) const=0
virtual void	PushActive (IDType id)=0
	Pushes an element on the activety stack.
virtual void	PopActive ()=0
	Pops an element from the activity stack.
virtual std::shared_ptr< Signal >	GetActive () const=0
virtual void	ShiftIDs (int offset)=0
	Adds an offset to all ids.
virtual IDType	MaxID () const=0
virtual IDType	MinID () const=0
	Collection (const Collection &)=delete
Collection &	operator= (const Collection &)=delete
virtual std::shared_ptr< Signal >	Get (IDType id) const=0
virtual bool	IsMember (const value_type &item) const=0
Protected Member Functions inherited from trax::Collection< SignalCollection, Signal >
virtual void	SetDecorator (SignalCollection *pCollection_TypeDecorator)=0
Protected Attributes inherited from trax::Collection< SignalCollection, Signal >
friend	Decorator< Collection_Type >

Detailed Description

Collection to hold a set of Signal objects.

---

The documentation for this struct was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/collections/SignalCollection.h
