spat::SquareMatrix< Valtype, nColsAndRows > Class Template Reference

Square matrix with nColumns == nRows. More...

#include <C:/Trend/Development/Trax3/Code/spat/Matrix.h>

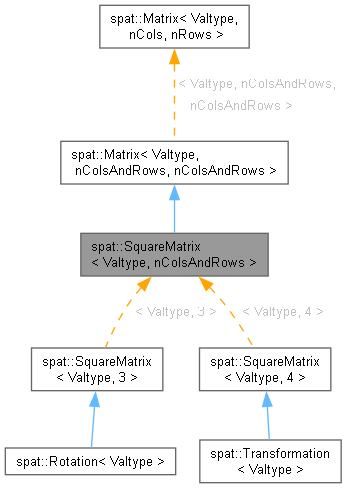

Inheritance diagram for spat::SquareMatrix< Valtype, nColsAndRows >:

Public Types
using	Basetype = Matrix<Valtype,nColsAndRows,nColsAndRows>
	Utmost base type of this SquareMatrix.
Public Types inherited from spat::Matrix< Valtype, nColsAndRows, nColsAndRows >
typedef Valtype	value_type

Public Member Functions
void	SetIdentity () noexcept
	Sets the matrix to the identity matrix (i.e. all 1 in diagonal, 0 for everything else).
bool	IsIdentity (Valtype epsilon=0) const noexcept
bool	IsDiagonal () const noexcept
bool	IsSymmetric (Valtype epsilon=0) const noexcept
SquareMatrix &	Transpose () noexcept
	Change colums and rows.
SquareMatrix &	Invert ()
	Invert matrix so that M*I == Identity.
Valtype	Trace () const noexcept
	Trace of the matrix, wich is the sum of all element with same indices.
const Valtype &	operator() (unsigned short col, unsigned short row) const noexcept
Valtype &	operator() (unsigned short col, unsigned short row) noexcept
Construction
Parameters matrix Construct from matrix elements Create from initializer list
	SquareMatrix (const SquareMatrix &)=default
	SquareMatrix (const Basetype &matrix)
	SquareMatrix (Basetype &&matrix) noexcept
	SquareMatrix (const std::initializer_list< Valtype > &elements)
Assignment
Parameters matrix Assign from matrix
Matrix &	operator= (const Matrix &matrix) noexcept
Matrix &	operator= (Matrix &&matrix) noexcept
Matrix &	operator= (const std::initializer_list< Valtype > &elements) noexcept
Public Member Functions inherited from spat::Matrix< Valtype, nColsAndRows, nColsAndRows >
void	SetNull () noexcept
	Sets all elements to 0.
constexpr unsigned short	Cols () const noexcept
	Number of columns.
constexpr unsigned short	Rows () const noexcept
	Number of rows.
bool	IsEqual (const Matrix &matrix, Valtype delta=0) const noexcept
	Test elements for equality up to delta distance.
bool	operator== (const Matrix &matrix) const noexcept
	Comparison for equality.
bool	operator!= (const Matrix &matrix) const noexcept
	Comparison for inequality.
void	operator*= (Valtype skalar) noexcept
	Matrix * Skalar multiplication.
void	operator*= (const Matrix< Valtype, nCols, nCols > &matrix)
	Matrix multiplication.
void	operator/= (Valtype skalar) noexcept
	Matrix / Skalar division.
void	operator+= (const Matrix &matrix) noexcept
	Matrix addition.
void	operator-= (const Matrix &matrix) noexcept
	Matrix subtraction.
const Valtype *	ptr () const noexcept
	Pointer accessor for direct copying. The memory layout is column-major order.
Matrix< Valtype, nCols-1, nRows-1 >	SubMatrix (unsigned short c, unsigned short r) const
	Extracts the submatrix of mat wich results from omitting the row r and collumn c.
	Matrix (const Matrix &matrix)
	Matrix (Matrix &&matrix) noexcept
	Matrix (const std::initializer_list< Valtype > &elements)
Matrix &	operator= (const Matrix &matrix) noexcept
Matrix &	operator= (Matrix &&matrix) noexcept
Matrix &	operator= (const std::initializer_list< Valtype > &elements) noexcept
const Valtype &	operator() (unsigned short col, unsigned short row) const noexcept
Valtype &	operator() (unsigned short col, unsigned short row) noexcept

Detailed Description

template<typename Valtype, const unsigned short nColsAndRows>
class spat::SquareMatrix< Valtype, nColsAndRows >

Square matrix with nColumns == nRows.

Some special operations like determinant calculation are provided.

Member Function Documentation

IsDiagonal()

template<typename Valtype, const unsigned short nColsAndRows>

bool spat::SquareMatrix< Valtype, nColsAndRows >::IsDiagonal ( ) const

noexcept

Returns

true if the matrix is diagonal.

IsIdentity()

template<typename Valtype, const unsigned short nColsAndRows>

bool spat::SquareMatrix< Valtype, nColsAndRows >::IsIdentity ( Valtype epsilon = 0 ) const

noexcept

Returns

true if the matrix is the identity matrix.

IsSymmetric()

template<typename Valtype, unsigned short nColsAndRows>

bool spat::SquareMatrix< Valtype, nColsAndRows >::IsSymmetric ( Valtype epsilon = 0 ) const

inlinenoexcept

Returns

true if the matrix is symmetric, i.e m(i,j) == m(j,i)

Trace()

template<typename Valtype, const unsigned short nColsAndRows>

Valtype spat::SquareMatrix< Valtype, nColsAndRows >::Trace ( ) const

noexcept

Trace of the matrix, wich is the sum of all element with same indices.

Returns

the trace of the matrix

---

The documentation for this class was generated from the following file:

• C:/Trend/Development/Trax3/Code/spat/Matrix.h
