spat::Matrix< Valtype, nCols, nRows > Class Template Reference

Matrix template for arbitrary dimensions and value type. More...

#include <C:/Trend/Development/Trax3/Code/spat/Matrix.h>

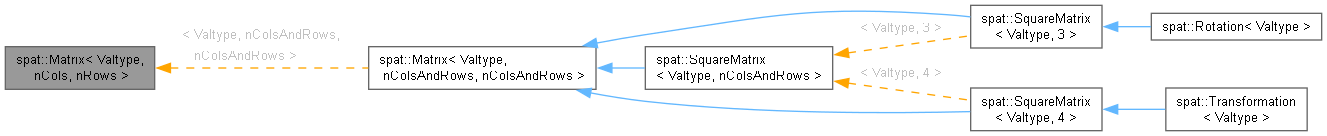

Inheritance diagram for spat::Matrix< Valtype, nCols, nRows >:

Public Types
typedef Valtype	value_type

Public Member Functions
void	SetNull () noexcept
	Sets all elements to 0.
constexpr unsigned short	Cols () const noexcept
	Number of columns.
constexpr unsigned short	Rows () const noexcept
	Number of rows.
bool	IsEqual (const Matrix &matrix, Valtype delta=0) const noexcept
	Test elements for equality up to delta distance.
bool	operator== (const Matrix &matrix) const noexcept
	Comparison for equality.
bool	operator!= (const Matrix &matrix) const noexcept
	Comparison for inequality.
void	operator*= (Valtype skalar) noexcept
	Matrix * Skalar multiplication.
void	operator*= (const Matrix< Valtype, nCols, nCols > &matrix)
	Matrix multiplication.
void	operator/= (Valtype skalar) noexcept
	Matrix / Skalar division.
void	operator+= (const Matrix &matrix) noexcept
	Matrix addition.
void	operator-= (const Matrix &matrix) noexcept
	Matrix subtraction.
const Valtype *	ptr () const noexcept
	Pointer accessor for direct copying. The memory layout is column-major order.
Matrix< Valtype, nCols-1, nRows-1 >	SubMatrix (unsigned short c, unsigned short r) const
	Extracts the submatrix of mat wich results from omitting the row r and collumn c.
Construction
Parameters matrix Create from matrix elements Create from initializer list
	Matrix (const Matrix &matrix)
	Matrix (Matrix &&matrix) noexcept
	Matrix (const std::initializer_list< Valtype > &elements)
Assignment
Parameters matrix Assign from matrix elements Assign from initializer list
Matrix &	operator= (const Matrix &matrix) noexcept
Matrix &	operator= (Matrix &&matrix) noexcept
Matrix &	operator= (const std::initializer_list< Valtype > &elements) noexcept
Subscripting.
Returns Reference to value.
const Valtype &	operator() (unsigned short col, unsigned short row) const noexcept
Valtype &	operator() (unsigned short col, unsigned short row) noexcept

Detailed Description

template<typename Valtype, const unsigned short nCols, const unsigned short nRows>
class spat::Matrix< Valtype, nCols, nRows >

Matrix template for arbitrary dimensions and value type.

For special matrix types like square matrices, special derived matrix types are provided.

---

The documentation for this class was generated from the following files:

• C:/Trend/Development/Trax3/Code/spat/Frame.h
• C:/Trend/Development/Trax3/Code/spat/Matrix.h
