trax::ptreesupport::PTreeReader Class Reference

Base class for XML readers based on ptree. More...

#include <C:/Trend/Development/Trax3/Code/trax/collections/support/CollectionSupportXML.h>

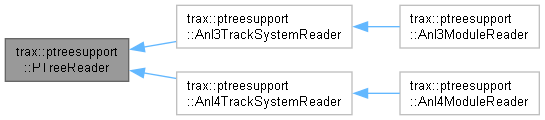

Inheritance diagram for trax::ptreesupport::PTreeReader:

Public Types
using	CurveReaderFunction = std::unique_ptr<Curve> (*)( const boost::property_tree::ptree& pt )
using	TwistReaderFunction = std::unique_ptr<RoadwayTwist> (*)( const boost::property_tree::ptree& pt )

Public Member Functions
dclspc	PTreeReader (const char *pLocale=nullptr)
dclspc	PTreeReader (SocketRegistry &socketRegistry, const char *pLocale=nullptr)
	PTreeReader (const PTreeReader &)=delete
dclspc	PTreeReader (PTreeReader &&) noexcept
PTreeReader &	operator= (const PTreeReader &)=delete
PTreeReader &	operator= (PTreeReader &&) noexcept=delete
void dclspc	RegisterCurveReader (const std::string &typeName, CurveReaderFunction readerFunc)
void dclspc	UnregisterCurveReader (const std::string &typeName)
void dclspc	RegisterTwistReader (const std::string &typeName, TwistReaderFunction readerFunc)
void dclspc	UnregisterTwistReader (const std::string &typeName)
const char *	GetLocale () const
virtual std::shared_ptr< trax::TrackSystem >	ReadTrackSystem (const boost::property_tree::ptree &pt) const =0

Protected Member Functions
std::unique_ptr< Curve >	CreateCurve (const boost::property_tree::ptree &pt) const
std::unique_ptr< RoadwayTwist >	CreateTwist (const boost::property_tree::ptree &pt) const

Protected Attributes
SocketRegistry &	m_SocketRegistry

Detailed Description

Base class for XML readers based on ptree.

If curves or twists are not needed, they don't have to be registered with the reader; this prevents unnecessary coupling of all the elements the library provides and offers a method to extend the system with custom curves and twists.

Albeit this might seem to be better implemented in traxTrack, the reading can not be done for a single track. Plugs/Jacks and the track coupling as well as shared curves relate to whole systems of tracks. Hence we have it in traxTrackCollections.

---

The documentation for this class was generated from the following file:

• C:/Trend/Development/Trax3/Code/trax/collections/support/CollectionSupportXML.h
